Power Sliding Door Module: Locations

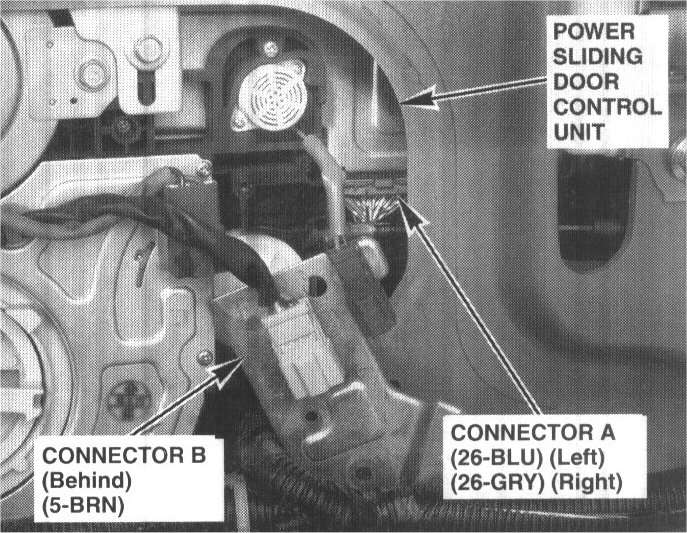

132. Behind Left Rear Side Trim Panel (Right Sim.) (EX, EX-L):



Relay And Control Unit Locations - Rear Side Trim:

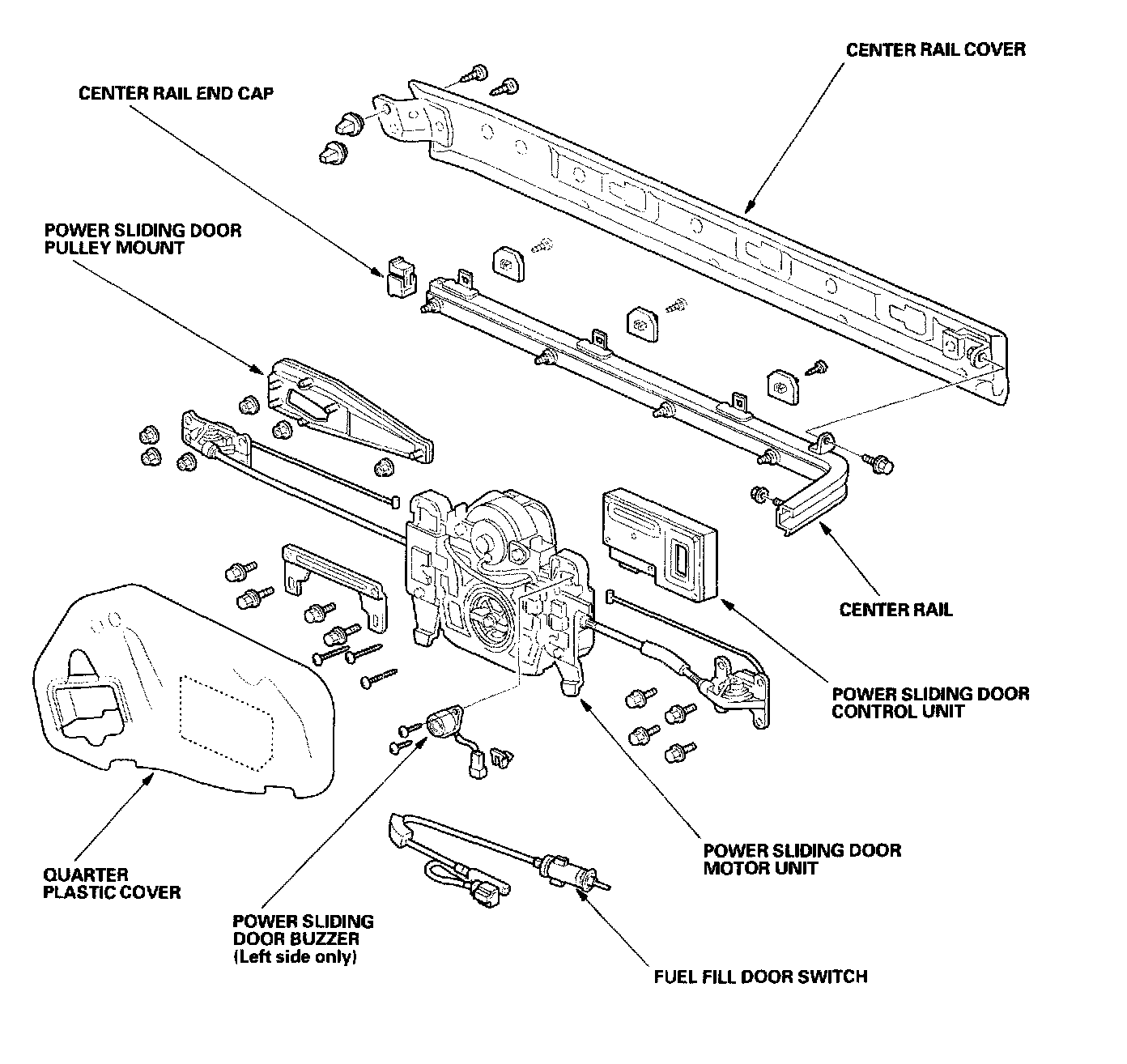

Power Sliding Doors Component Location Index:



Doors - Component Location Index - Sliding Door:
