Torque Specifications

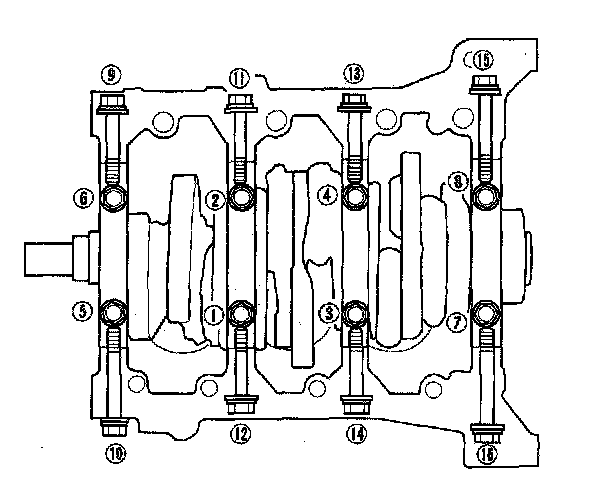

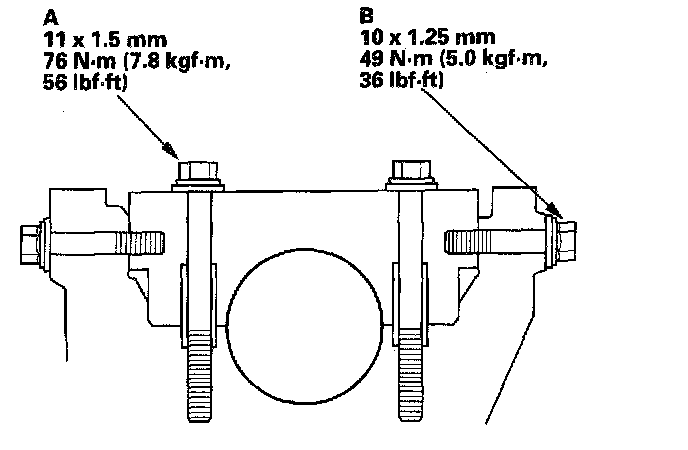

Main Bearing Cap Torque and Tightening Sequence

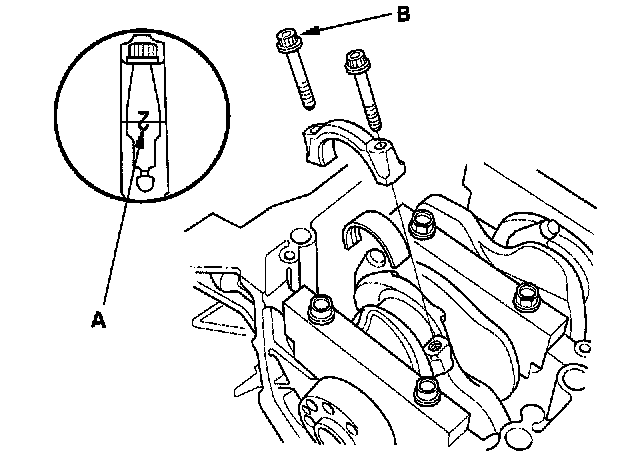

Connecting Rod Bolt 20 Nm (2.0 kgf.m, 14 ft. lbs.)
Crankshaft Pulley
Torque 245 Nm (25.0 kgf-m, 181 ft. lbs.)

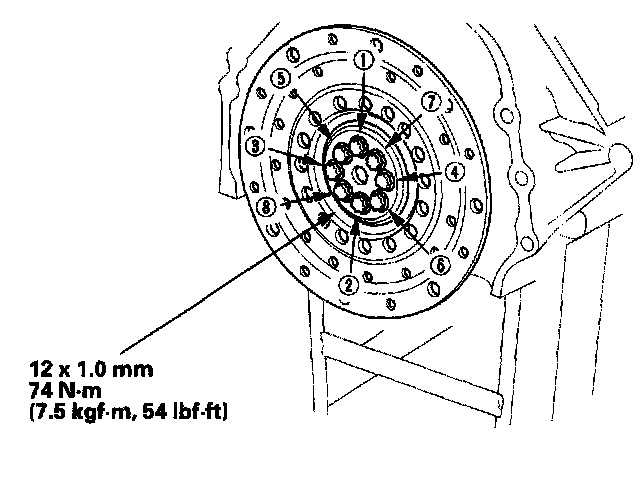

A/T Flex Plate
Main Bearing Cap Torque and Tightening Sequence
Connecting Rod Bolt 20 Nm (2.0 kgf.m, 14 ft. lbs.)
Crankshaft Pulley
Torque 245 Nm (25.0 kgf-m, 181 ft. lbs.)
A/T Flex Plate
