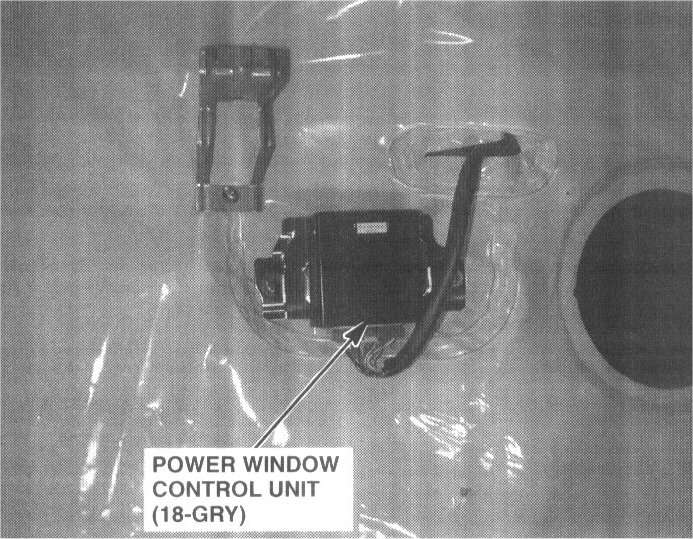

Power Window Control Module: Locations

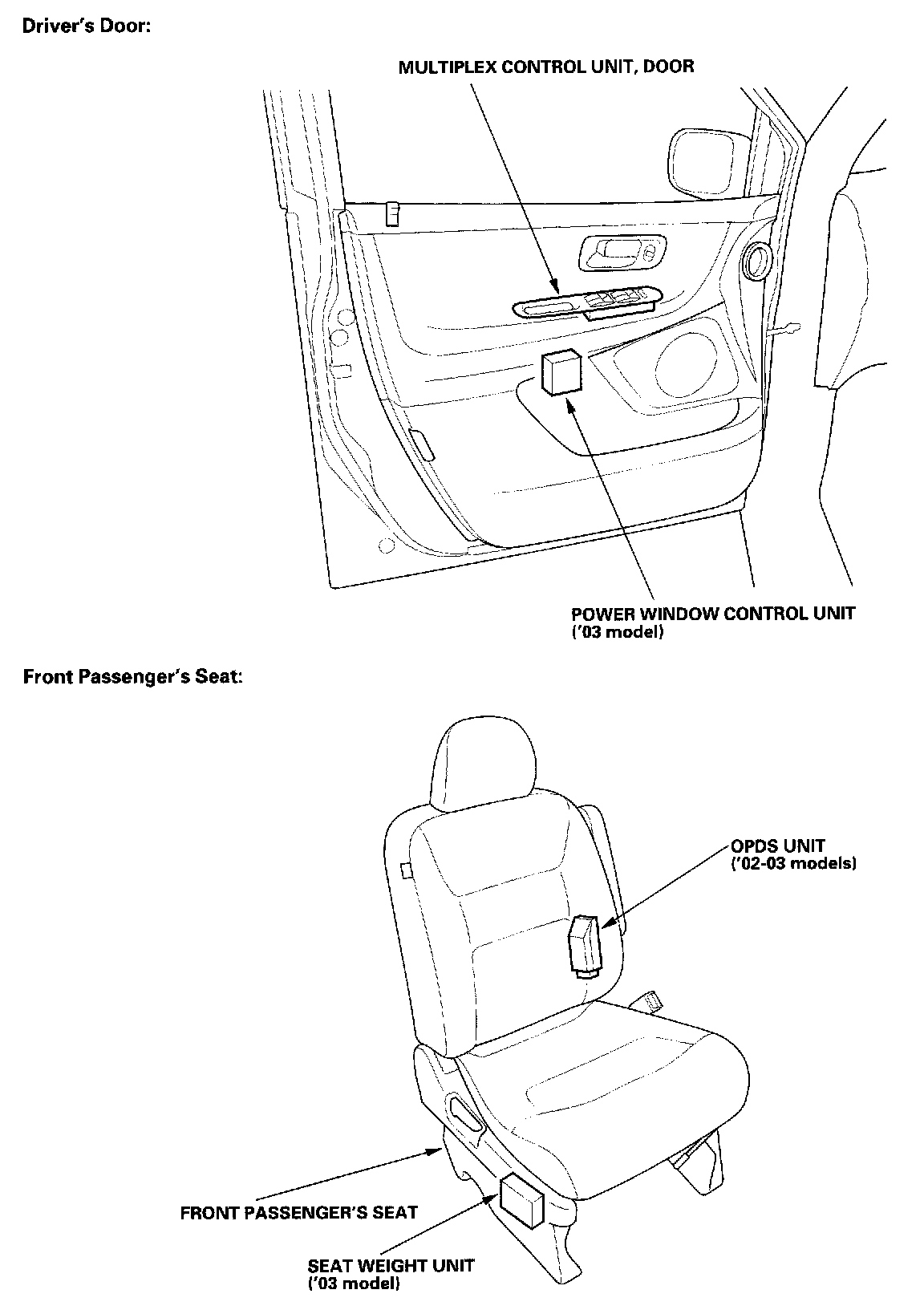

207. Driver's Door (03):



Relay And Control Unit Locations - Door And Seat:

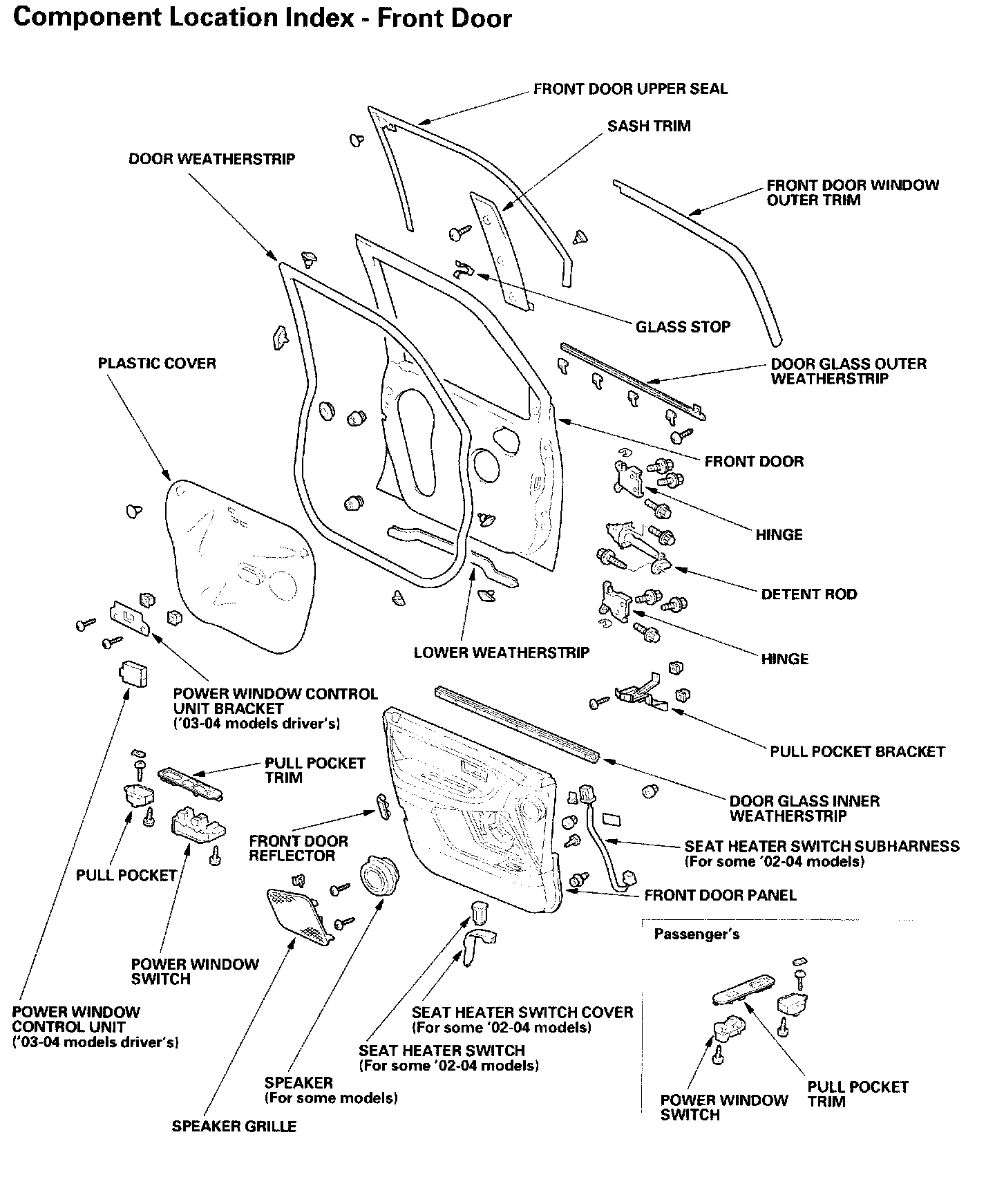

Doors - Component Location Index - Front Door:
