Power Mirror Replacement
- Lower the door glass fully.

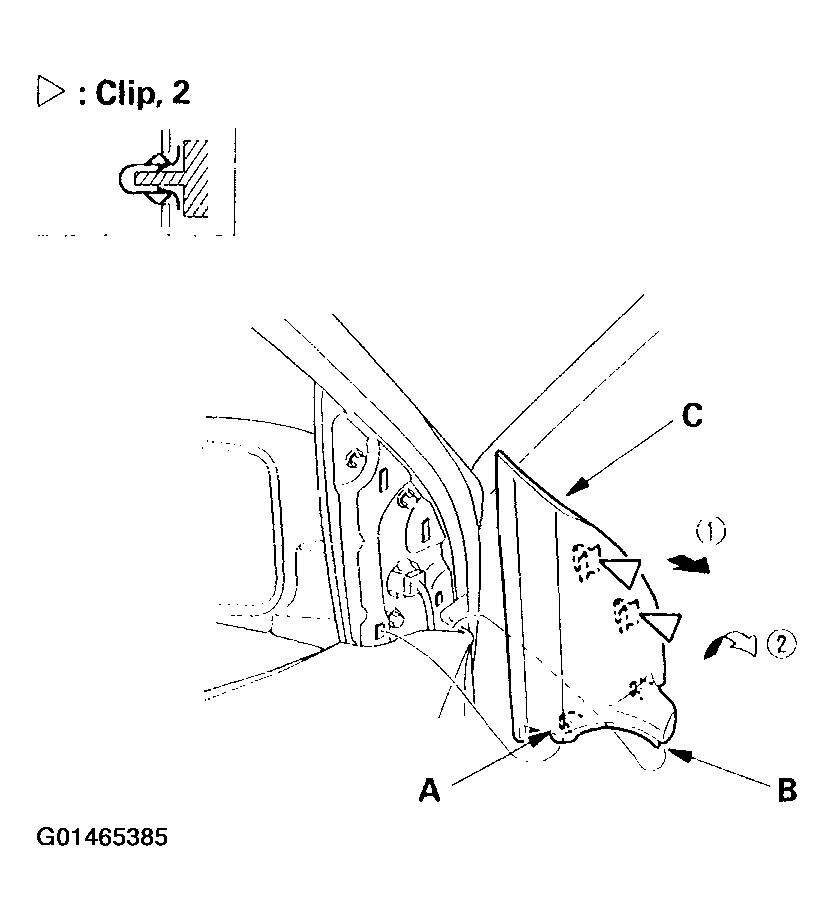

- Carefully detach the clips, and release the hooks (A, B), then pry out the mirror mount cover (C) by hand in the sequence shown.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

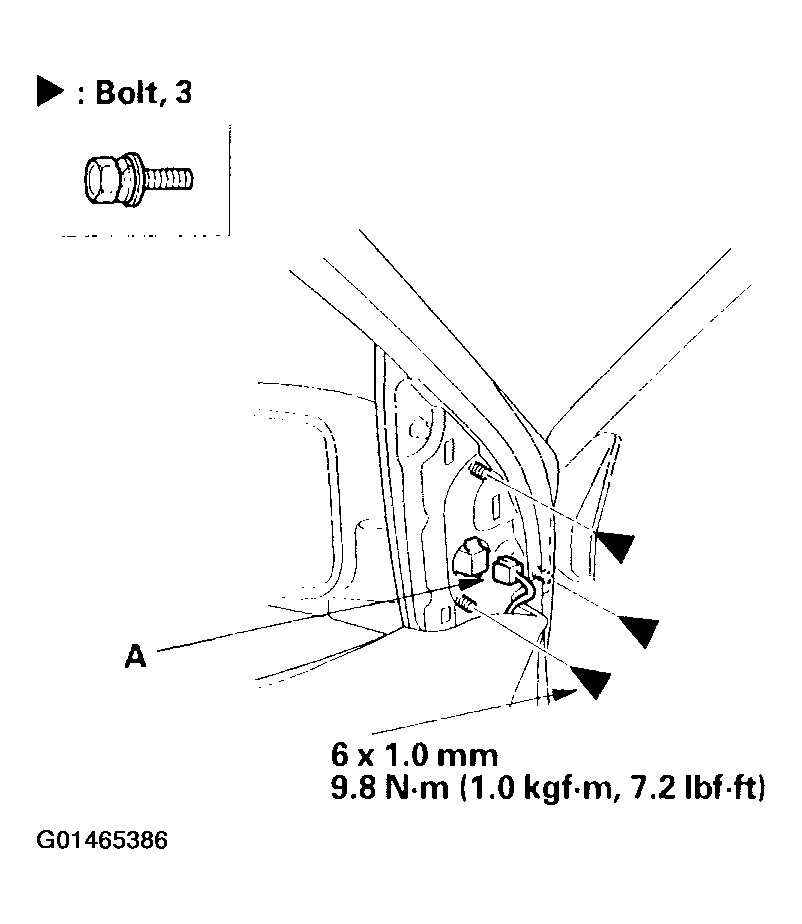

- Disconnect the connector (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- While holding the mirror, remove the bolts securing the mirror.

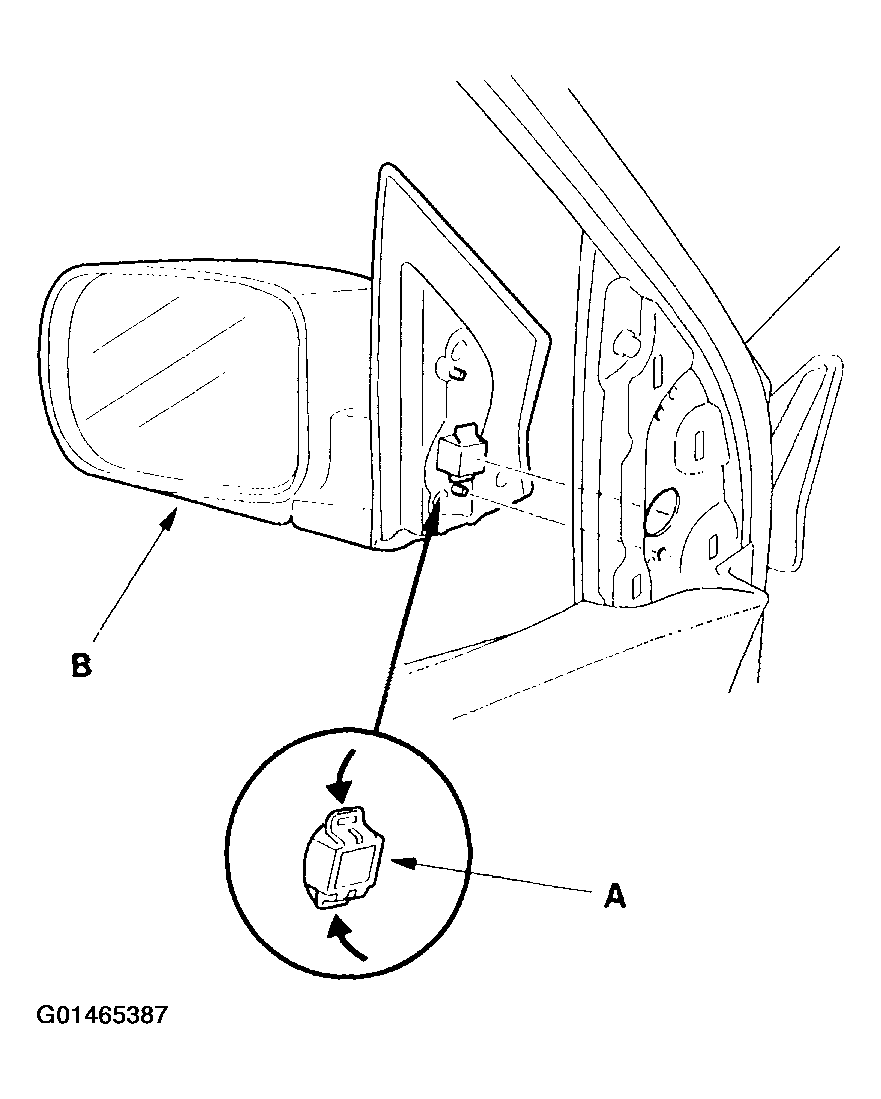

- While holding the mirror, push in on the connector clips (A), then push out to remove the mirror (B). Take care not to scratch the door.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the mirror in the reverse order of removal, and note these items:
- Make sure the connector is plugged in properly.
- Replace any damaged clips.
- Push the clips into place securely.
