Component Location

For component location index, see Fig 1.

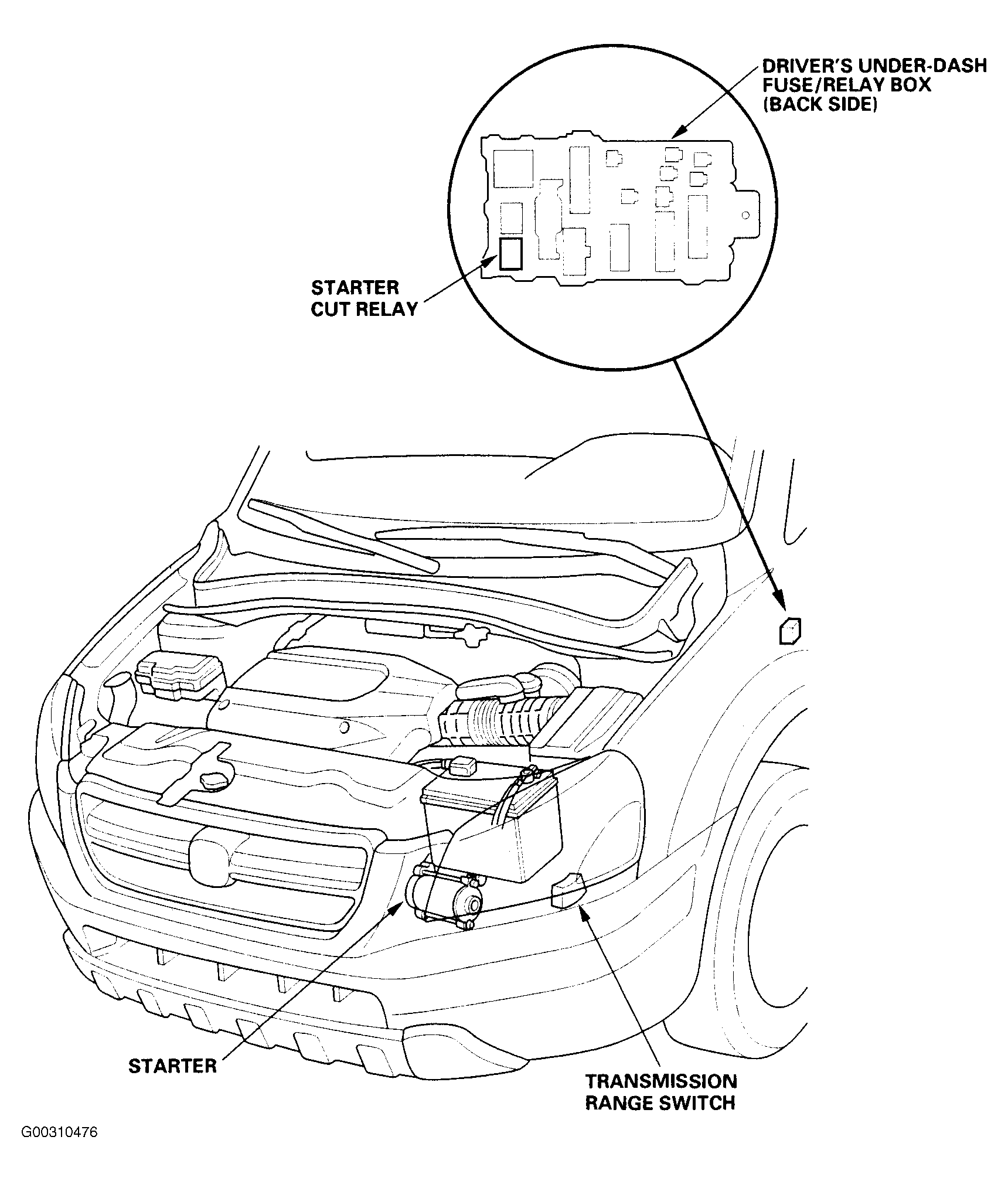

Fig 1: Identifying Component Locations
G00310476Courtesy of AMERICAN HONDA MOTOR CO., INC.
