Transfer Case
>>
Overhaul - Transfer Case
>>
Transfer Assembly
>>
Disassembly
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Transfer Assembly: Disassembly: Notes

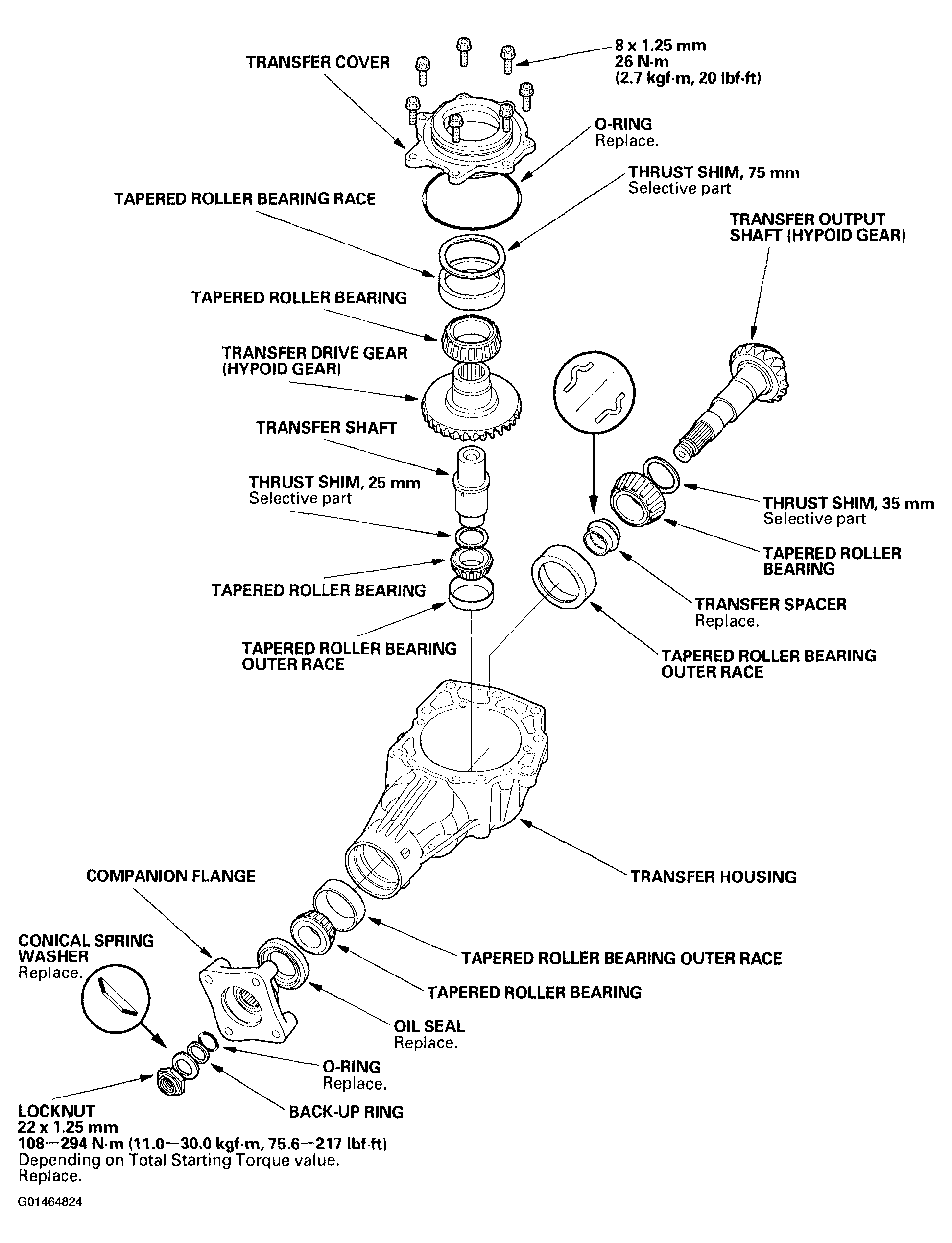

Fig 1: Exploded View Of Transfer Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
