Driver's Under-Dash Fuse/Relay Box

64. Under Left Side of Dash (Honda Accessory):



65. Under Left Side of Dash (Honda Accessory):



67. Under Left Side of Dash (LX: Honda Accessory):

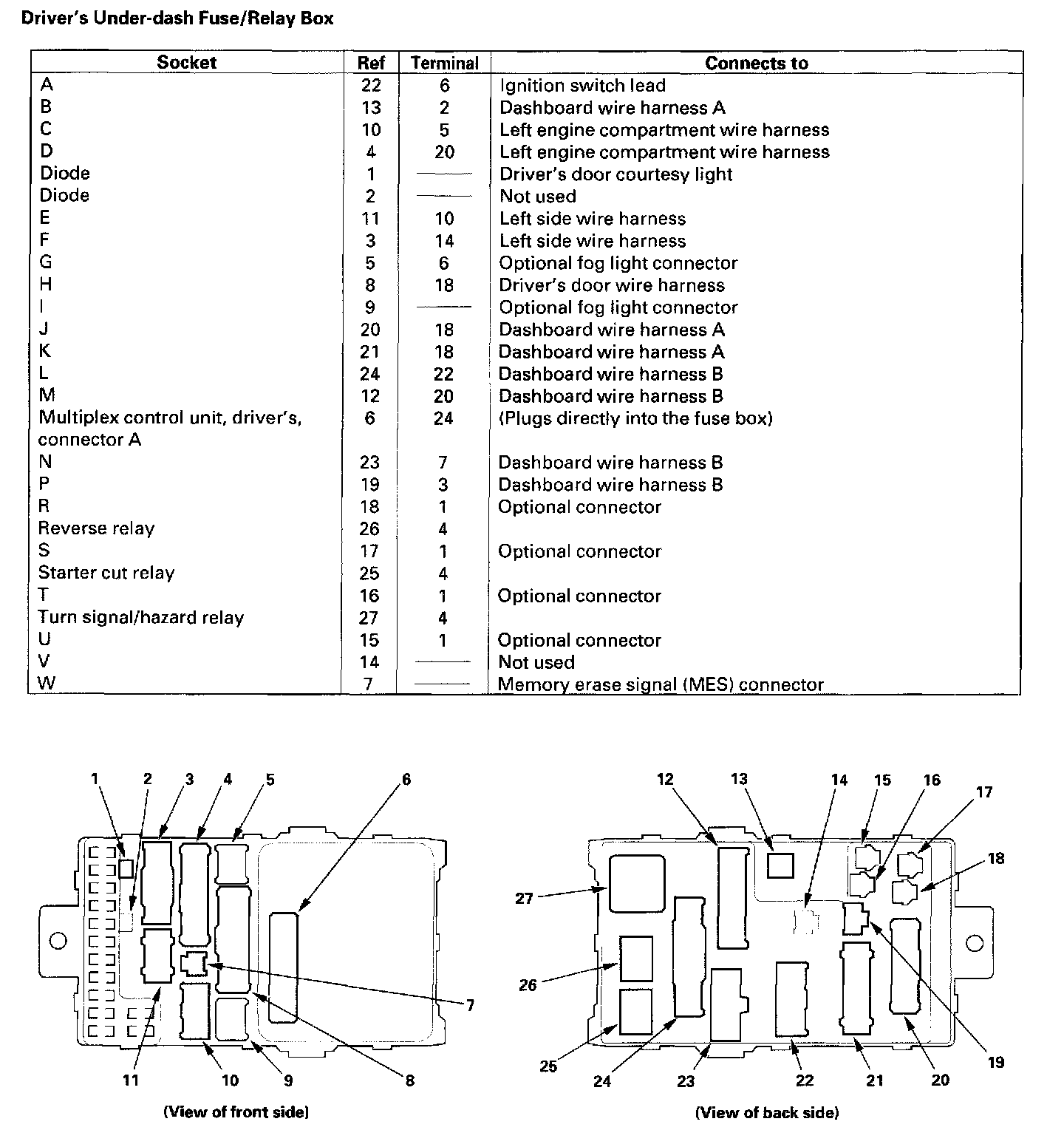

Driver's Under-Dash Fuse/Relay Box:
