Exploded View-Rear Cover

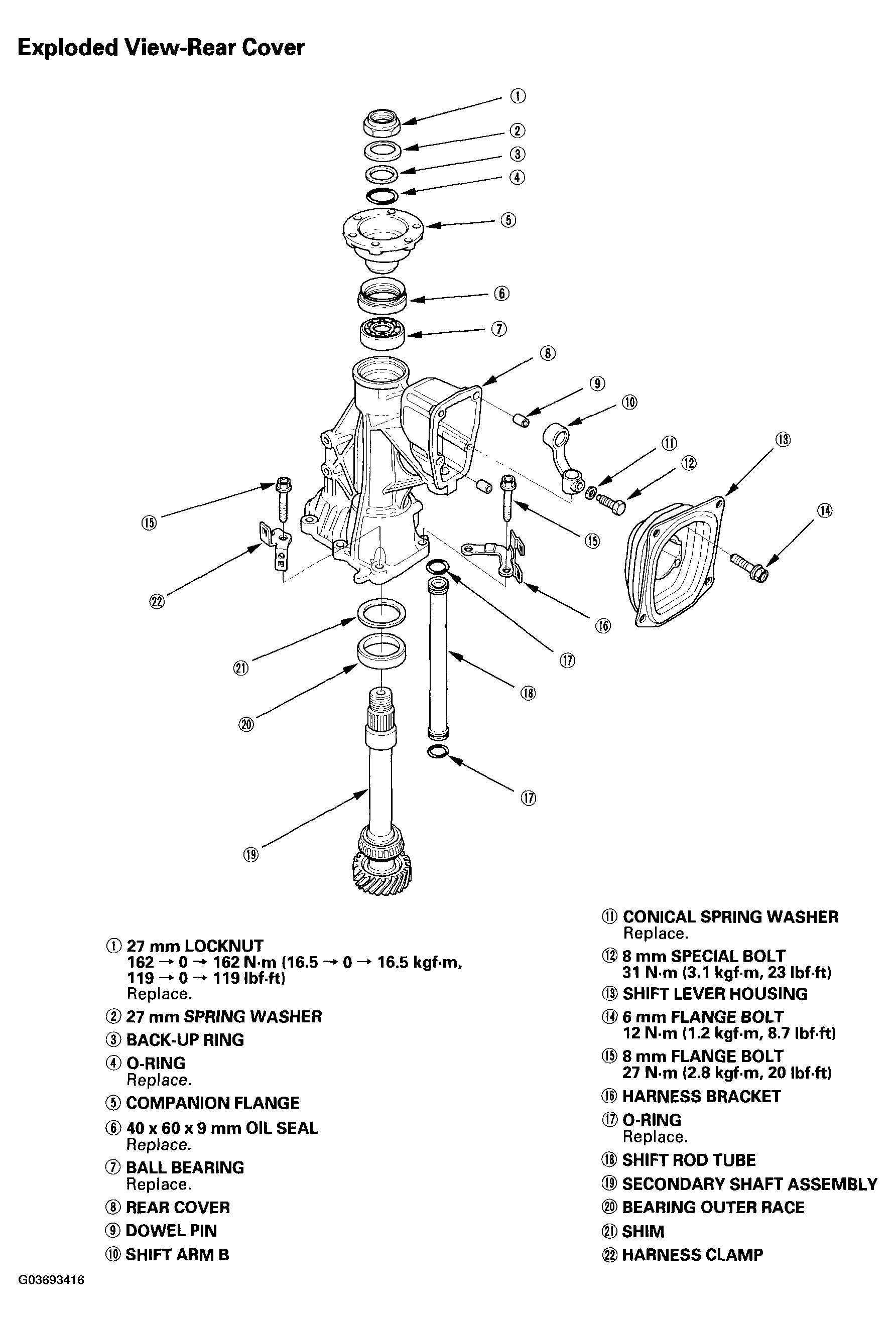

Fig 1: Exploded View-Rear Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
