VSA Modulator-Control Unit Removal and Installation: Removal

WARNING: This page is about a different car, the 2009 Honda S2000, 2008 Honda S2000, 2007 Honda S2000, and 2006 Honda S2000. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch to LOCK (0).
Pull down the lock (A) on the VSA modulator-control unit 47P connector (B), and remove the connector.

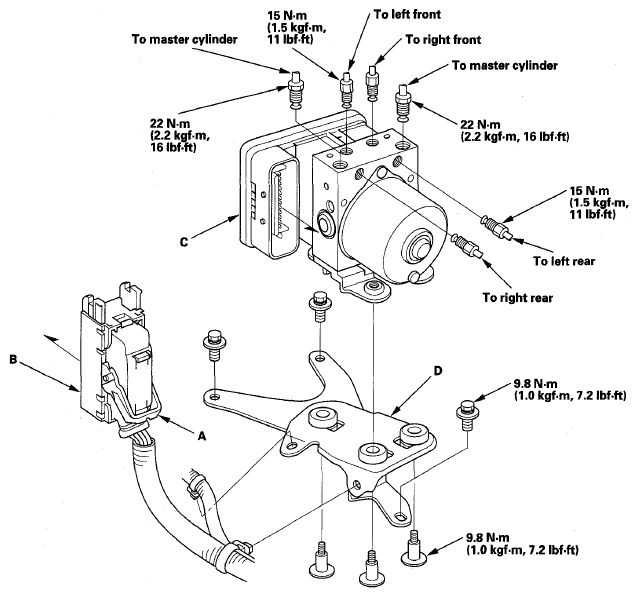

Fig 1: VSA Modulator-Control Unit Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the six brake lines from the VSA modulator-control unit (C).
Remove the VSA modulator-control unit with the bracket (D) from the body.
Remove the VSA modulator-control unit from the bracket.
