Power Door Lock Switch

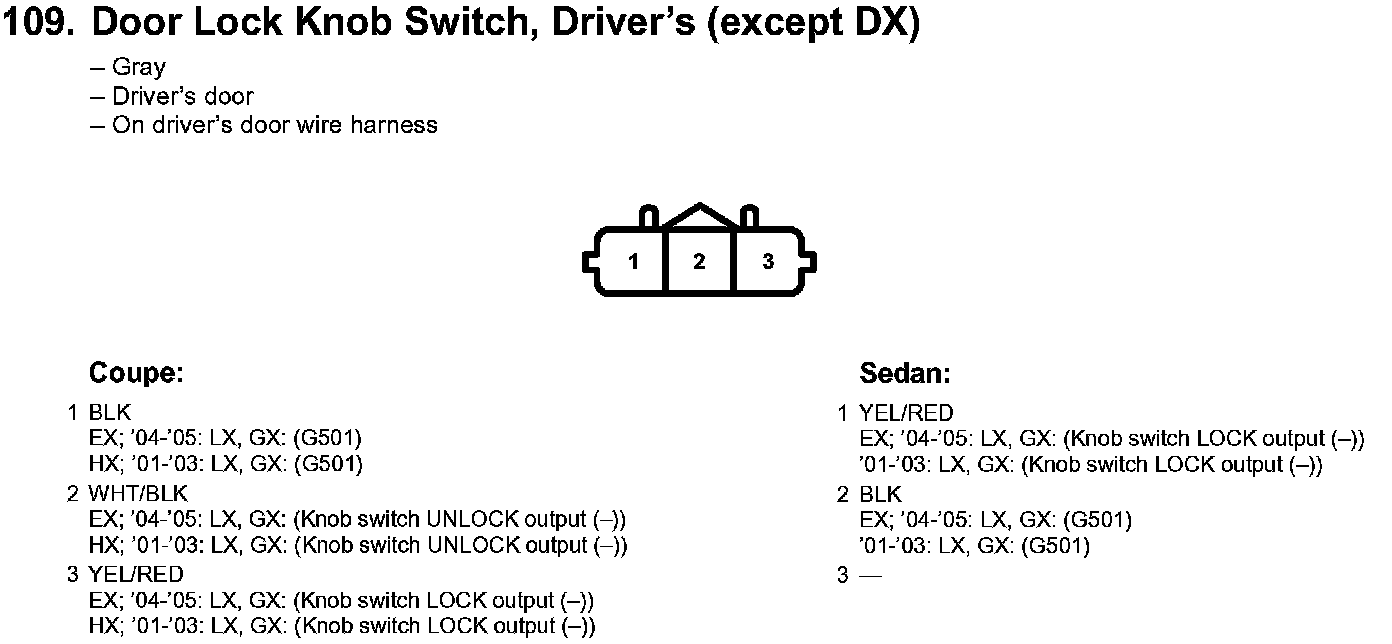

109. Door Lock Knob Switch, Driver's (except DX):

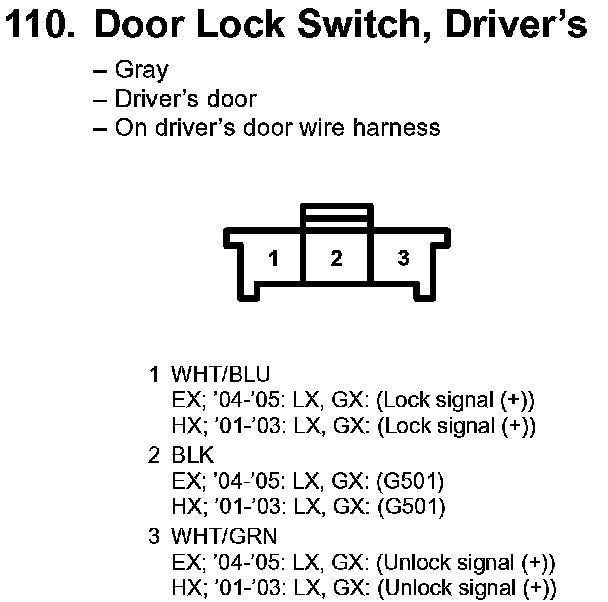

110. Door Lock Switch, Driver's:
