DTC P1361: CMP Sensor B Intermittent Interruption (2002-03 Models), DTC P1362: CMP Sensor B No Signal (2002-03 Models), DTC P0365: CMP Sensor B No Signal (2004-05 Models), DTC P0369: CMP Sensor B Intermittent Interruption (2004-05 Models)

NOTE:

Information marked with an asterisk (*) applies to '02-03 models.

Information marked with an asterisk (**) applies to '04-05 models.

Reset the ECM (see HOW TO RESET THE ECM ).
Start the engine.
Is DTC P1361* (P0365)** and/or P1362* (P0369)/** indicated?

YES: Go to step 3.

NO: Intermittent failure, system is OK at this time. Check for poor connections or loose terminals at the CMP sensor B (TDC sensor)and at the ECM.
Turn the ignition switch OFF.
Disconnect CMP sensor B 3P connector.
Turn the ignition switch ON (II)
Measure voltage between CMP sensor B 3P connector terminal No.3 and body ground.

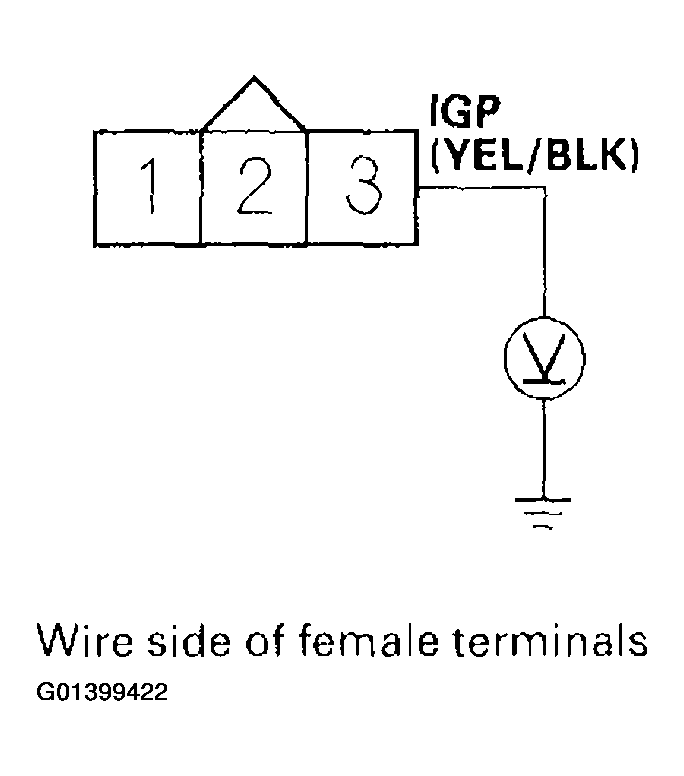

Fig 1: Measuring Voltage Between CMP Sensor B 3P Connector Terminal No.3 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES: Go to step 7.

NO: Repair open in the wire between PGM-FI main relay 1 and the CMP sensor B.
Measure voltage between CMP sensor B 3P connector terminal No.1 and body ground.

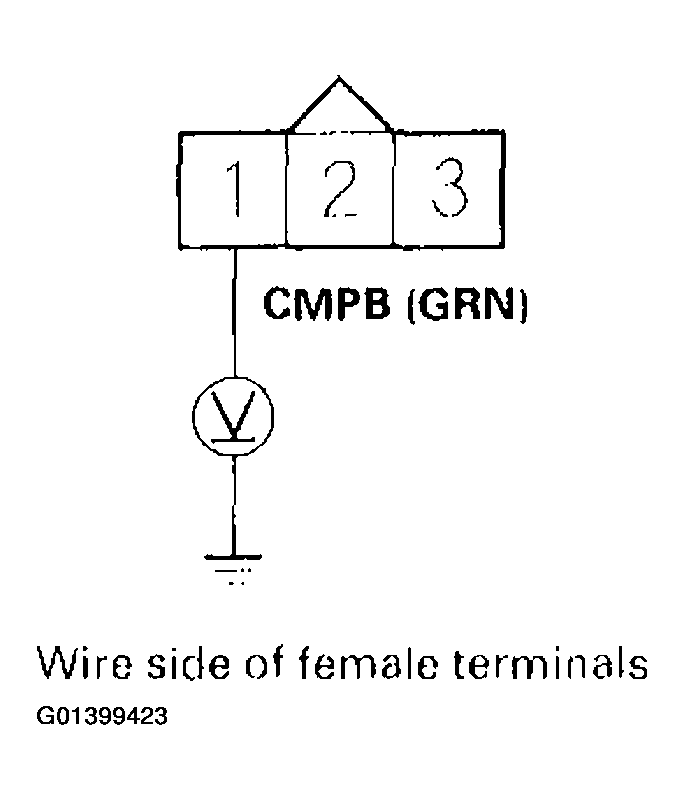

Fig 2: Measuring Voltage Between CMP Sensor B 3P Connector Terminal No.1 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there about 5 V?

YES: Go to step 8.

NO: Go to step 10.
Measure voltage between CMP sensor B 3P connector terminals No.2 and No.3

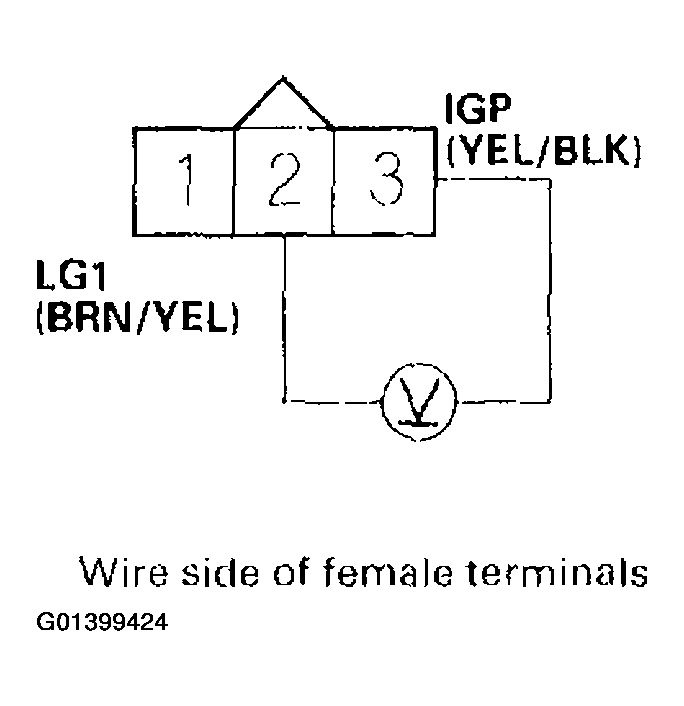

Fig 3: Measure Voltage Between CMP Sensor B 3P Connector Terminals No.2 And No.3
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES: Go to step 9.

NO: Repair open in the wire between CMP sensor B and G101.
Substitute a known-good CMP sensor B (see ECT SENSOR REPLACEMENT ) and recheck.
Is DTC P1361* (P0365)** and/or P1362* (P0369)** indicated?

YES: Update the ECM if it does not have the latest software, or substitute a known-good ECM, then recheck (see ECM UPDATING AND SUBSTITUTION FOR TESTING ). If the symptom/indication goes away with a known-good ECM, replace the original ECM.

NO: Replace the original CMP sensor B (see ECT SENSOR REPLACEMENT ).
Measure voltage between ECM connector terminal A26 and body ground.

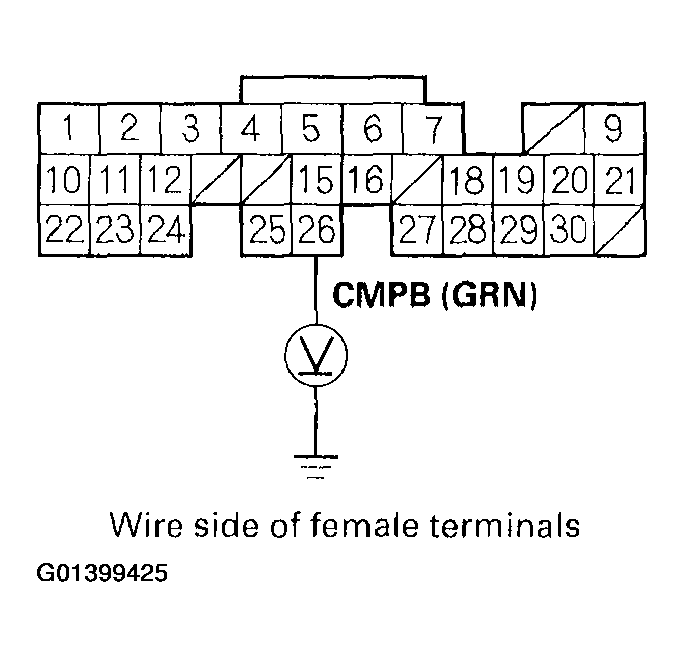

Fig 4: Measuring Voltage Between ECM Connector Terminal A26 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there about 5 V?

YES: Repair open in the wire between the ECM (A26) and CMP sensor B.

NO: Go to step 11.
Turn the ignition switch OFF.
Disconnect ECM connector A (31P)
Check for continuity between ECM connector terminal A26 and body ground.

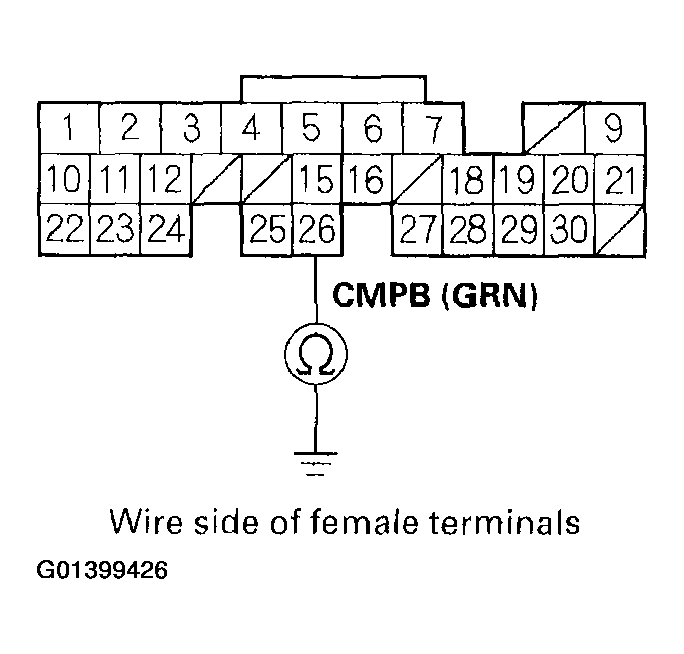

Fig 5: Checking For Continuity Between ECM Connector Terminal A26 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES: Repair short in the wire between the ECM (A26) and the CMP sensor B.

NO: Update the ECM if it does not have the latest software, or substitute a known-good ECM, then recheck (see ECM UPDATING AND SUBSTITUTION FOR TESTING ). If the symptom/indication goes away with a known-good ECM, replace the original ECM.
