Impact Sensor

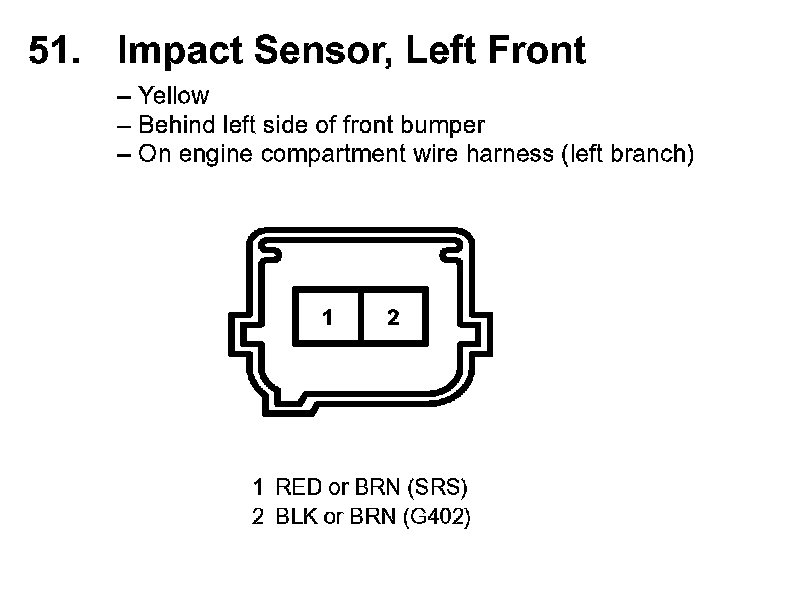

51. Impact Sensor, Left Front:

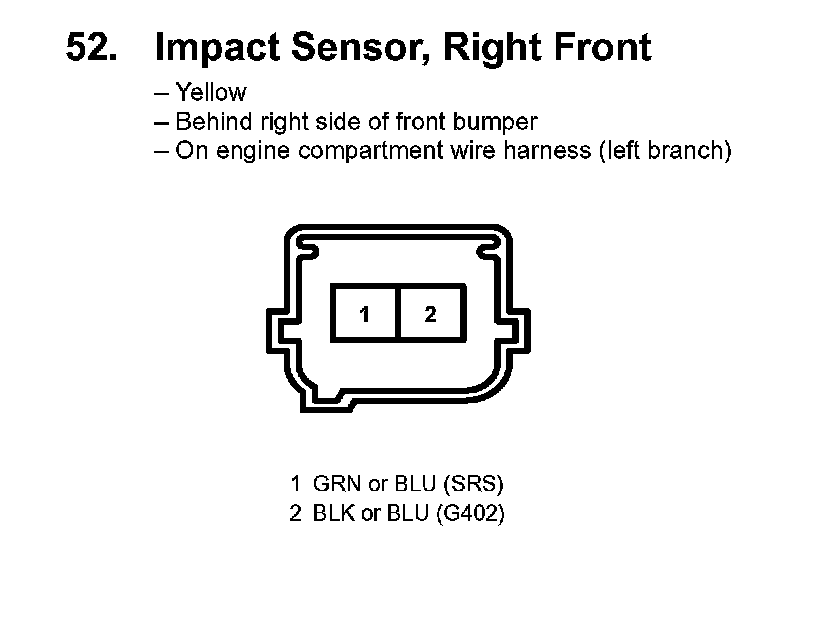

52. Impact Sensor, Right Front:



65. Side Impact Sensor, Driver's (EX: Side Airbag):

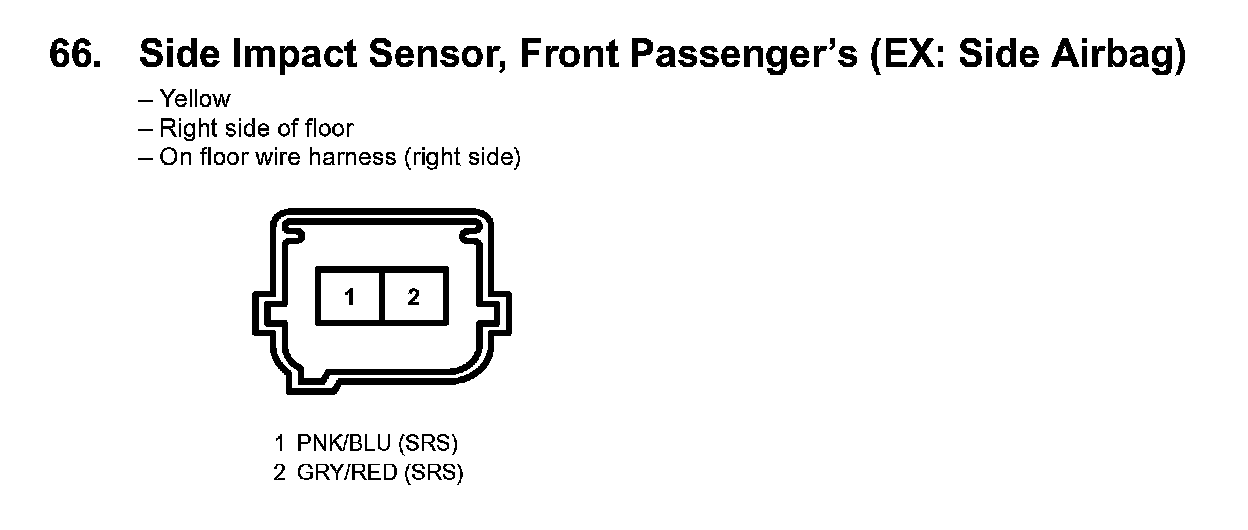

66. Side Impact Sensor, Front Passenger's (EX: Side Airbag):
