For Some Models

  1. Unzip the armrest cover (A), and pull back the armrest cover.

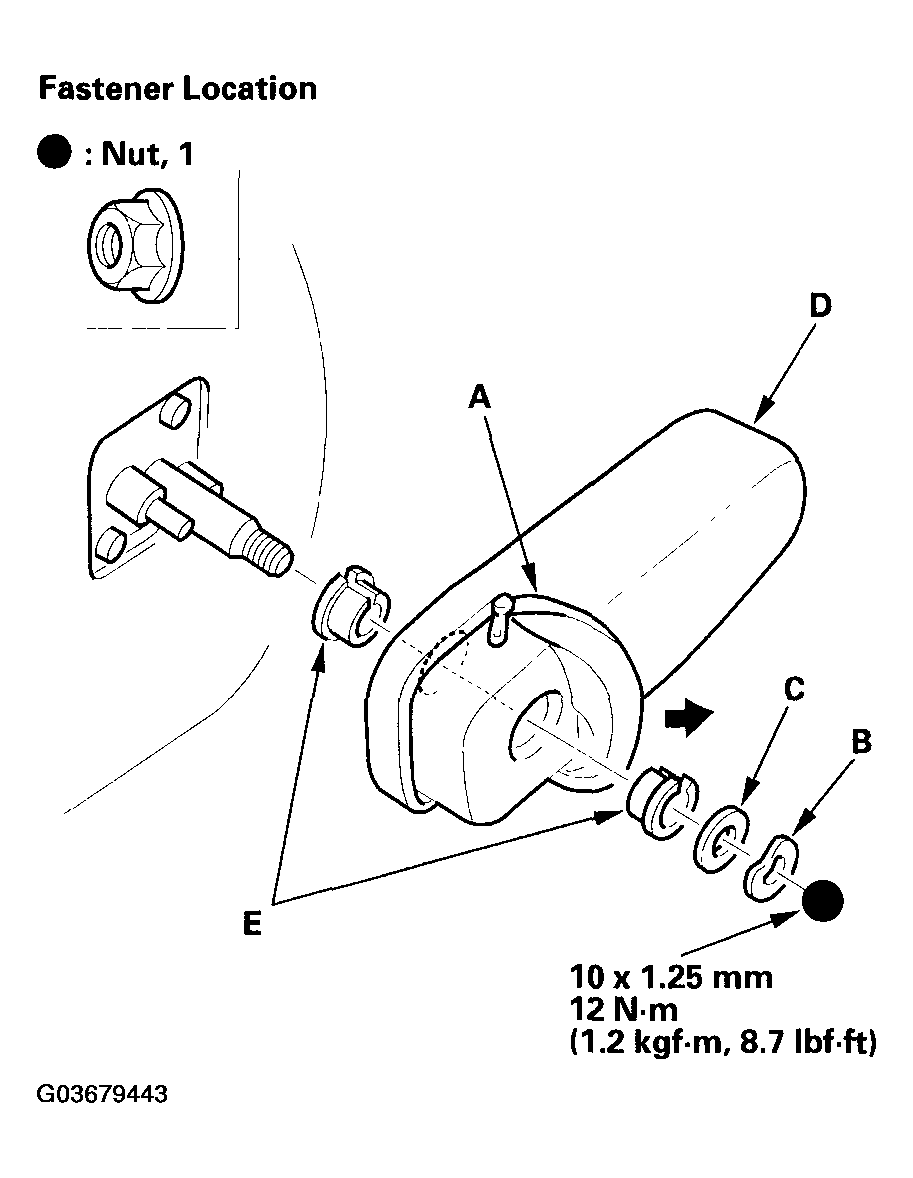

    Fig 1: Removing Armrest Cover And Torque Specifications
    G03679443Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the nut, the wave washer (B), and the washer (C), then remove the armrest (D). If necessary, remove the bushings (E) from the armrest.
  3. Remove the bolts, then remove the armrest bracket (A).

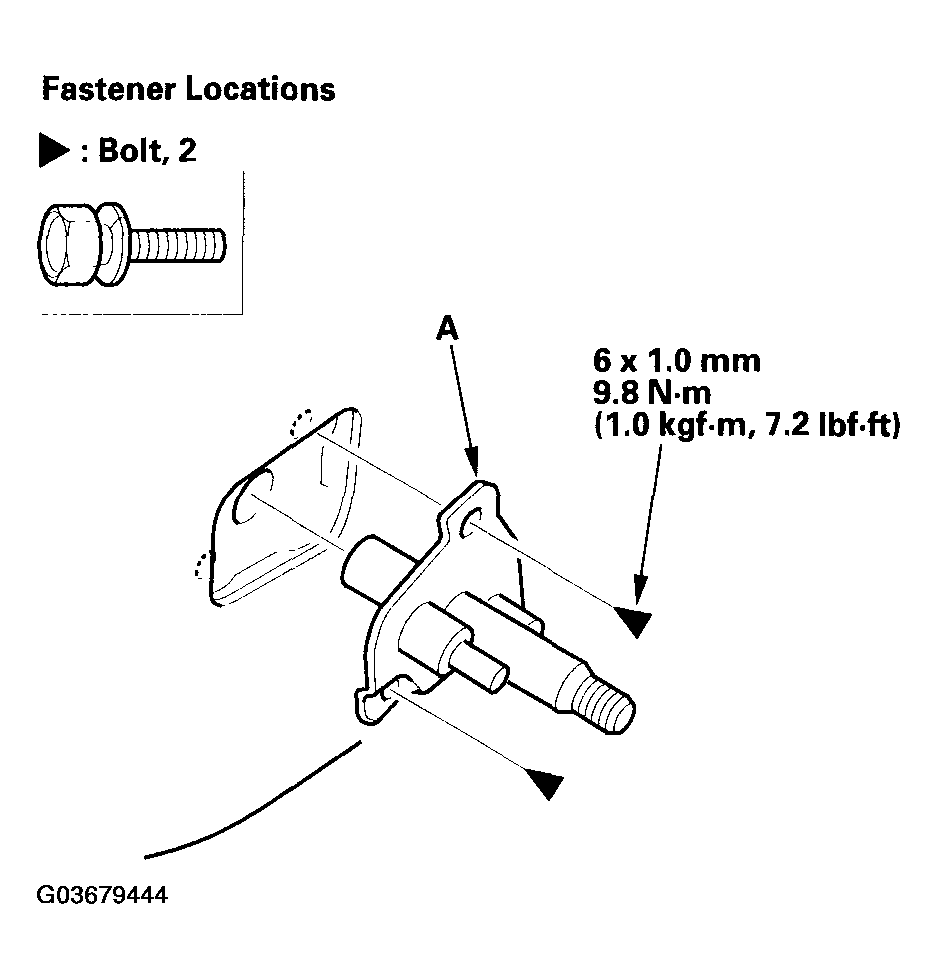

    Fig 2: Removing Armrest Bracket (03 Model) And Torque Specifications
    G03679444Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the armrest in the reverse order of removal, and note these items:
    • Apply liquid thread lock to the threads on the armrest bracket.
    • Install the armrest cover so that when the zipper is closed, the zipper pull is under the armrest.
