ECM/PCM Connector End View

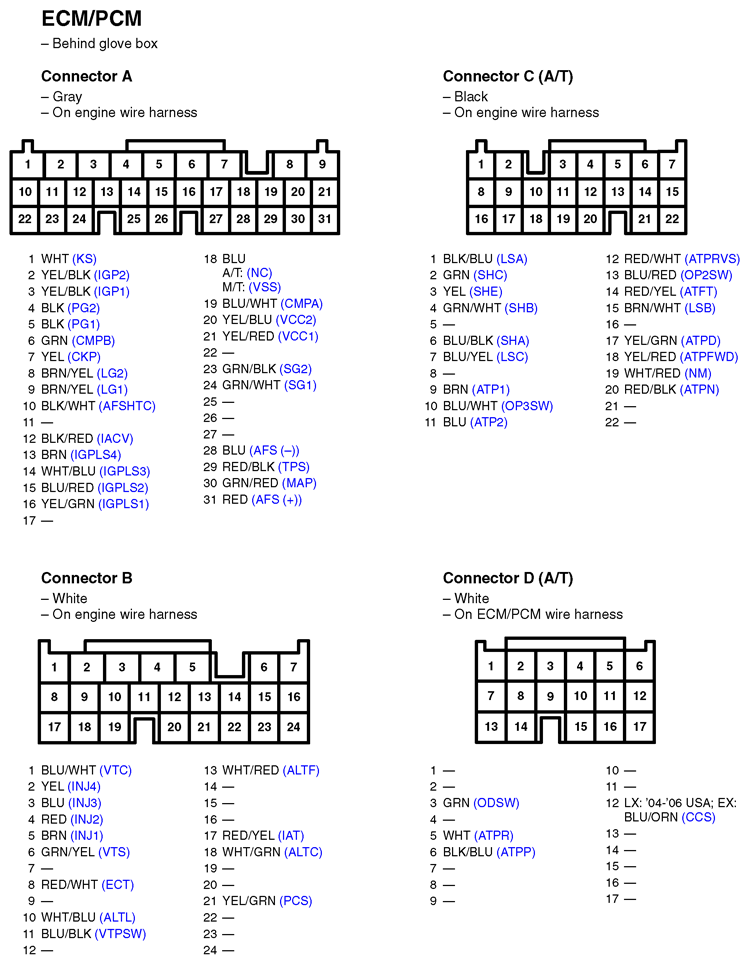

Fig 1: ECM/PCM Connector End View (1 Of 2)
G11250017Courtesy of AMERICAN HONDA MOTOR CO., INC.

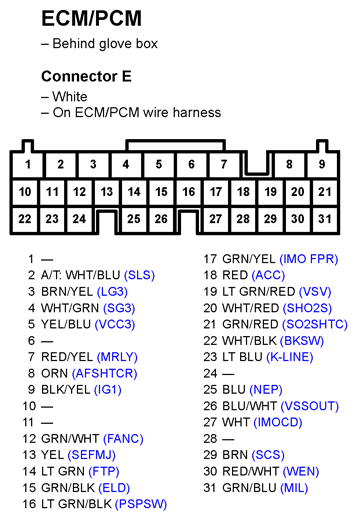

Fig 2: ECM/PCM Connector End View (2 Of 2)
G11250018Courtesy of AMERICAN HONDA MOTOR CO., INC.
