Power Window Master Switch Connector End View

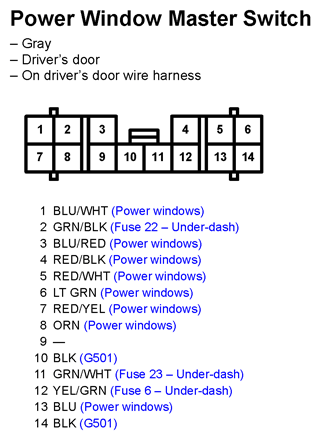

Fig 1: Power Window Master Switch Connector End View
G11249995Courtesy of AMERICAN HONDA MOTOR CO., INC.
