Back-up Sensor Beeper Assembly (Honda Accessory) Connector End View

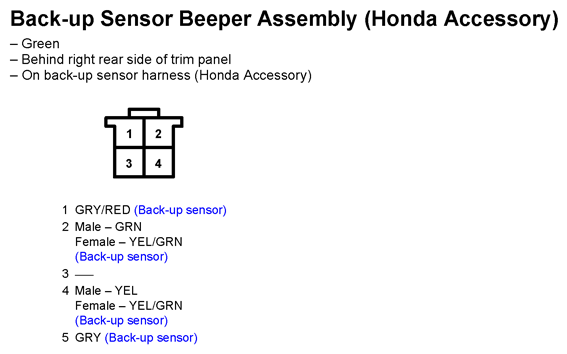

Fig 1: Back-up Sensor Beeper Assembly (Honda Accessory) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
