Outside Air Temperature Sensor (EX, EX-L) Connector End View

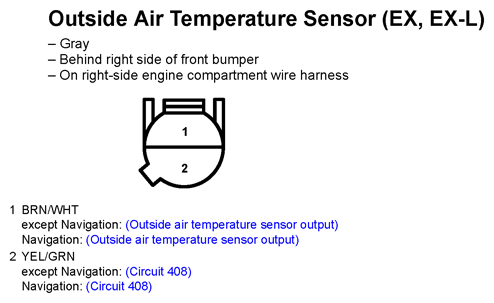

Fig 1: Outside Air Temperature Sensor (EX, EX-L) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
