Washer Motor, Rear Window Connector End View

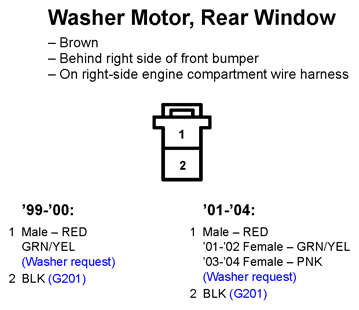

Fig 1: Washer Motor, Rear Window Connector End View
G11250701Courtesy of AMERICAN HONDA MOTOR CO., INC.
