Component Location Index (Entry Light Control System)

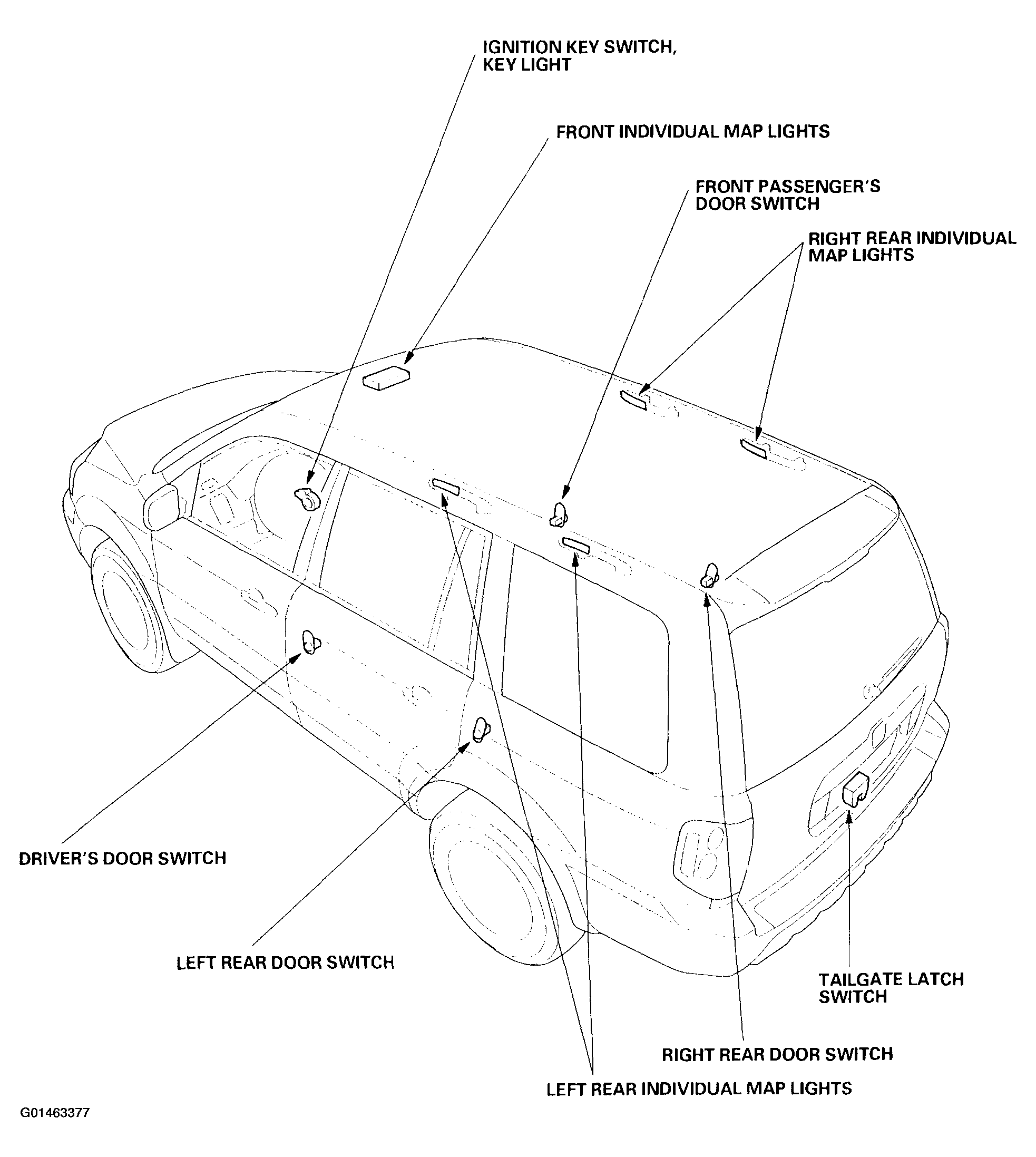

Fig 1: Locating Entry Light Control System Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
