Keyless Receiver Unit Input Test

Remove the glove box and glove box cover (see GLOVE BOX REMOVAL/INSTALLATION ).
Disconnect the 7P connector (A) from the keyless receiver unit (B).

Fig 1: Disconnecting The 7P Connector From The Keyless Receiver Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals are OK, go to step 4.
With the connector still disconnected, make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, replace the keyless receiver unit.

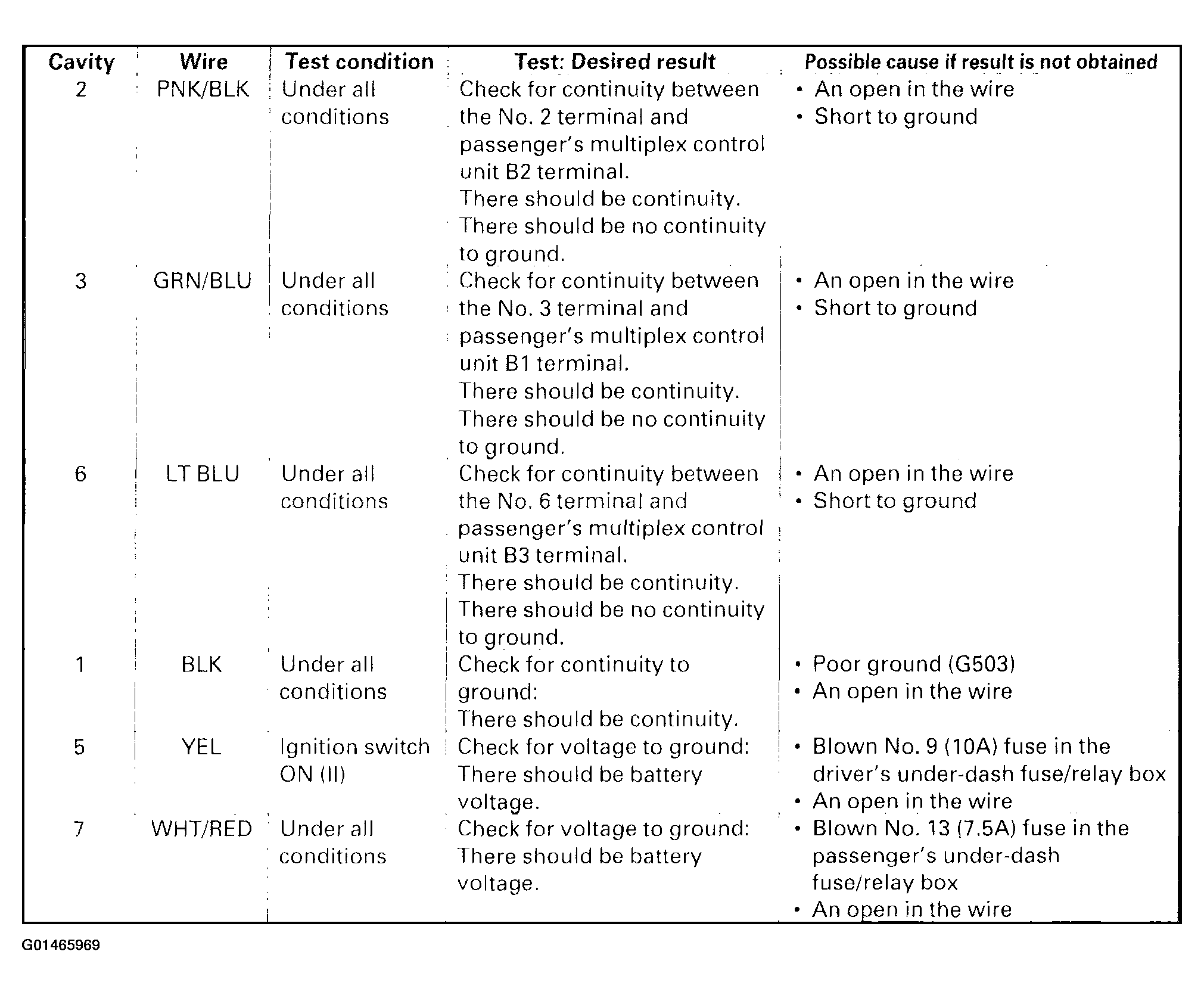

  Fig 2: Keyless Receiver Unit Input Test Table
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
