Shift Lock Solenoid Replacement

SRS components are located in this area. Review the SRS components locations, precautions and procedures in 2003 AIR BAG RESTRAINT SYSTEMS or 2004 AIR BAG RESTRAINT SYSTEMS before performing repairs or service.

1. Remove the shift lever assembly (see SHIFT LEVER REMOVAL ).
2. Remove the screws (A) securing the shift lock solenoid (B), then remove the shift lock solenoid.

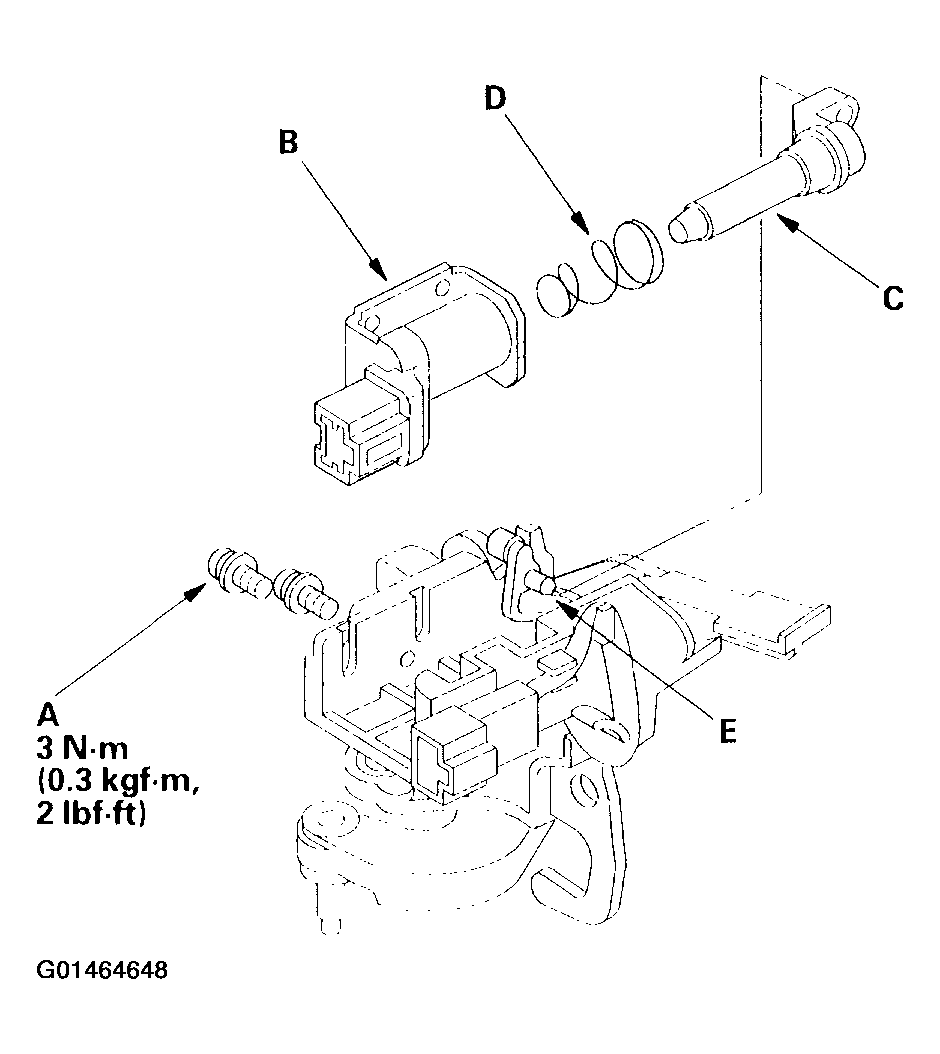

   Fig 1: Removing The Shift Lock Solenoid

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the shift lock solenoid plunger (C) and plunger spring (D) in the new shift lock solenoid.
4. Install the shift lock solenoid by aligning the joint of the shift lock solenoid with the tip of the shift lock extension (E), then tighten the screws.
5. Install the shift lever assembly (see SHIFT LEVER INSTALLATION ).
