Lighting and Horns: Locations

Exterior Lights Component Location Index:

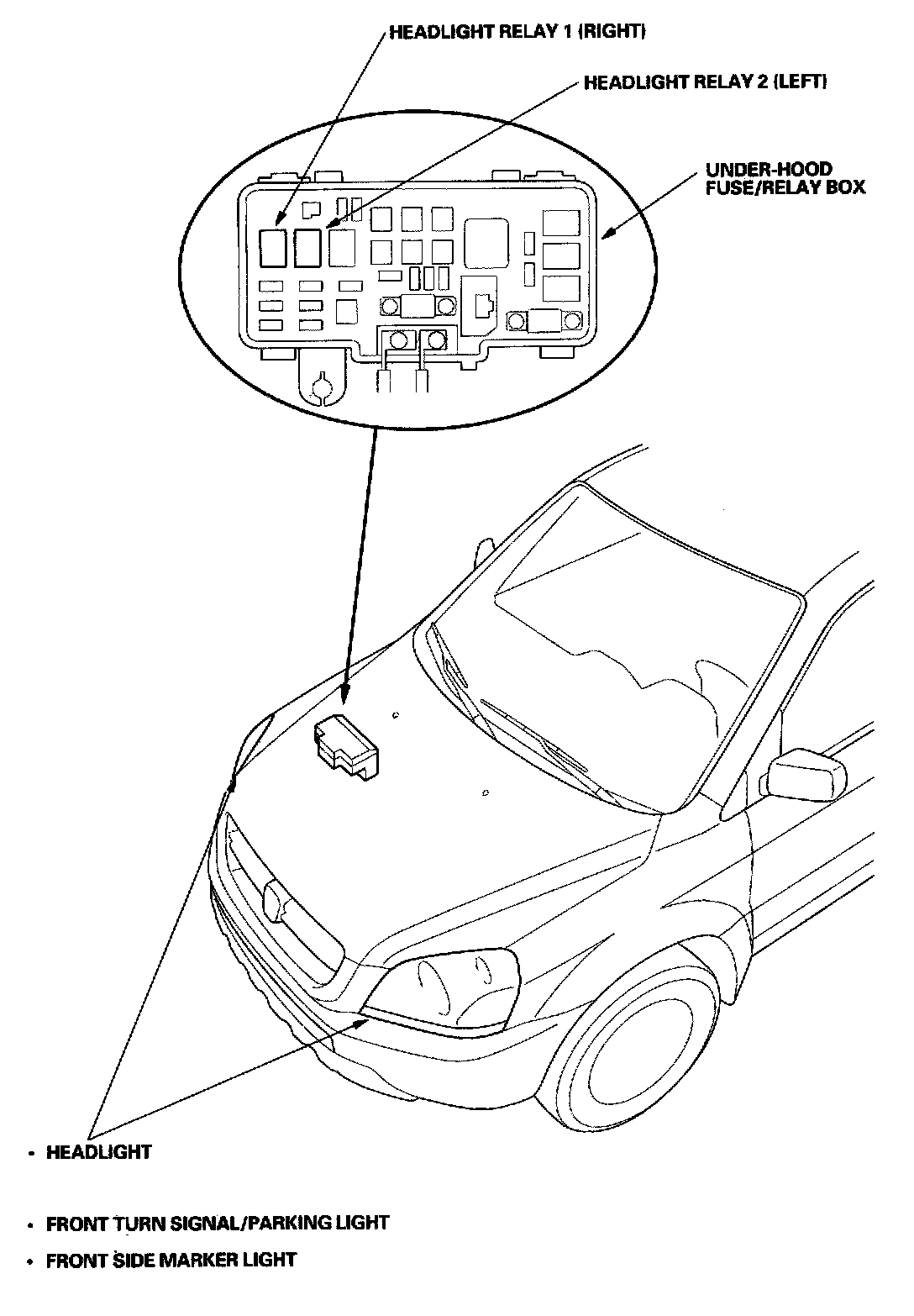

Exterior Lights Component Location Index:

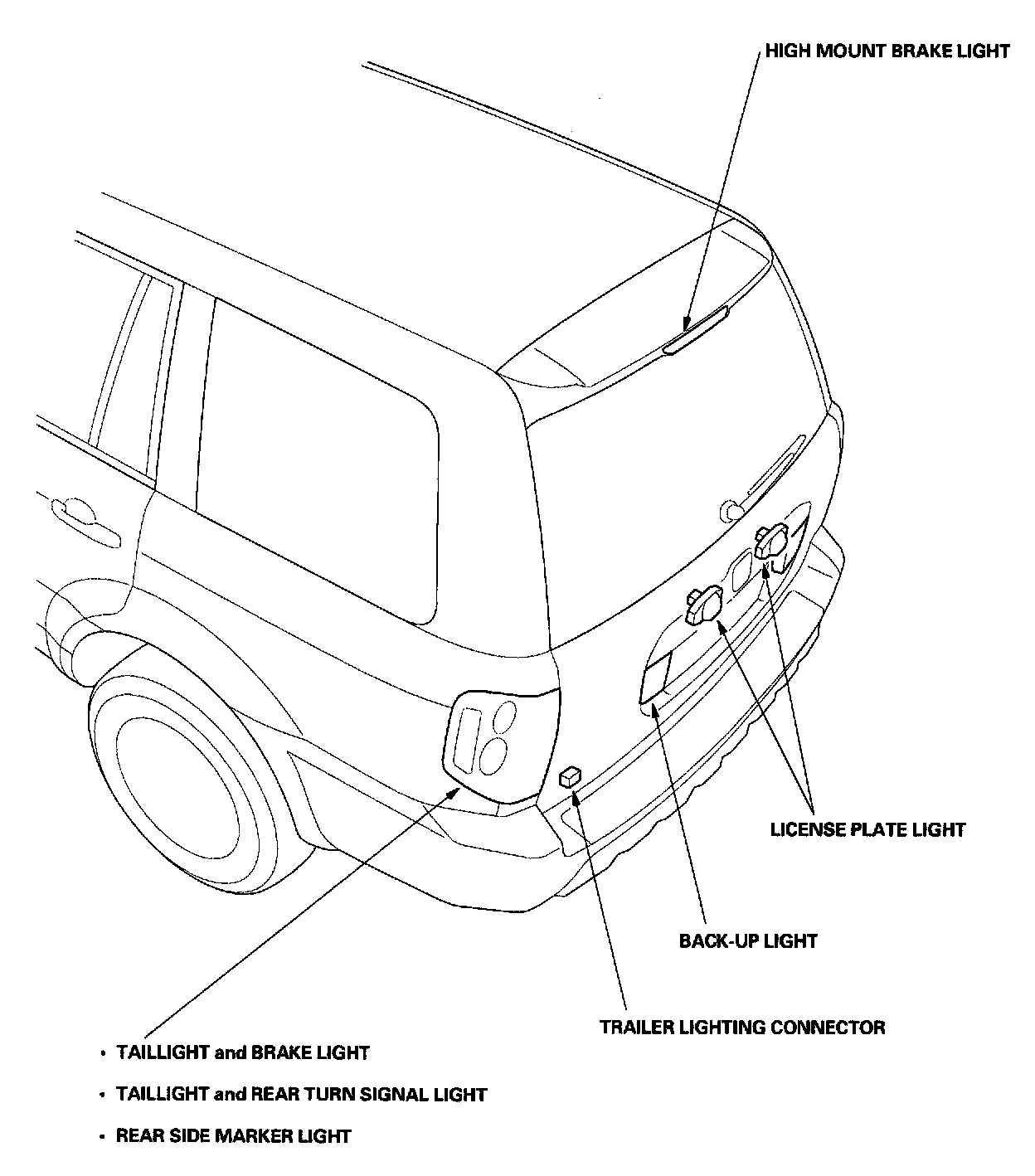

Exterior Lights Component Location Index:
