Air Bag Control Module: Locations

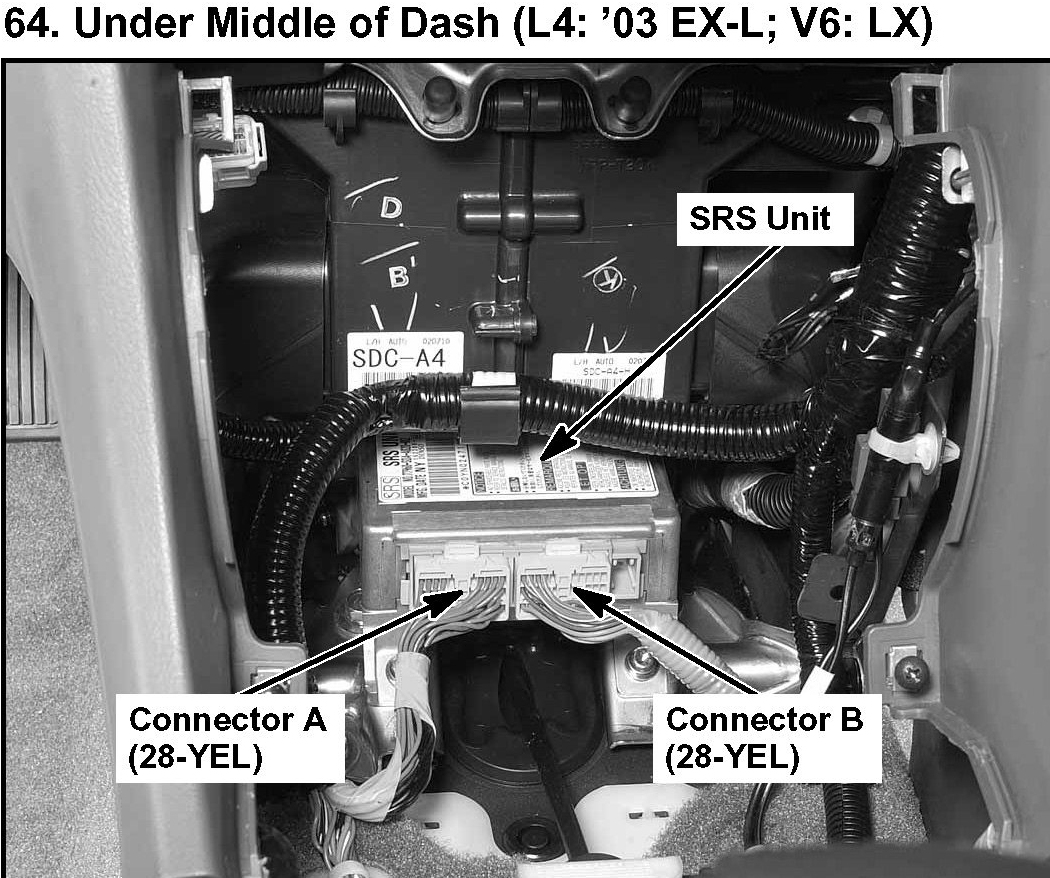

64. Under Middle Of Dash (L4:'03 EX-L; V6: LX):

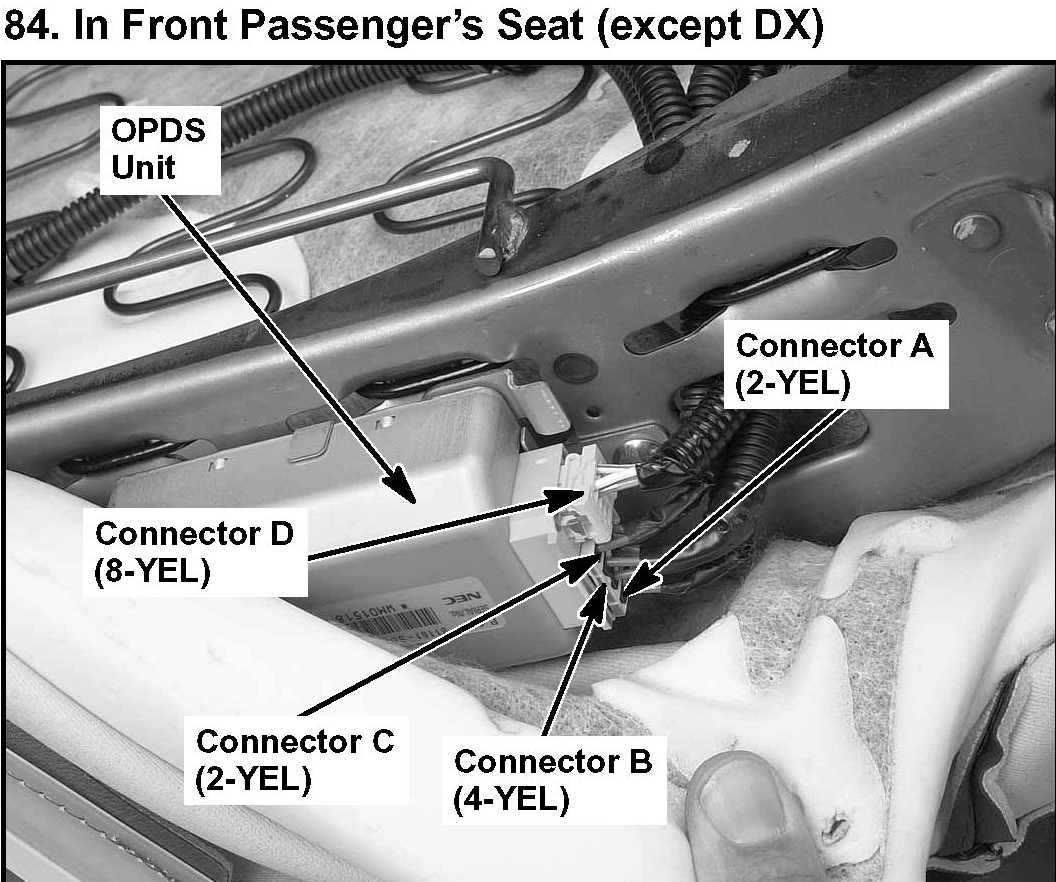

84. In Front Passenger's Seat (Except DX):

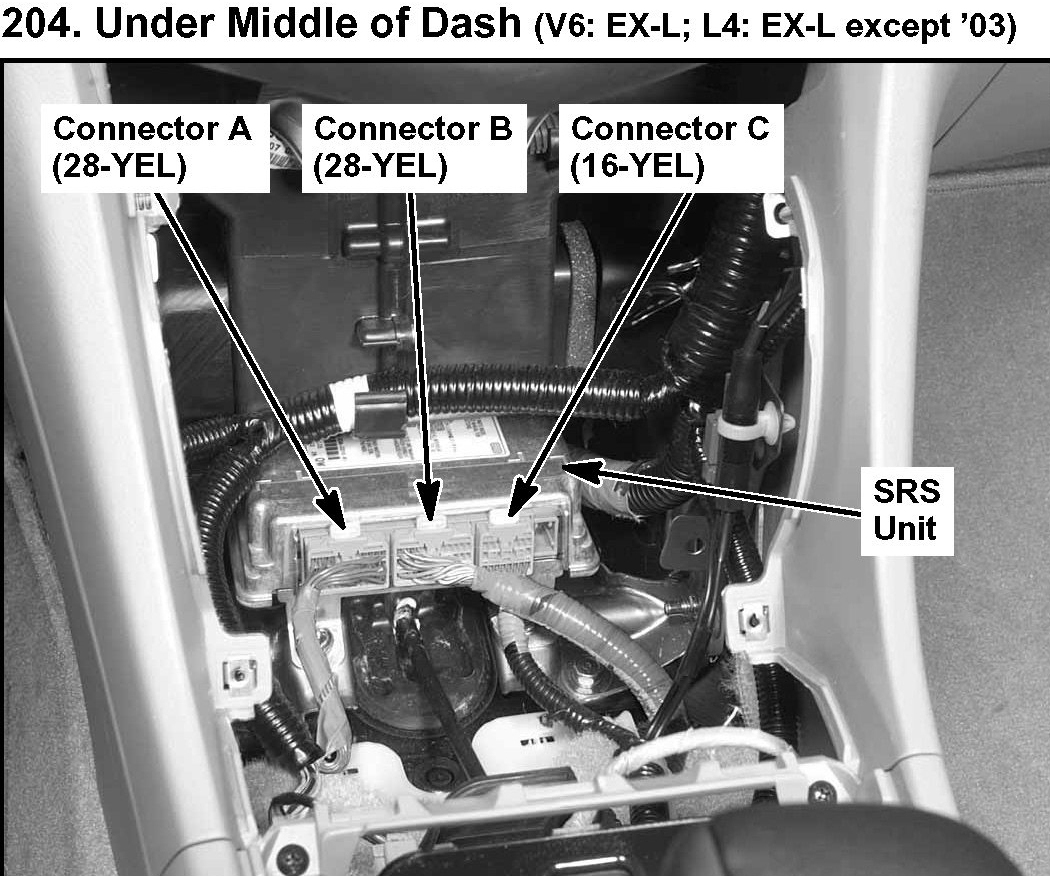

204. Under Middle Of Dash (V6: EX-L; L4: EX-L Except '03):

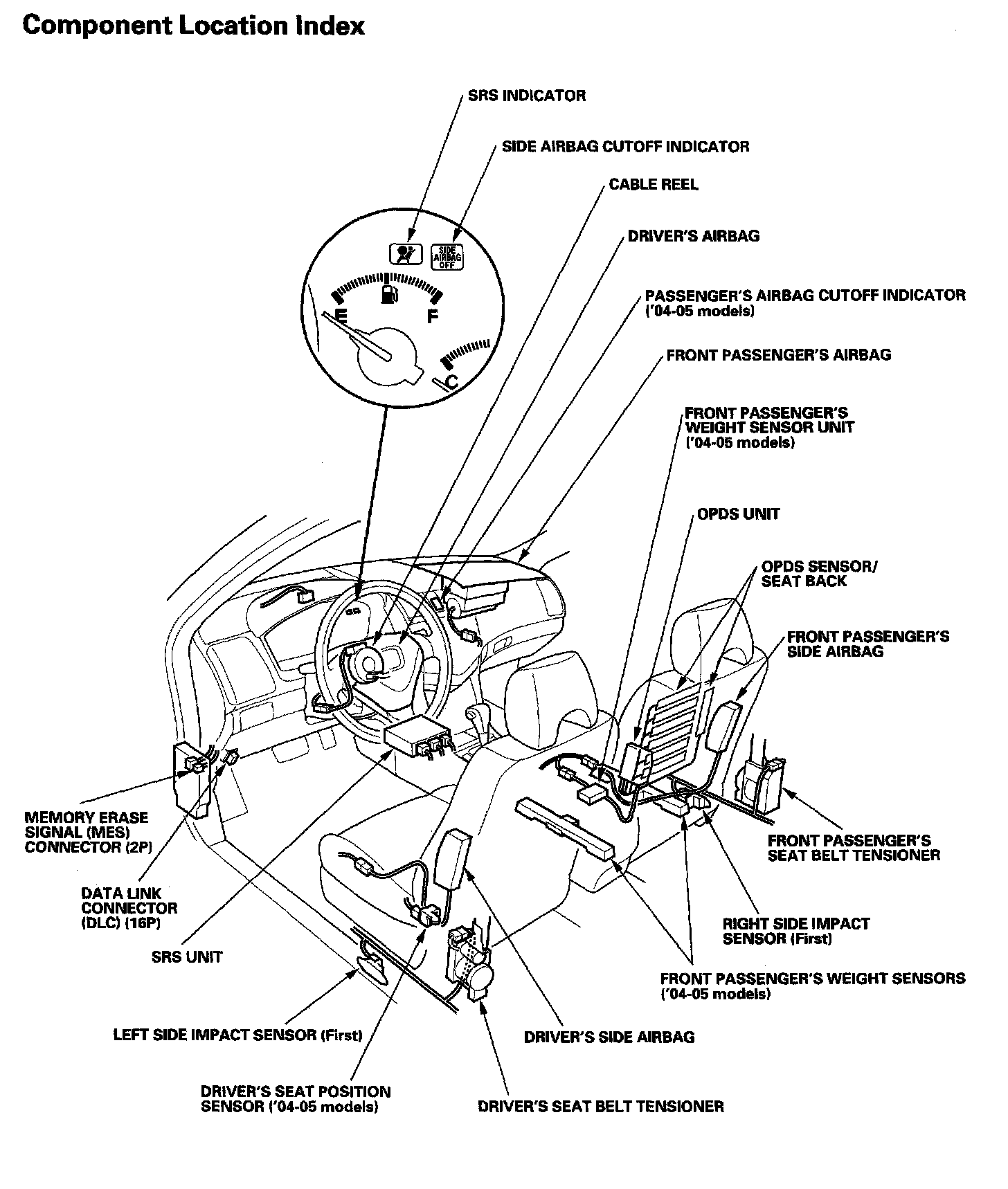

SRS Component Location Index:
