Keyless Entry Module: Locations

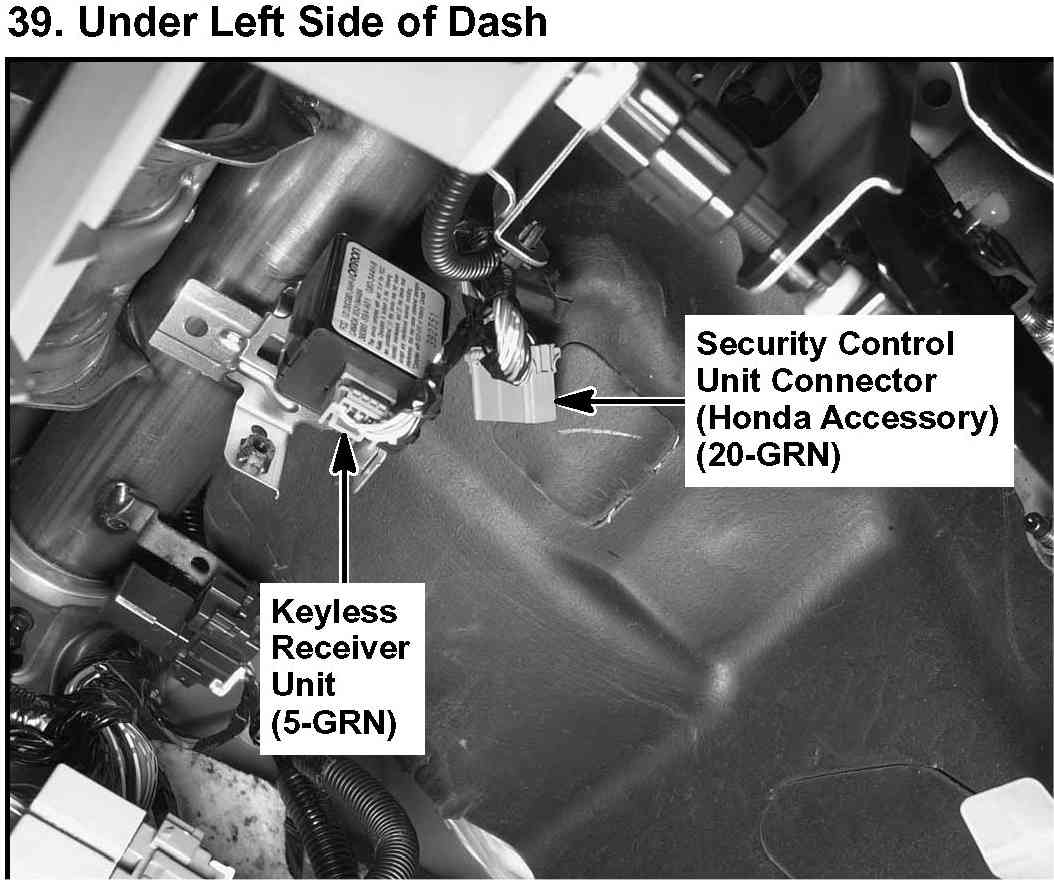

39. Under Left Side of Dash:



Relay And Control Unit Locations - Dashboard:

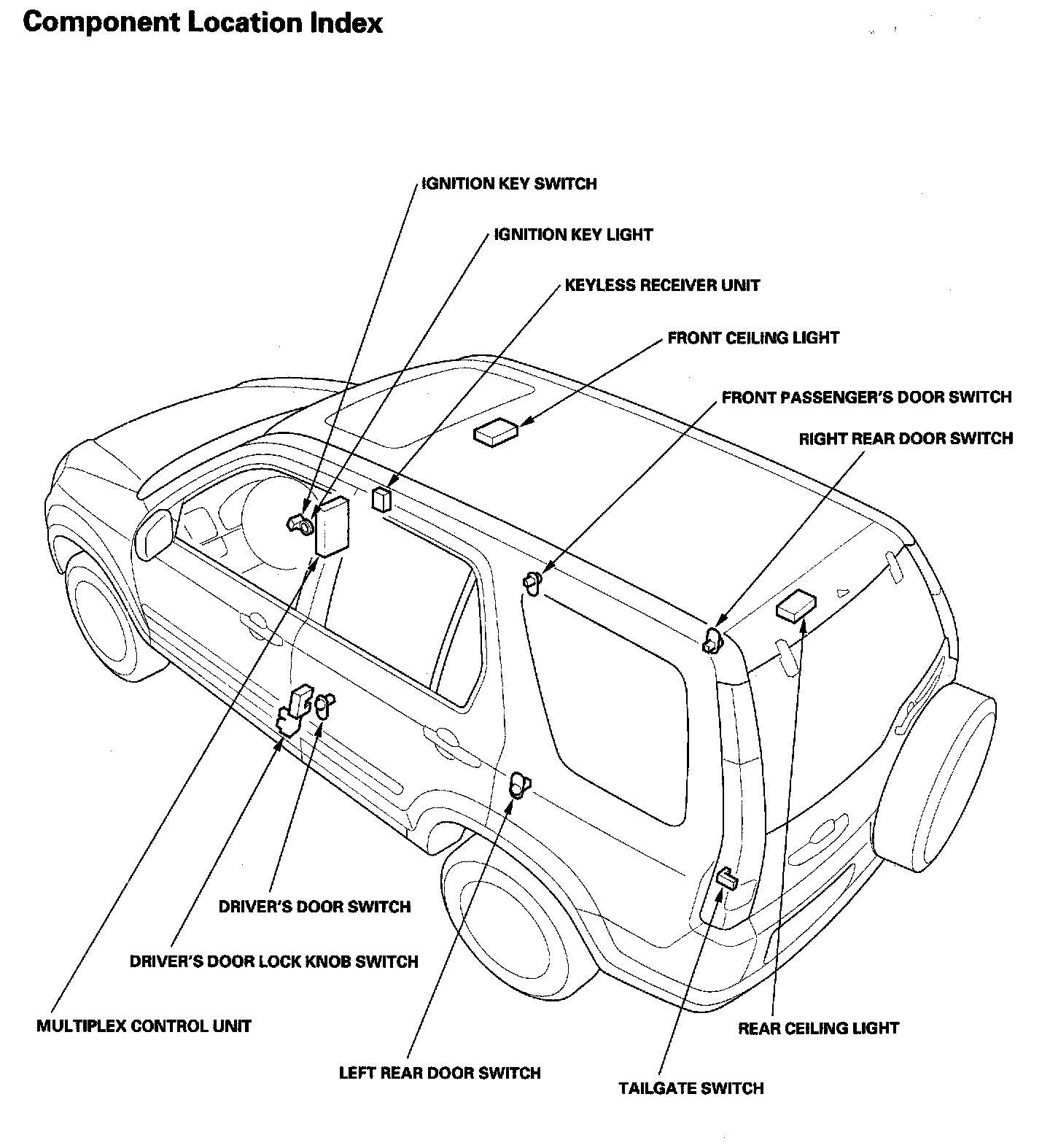

Entry Lights Control System - Component Location Index:

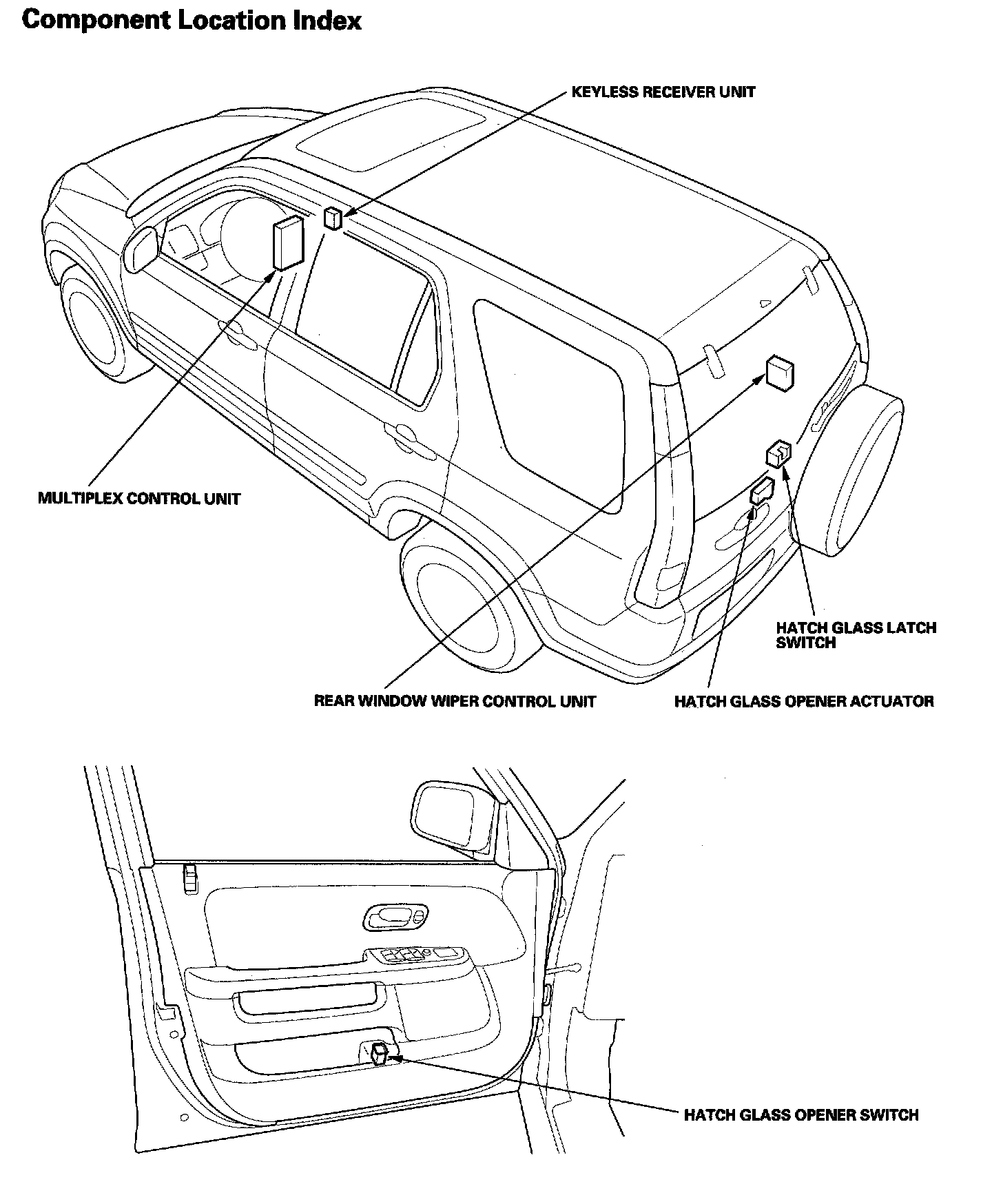

Hatch Glass Opener - Component Location Index:

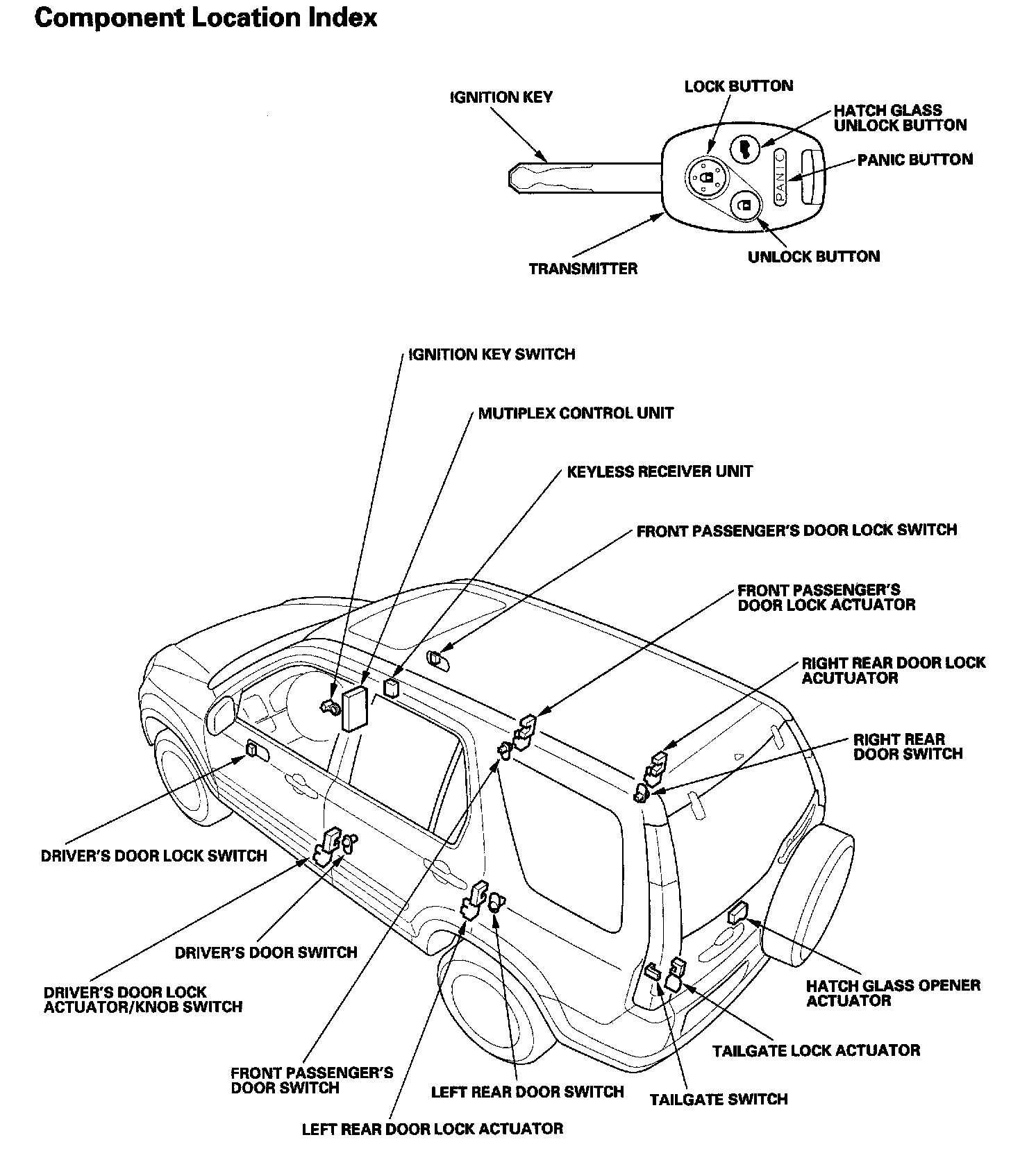

Keyless/Power Door Lock System - Component Location Index:
