Electronic Brake Control Module

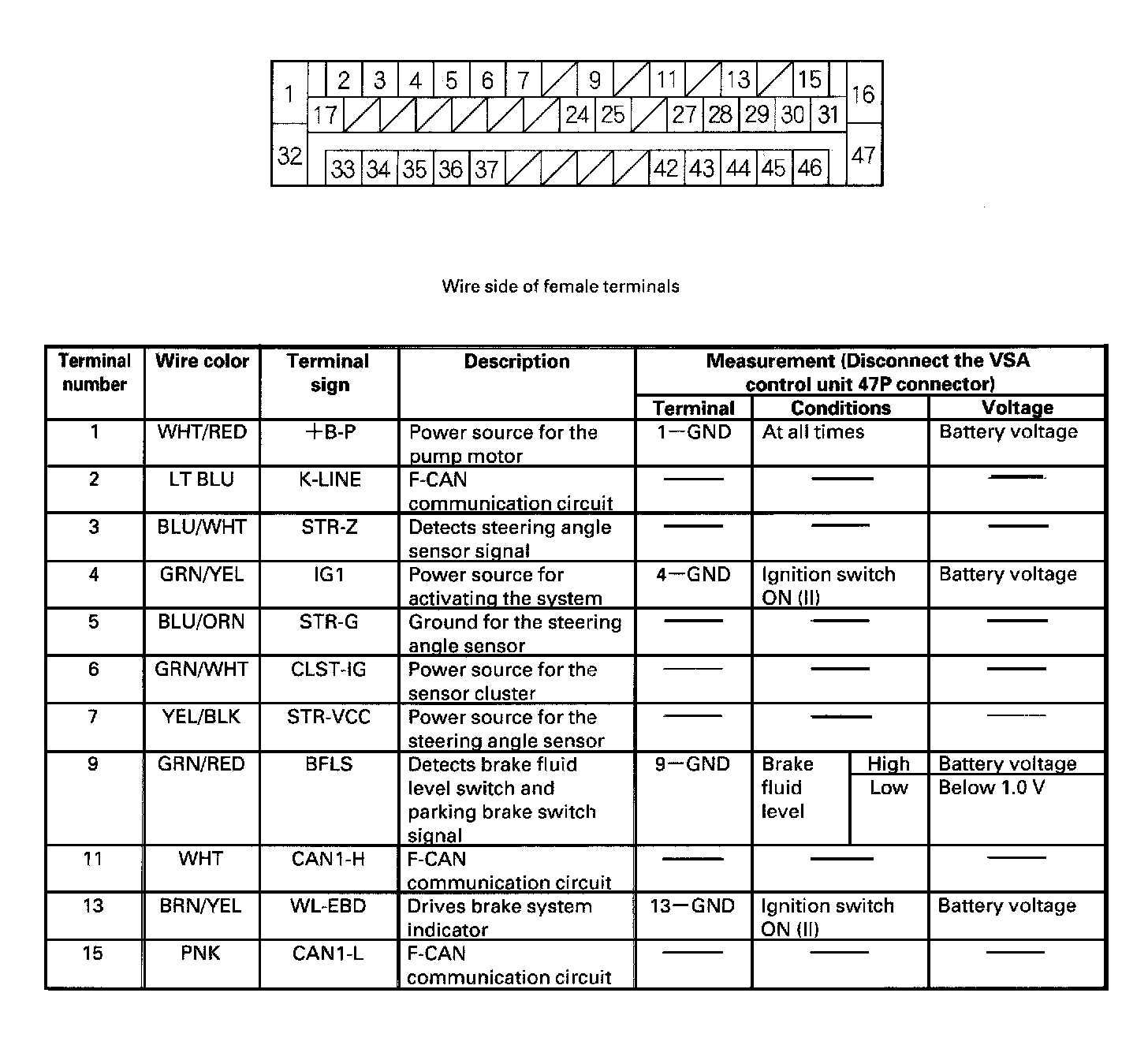

Part 1:

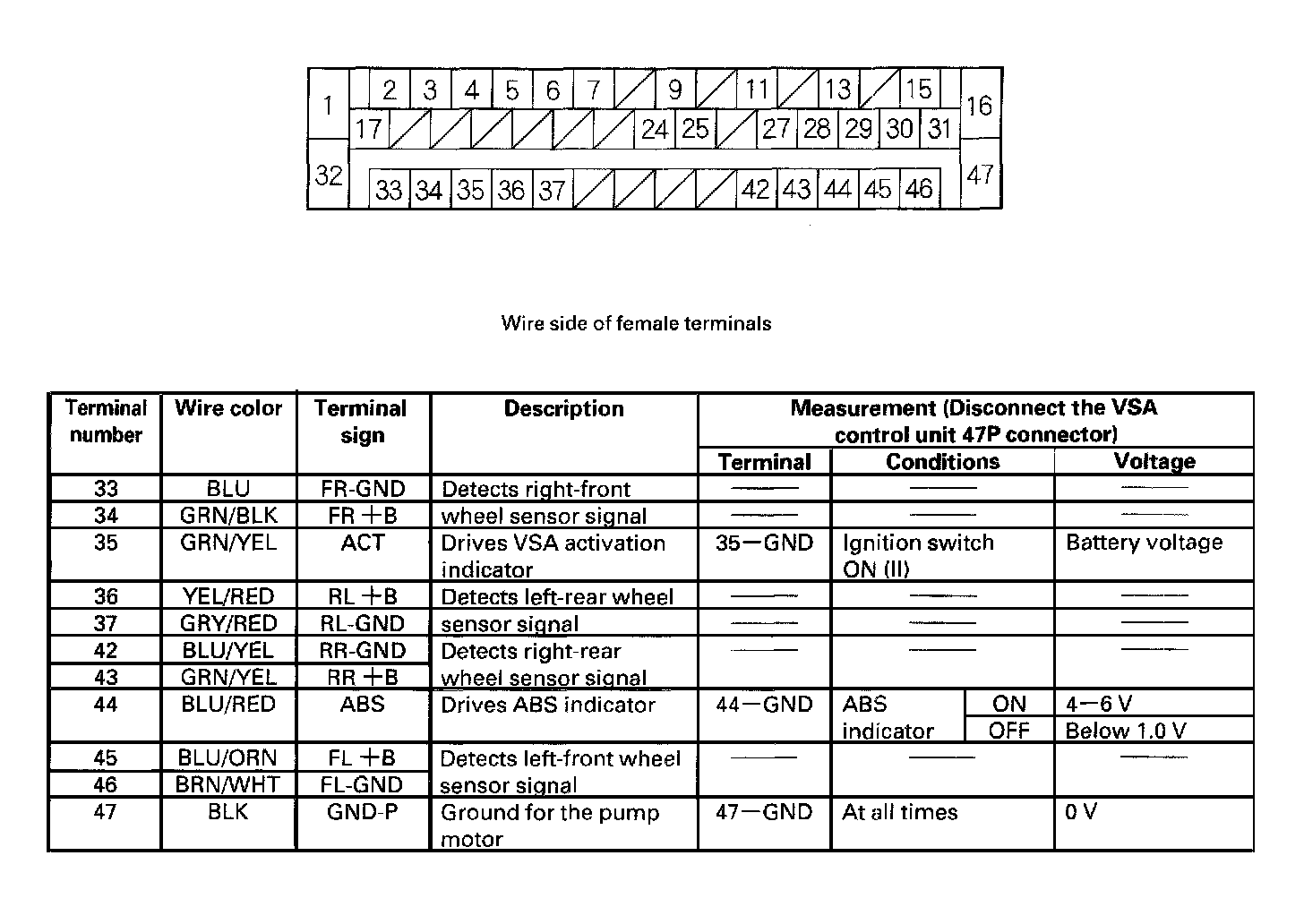

Part 2:

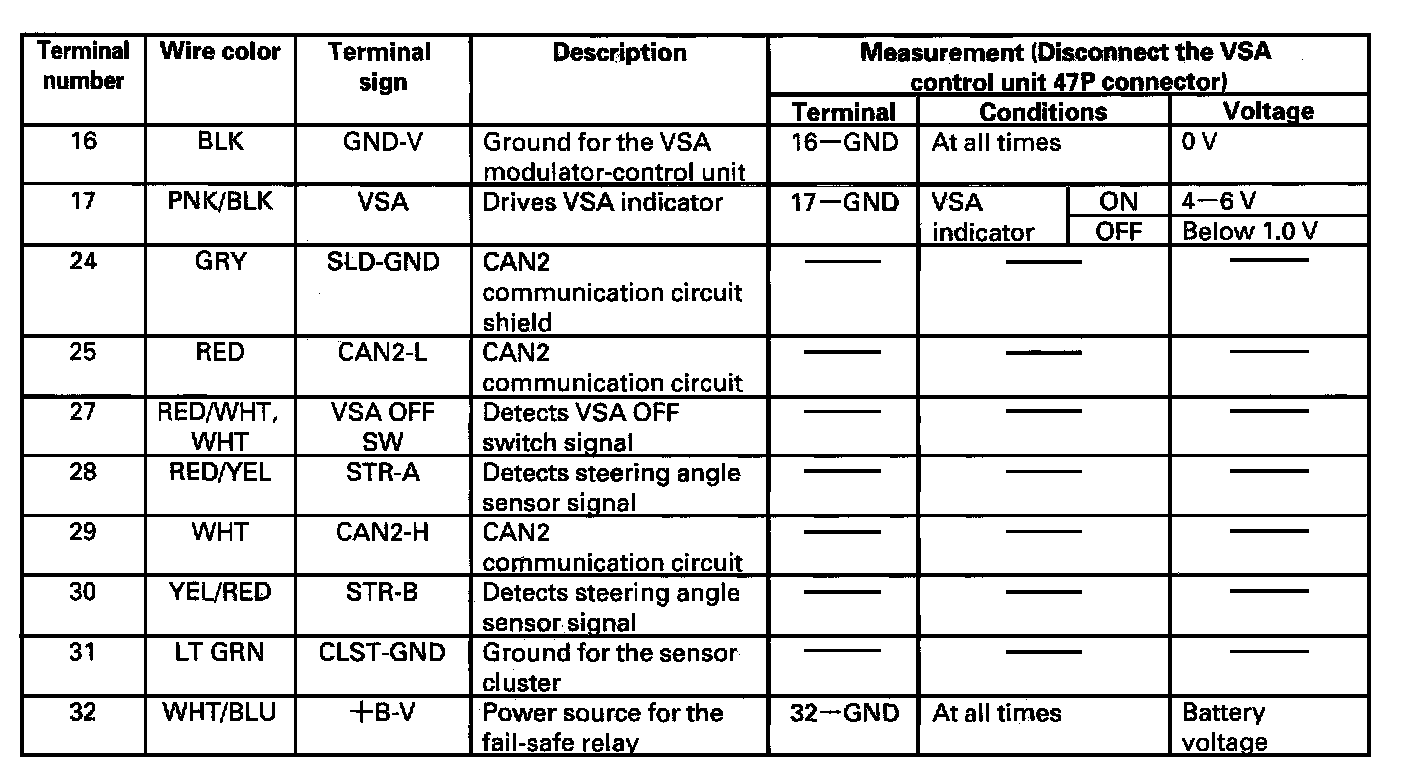

VSA Control Unit Inputs and Outputs for 47P Connector
