Fuse Block

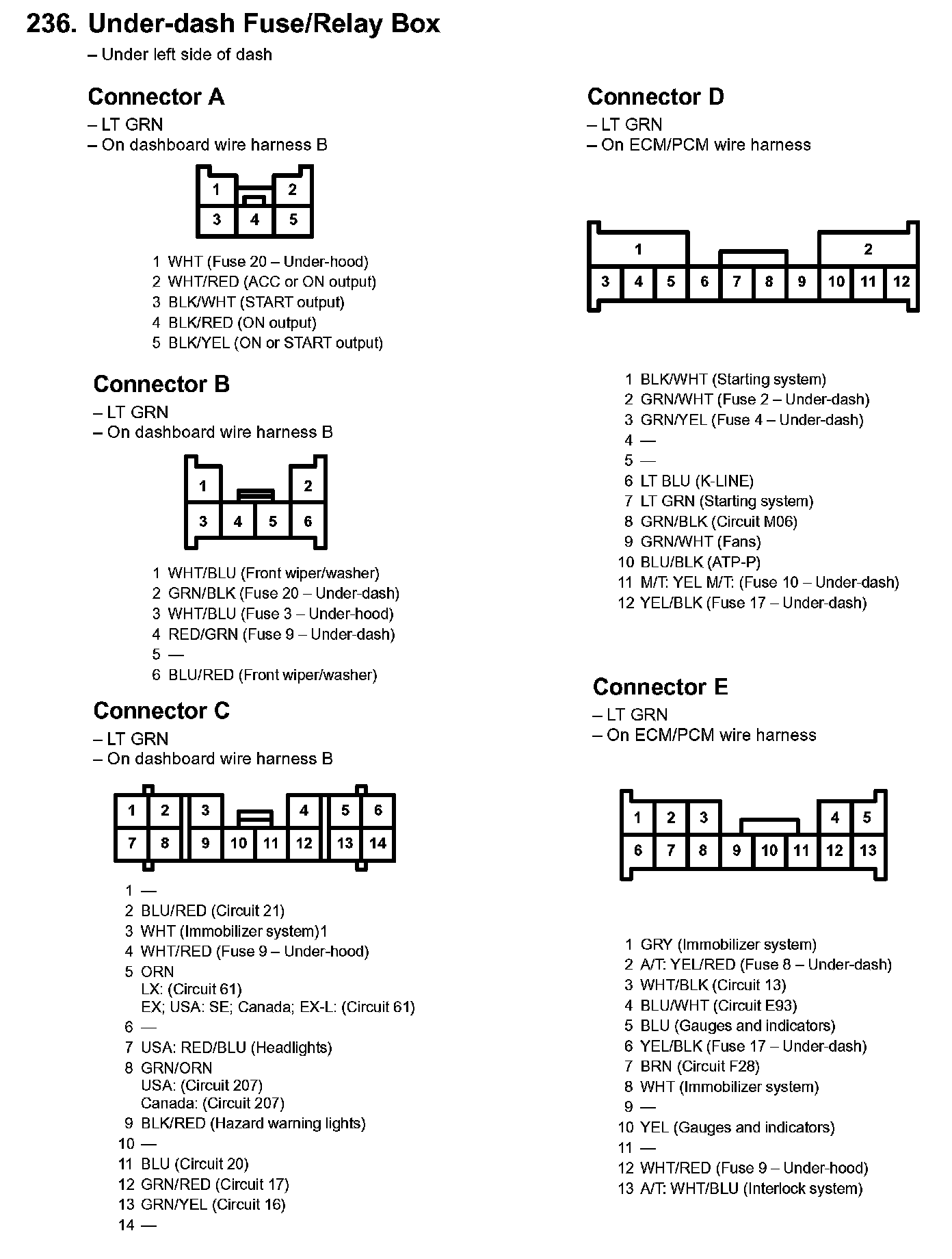

236. Under-dash Fuse/Relay Box:

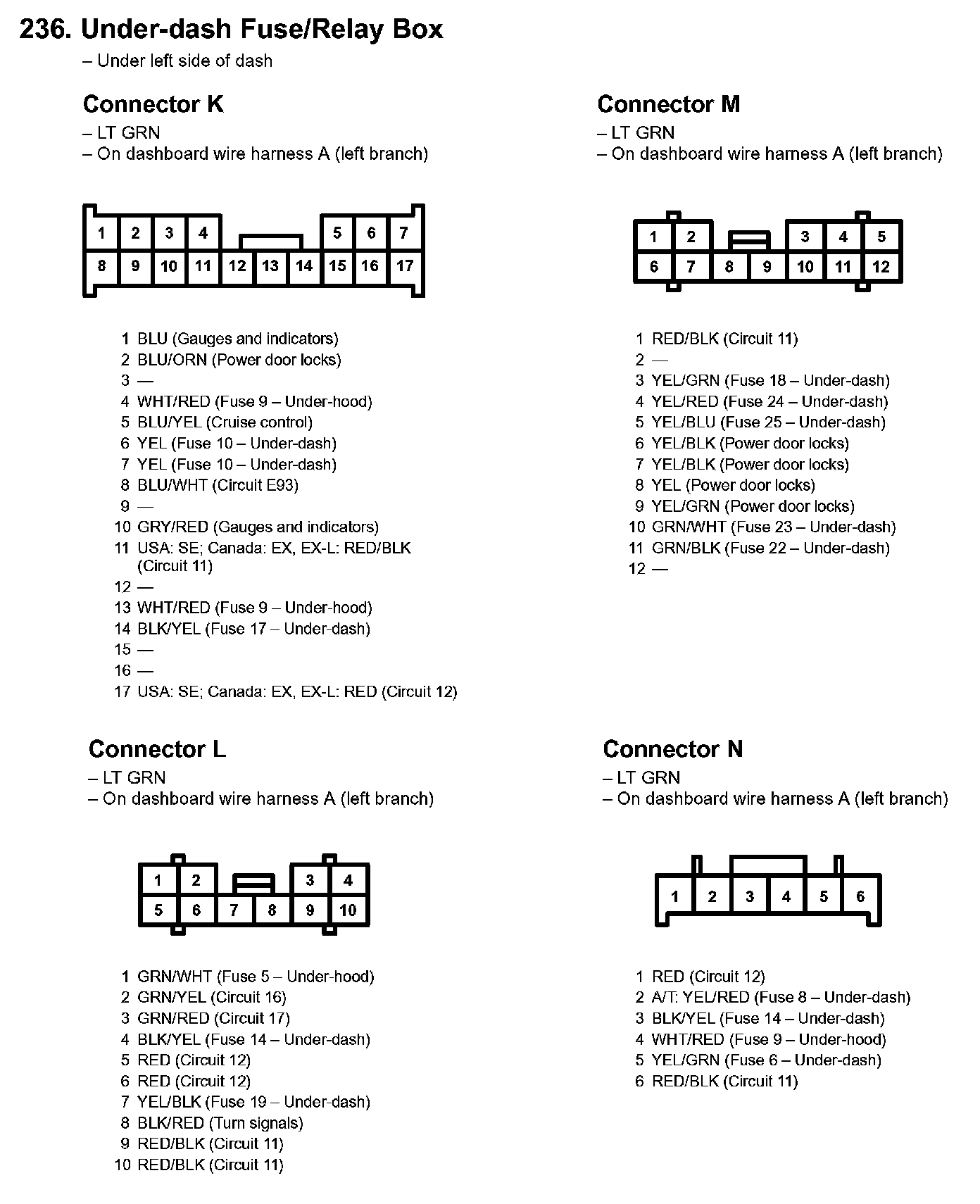

236. Under-dash Fuse/Relay Box:

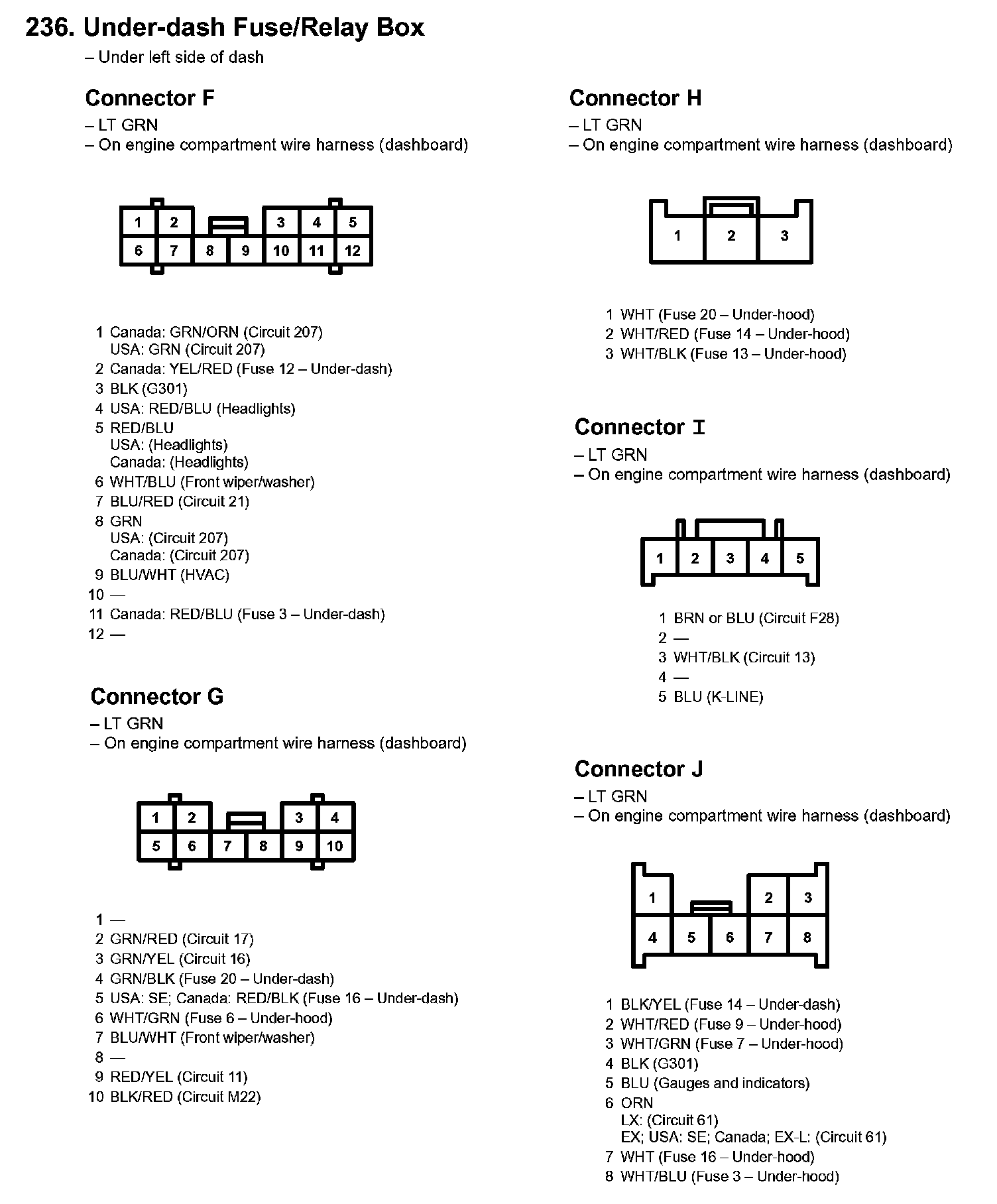

236. Under-dash Fuse/Relay Box:

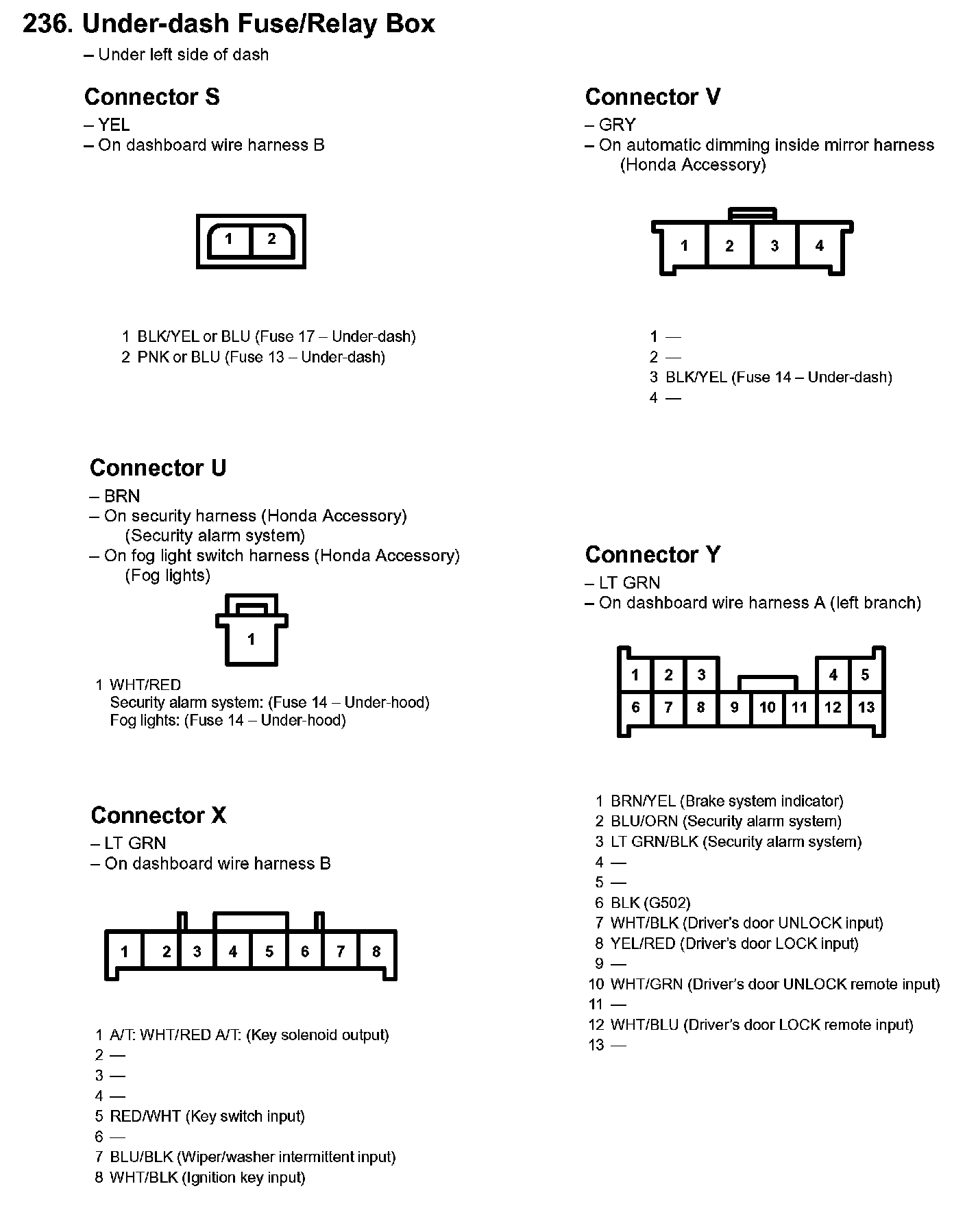

236. Under-dash Fuse/Relay Box:

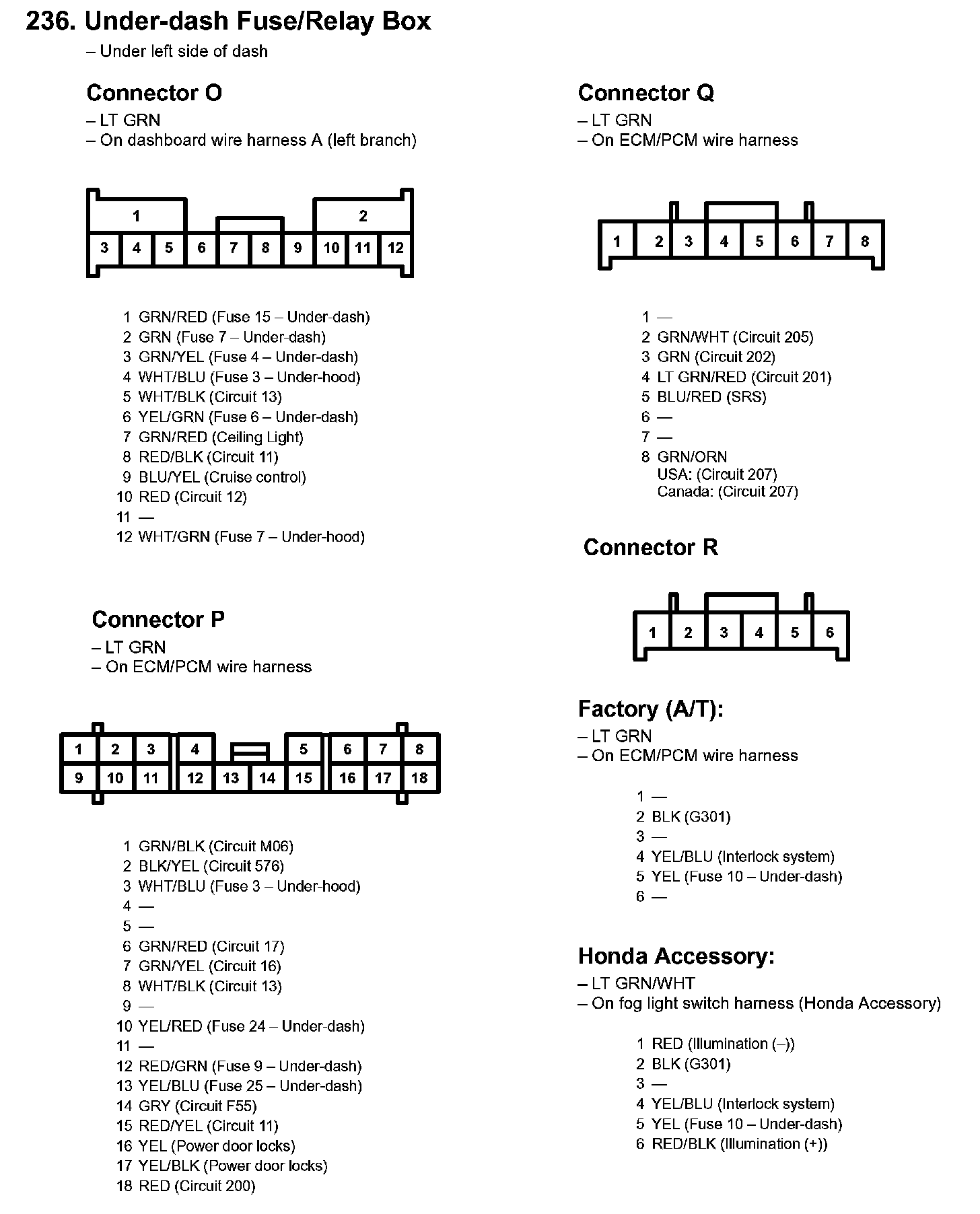

236. Under-dash Fuse/Relay Box:

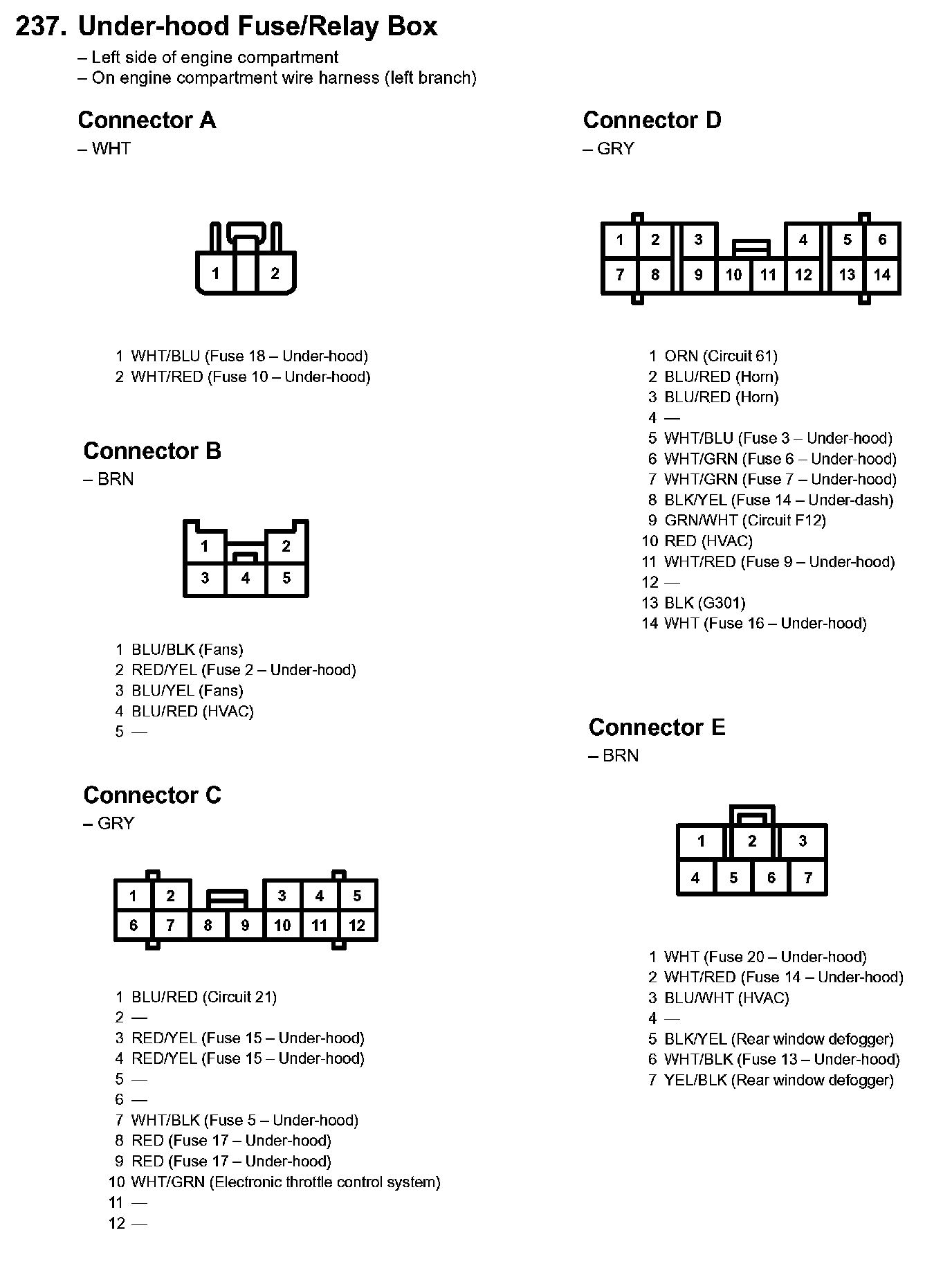

237. Under-hood Fuse/Relay Box:
