ECT Sensor Replacement

Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
Disconnect the ECT sensor 2P connector.
Remove the ECT sensor (A).

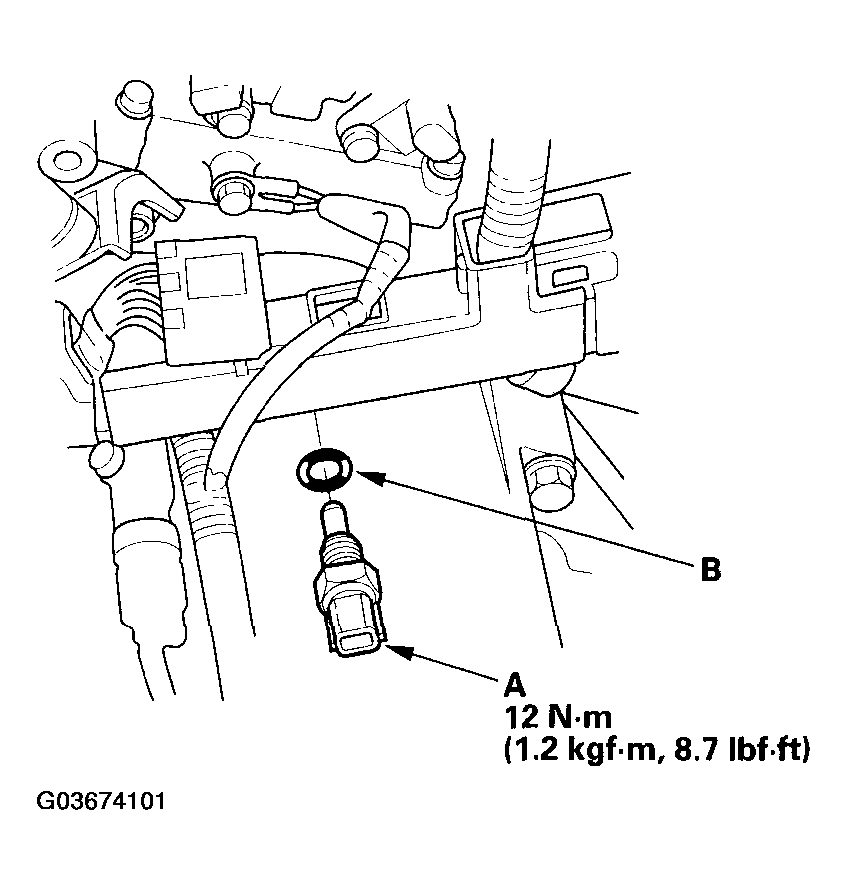

Fig 1: Removing ECT Sensor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the sensor in the reverse order of removal with a new O-ring (B).
