MAP Sensor Replacement

  1. Remove the intake monifold cover (see step 1 on REMOVAL ).
  2. Disconnect the MAP sensor 3P connector (A).

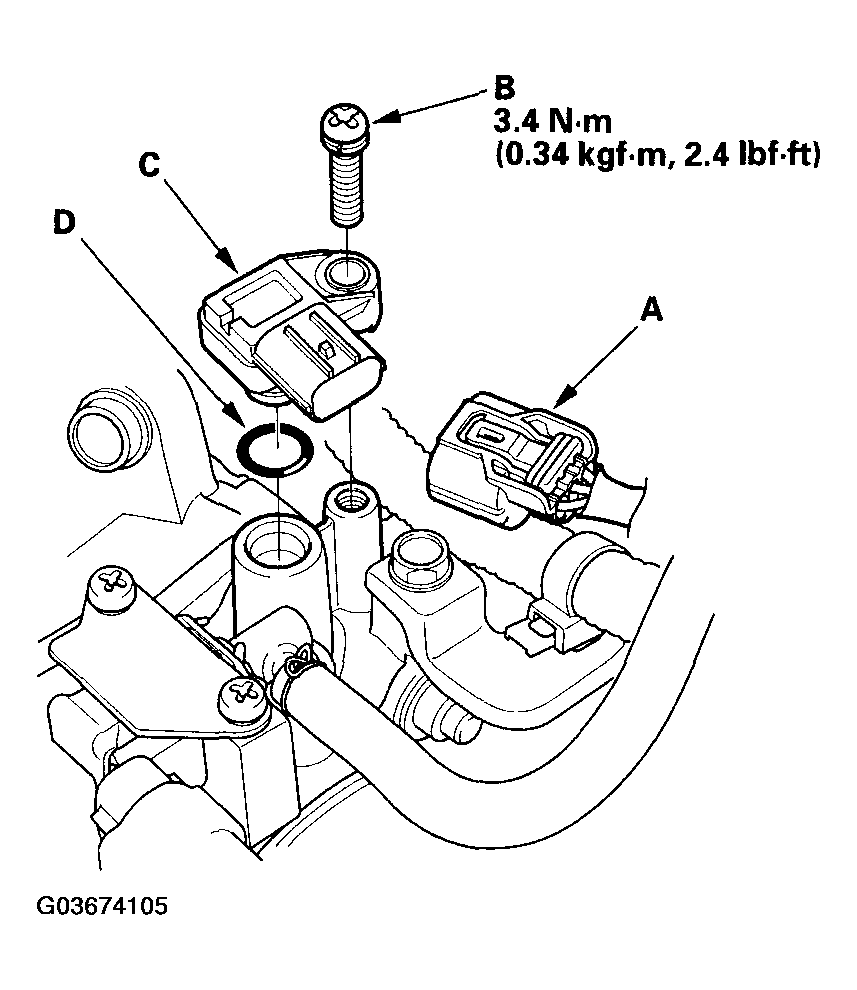

    Fig 1: Disconnecting MAP Sensor 3P Connector With Torque Specifications
    G03674105Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screw (B).
  4. Remove the MAP sensor (C).
  5. Install the sensor in the reverse order of removal with a new O-ring (D).
