EVAP Canister Replacement

  1. Remove the EVAP canister cover (A).

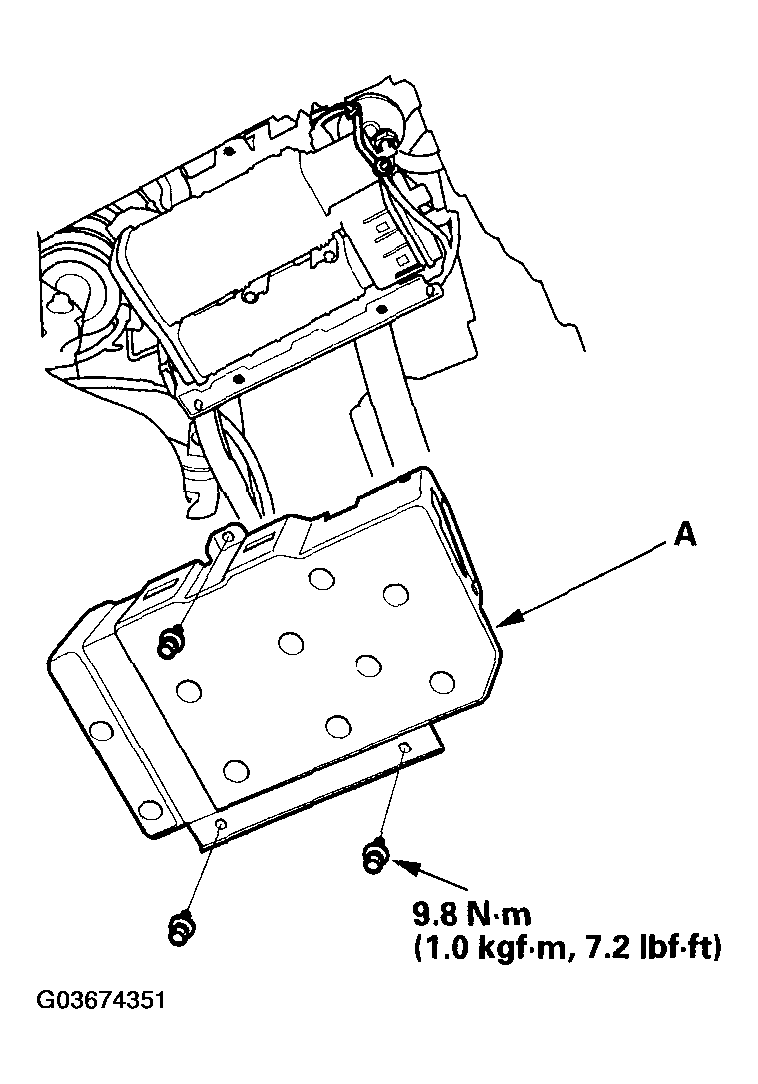

    Fig 1: Removing EVAP Canister Cover With Torque Specifications
    G03674351Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the hoses (A), the FTP sensor 3P connector (B), and the EVAP canister vent shut valve 2P connector (C).

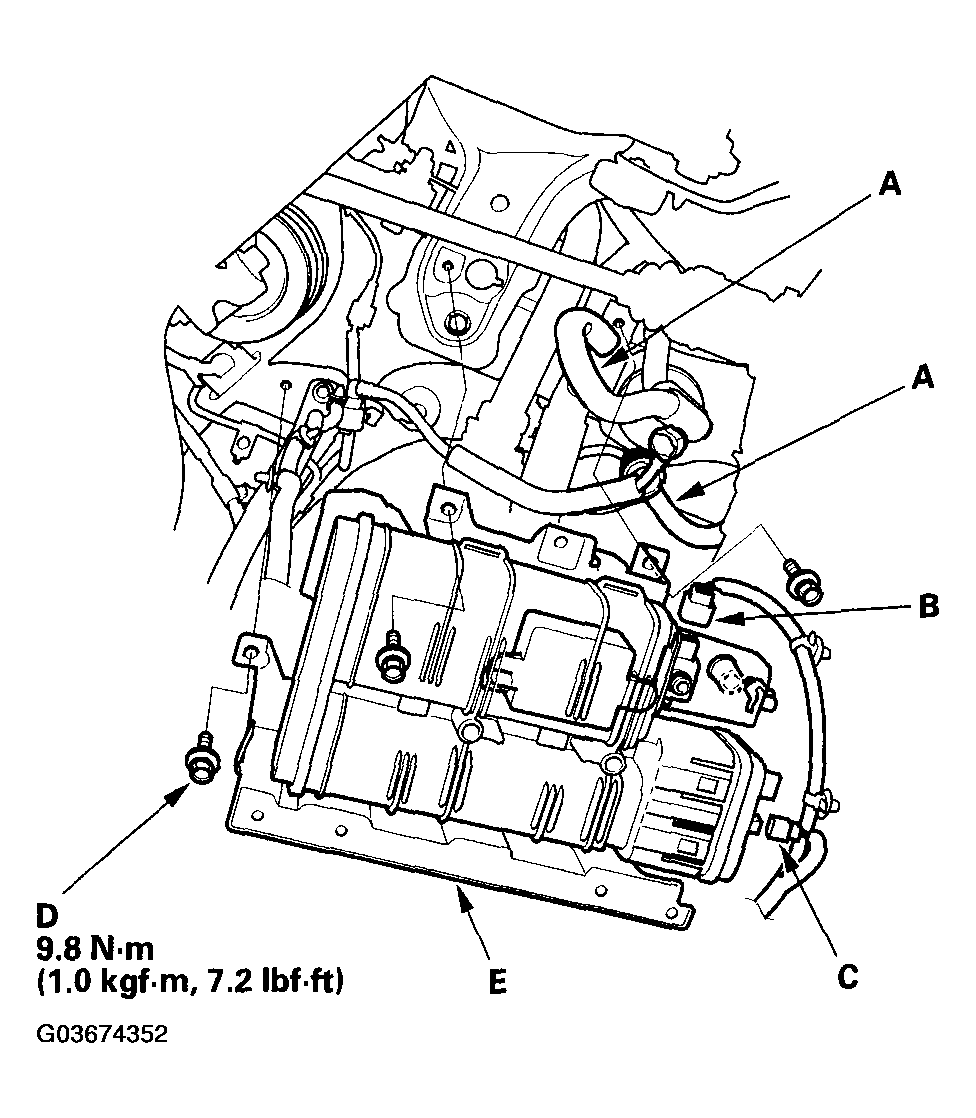

    Fig 2: Removing Hoses, FTP Sensor 3P Connector, And EVAP Canister Vent Shut Valve 2P Connector With Torque Specifications
    G03674352Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (D).
  4. Remove the EVAP canister assembly (E).
  5. Remove the filter (A).

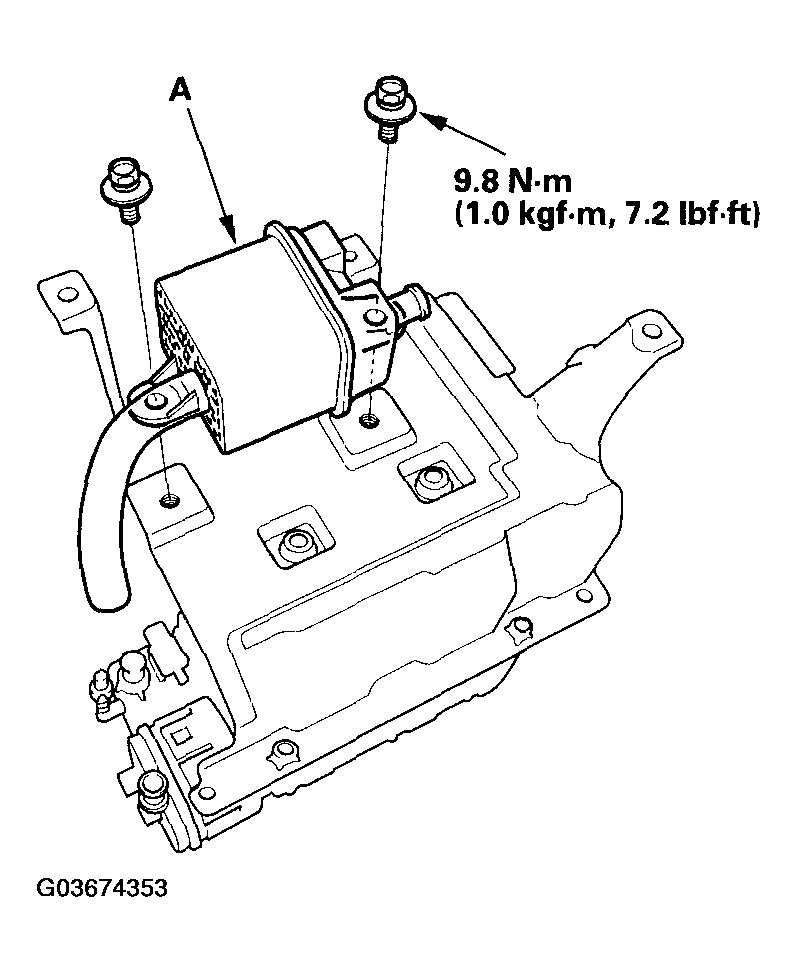

    Fig 3: Removing Filter And EVAP Canister Assembly With Torque Specifications
    G03674353Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the EVAP canister bracket (A).

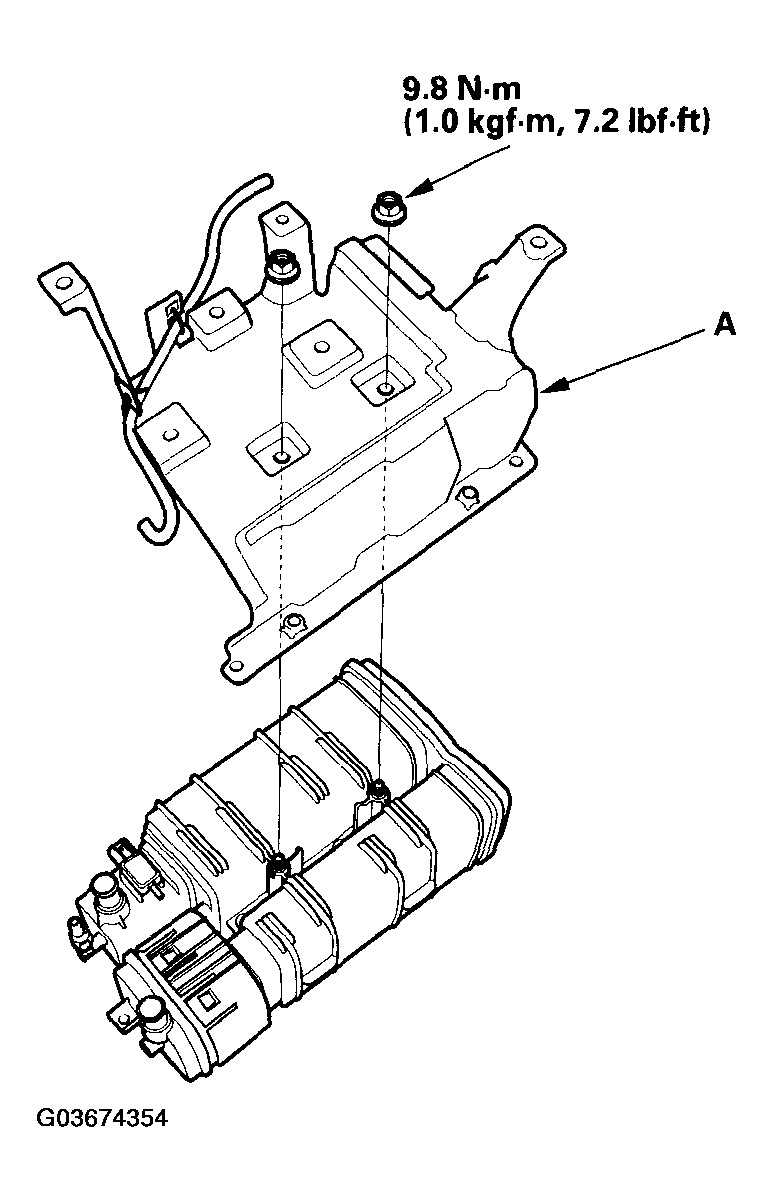

    Fig 4: Removing EVAP Canister Bracket With Torque Specifications
    G03674354Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the canister in the reverse order of removal.
