Air Cleaner Element Inspection/Replacement

  1. Remove the PCV hose (A). Open the air cleaner housing cover (B).

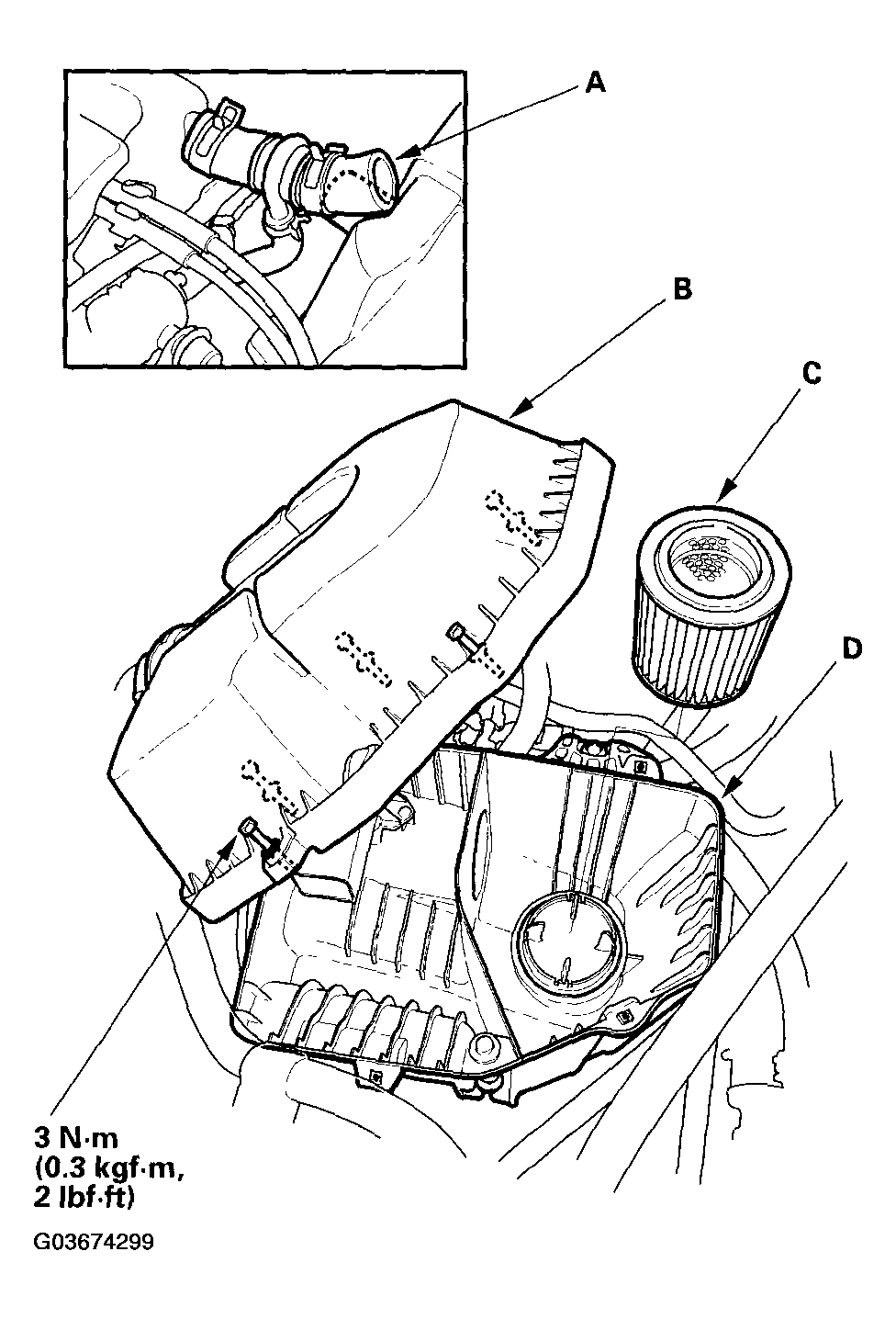

    Fig 1: Removing PCV Hose and Open Air Cleaner Housing Cover With Torque Specifications
    G03674299Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner (C) from the air cleaner housing (D).
  3. Check the air cleaner element for damage or clogging. If there is damage or clogging, replace the air cleaner element.
    NOTE: Do not use compressed air to clean the air cleaner element.
  4. Install in the reverse order of removal.
