Keyless Entry: Locations

Keyless/Power Door Lock System - Component Location Index:

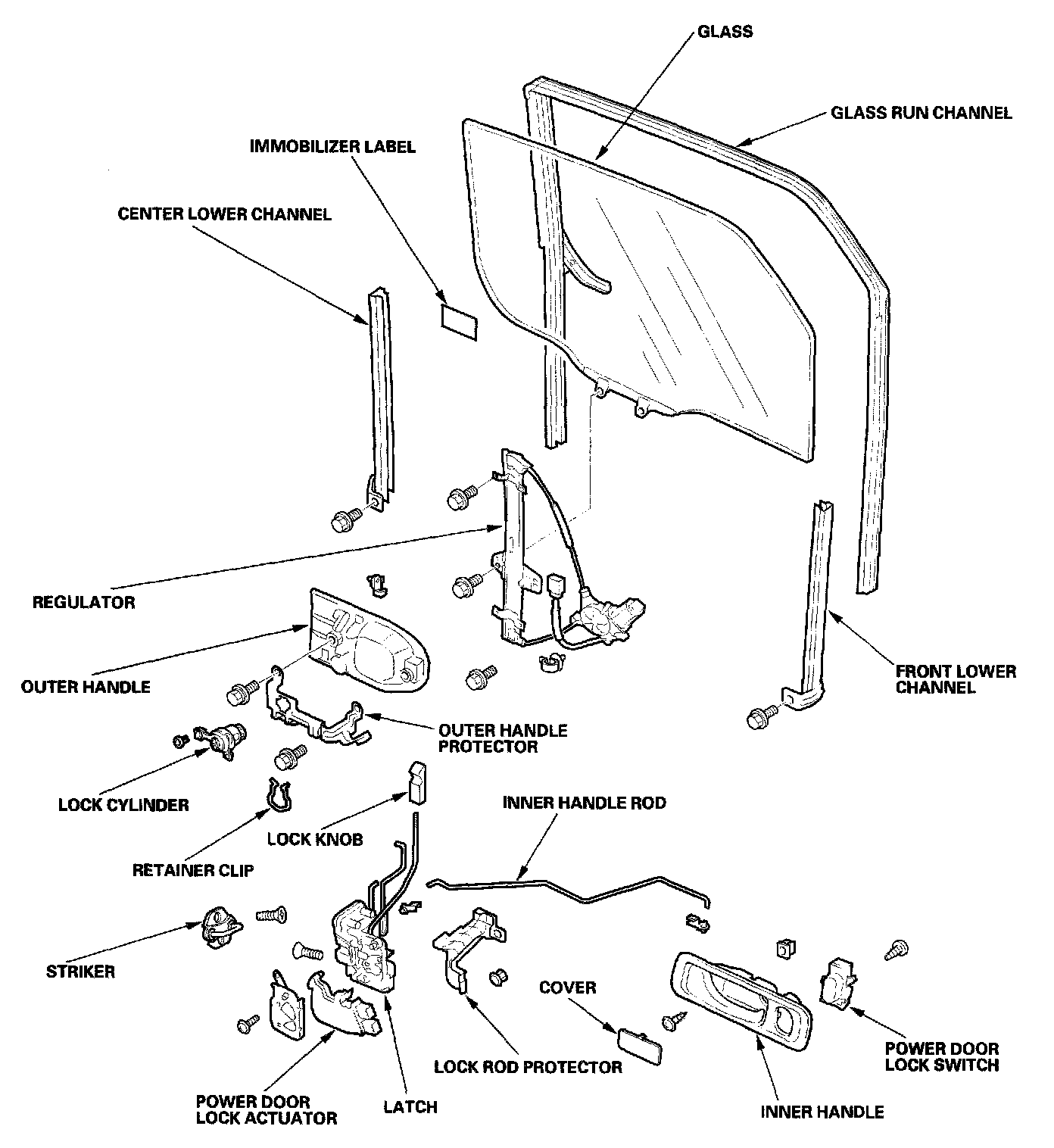

Doors - Component Location Index - Front Door Part 2:

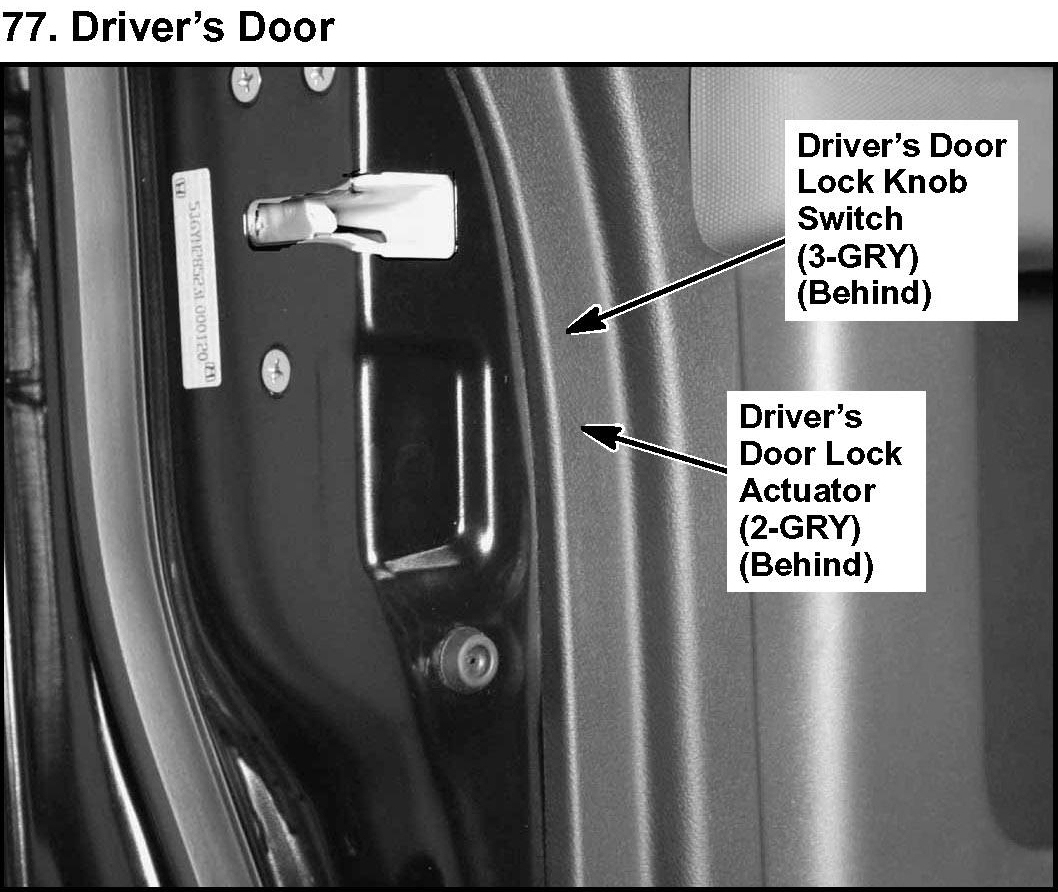

77. Driver's Door:

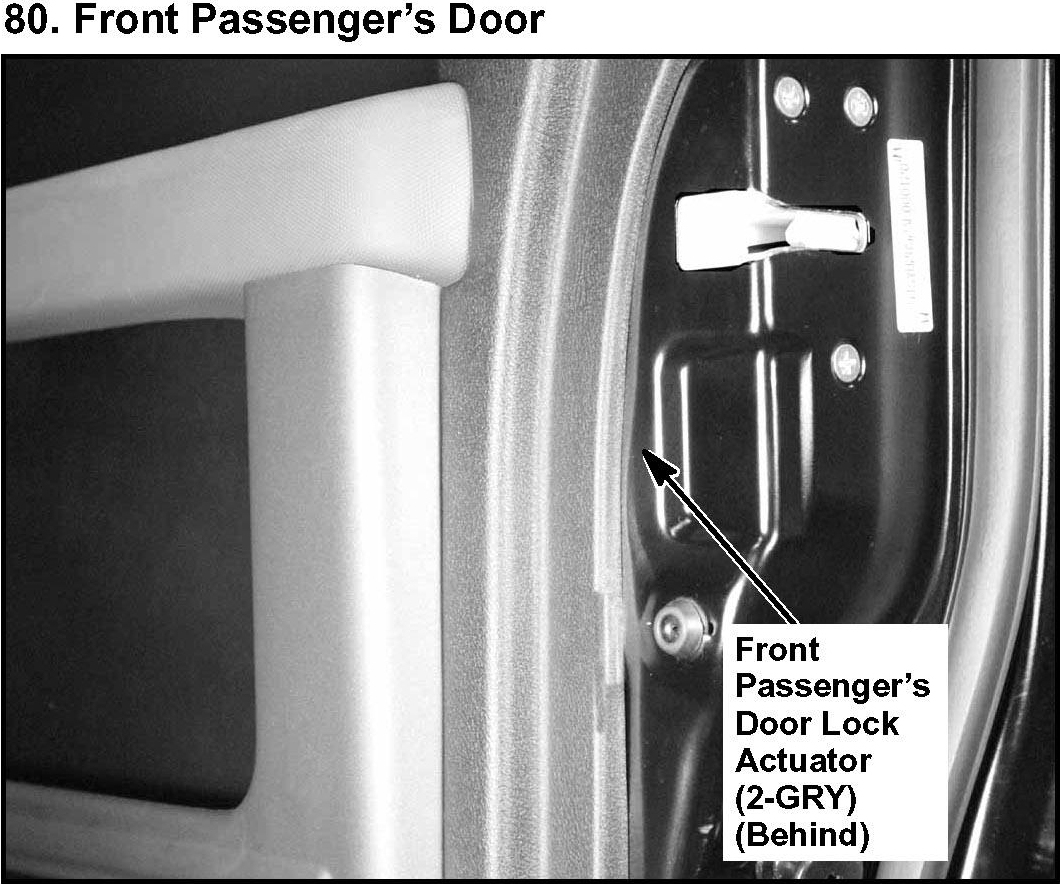

80. Front Passenger's Door:
