ECM Inputs and Outputs at Connector B (25P)

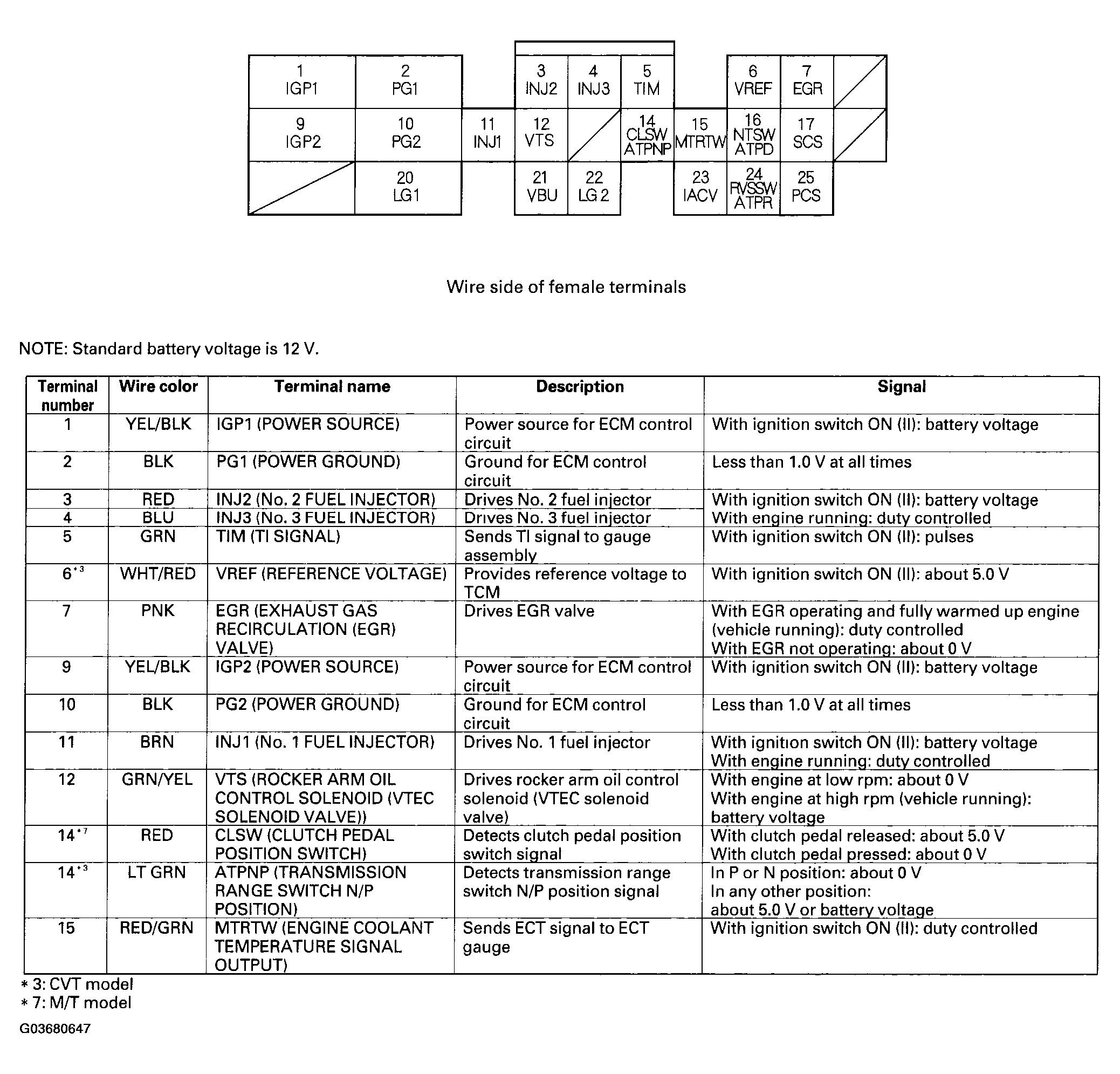

Fig 1: Identifying ECM Inputs And Outputs Connector B (25P) (1 Of 2)
G03680647Courtesy of AMERICAN HONDA MOTOR CO., INC.

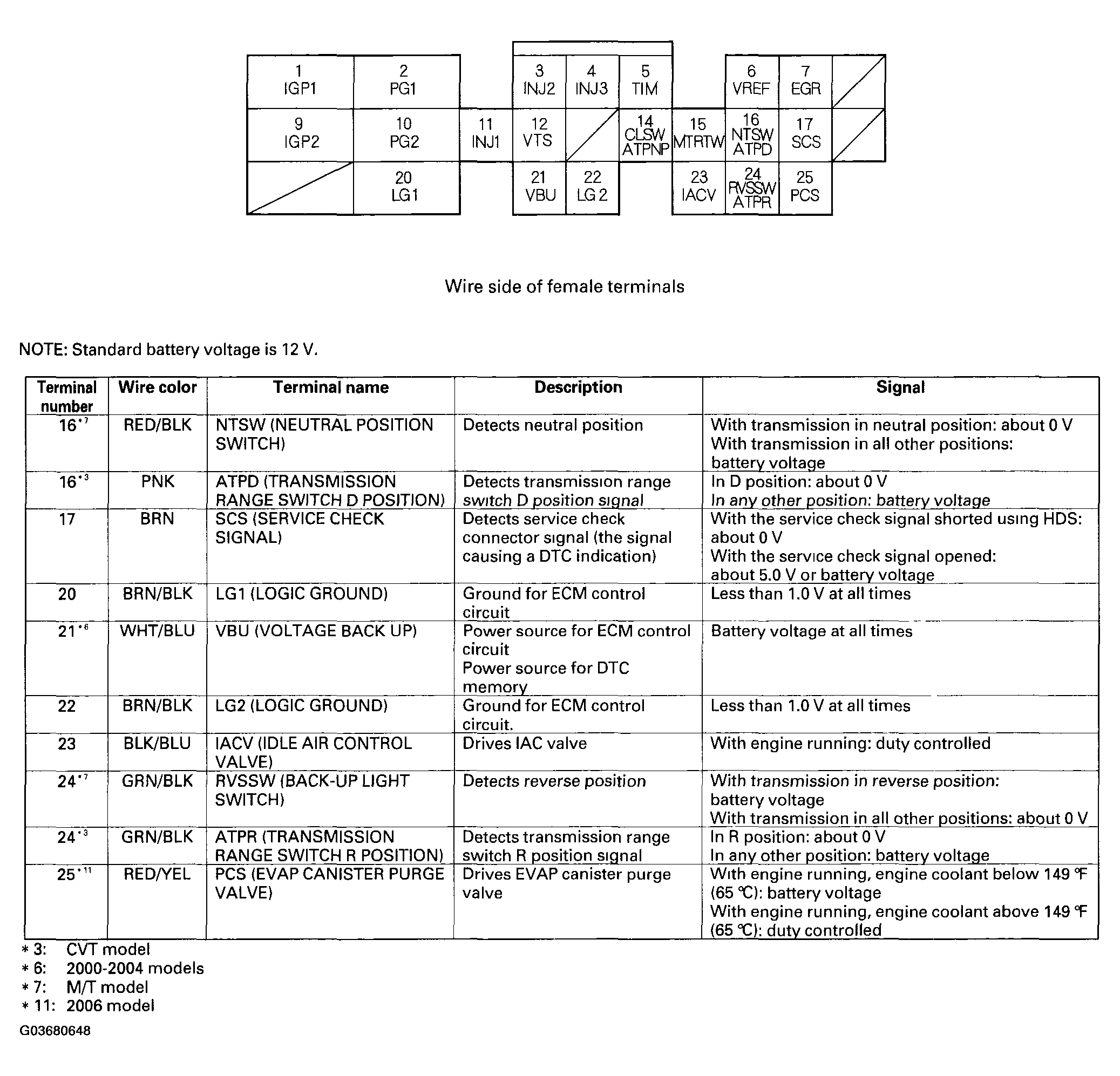

Fig 2: Identifying ECM Inputs And Outputs Connector B (25P) (2 Of 2)
G03680648Courtesy of AMERICAN HONDA MOTOR CO., INC.
