Air Bag Control Module: Locations

Relay And Control Unit Locations - Dashboard Part 3:



Relay And Control Unit Locations - Door And Seat:

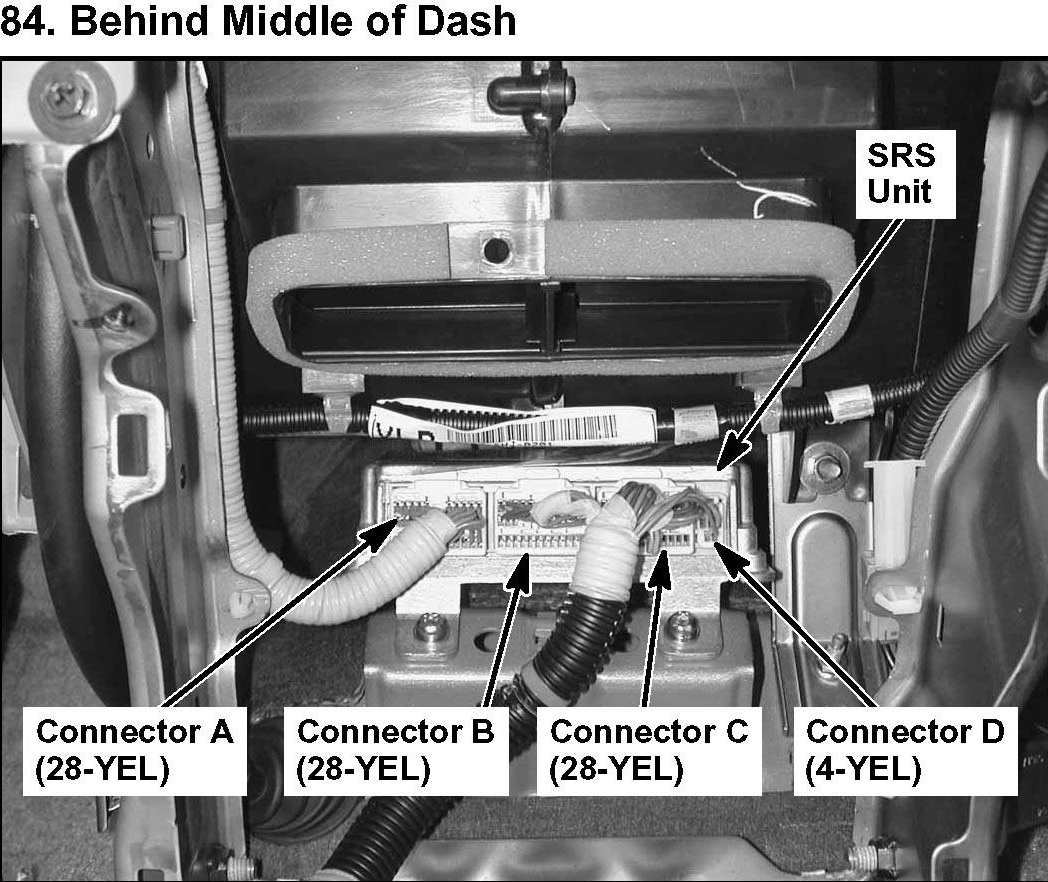

84. Behind Middle of Dash:

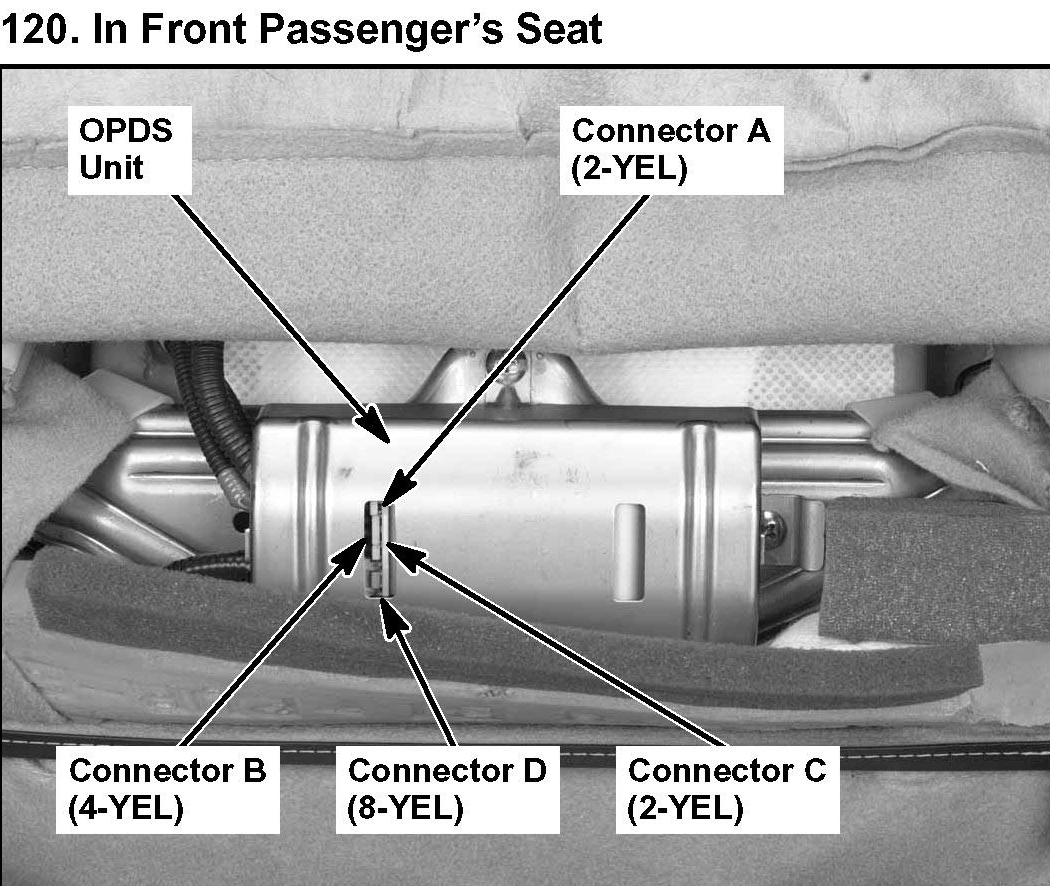

120. In Front Passenger's Seat:
