Navigation Unit Inputs and Outputs for Connector B (16P)

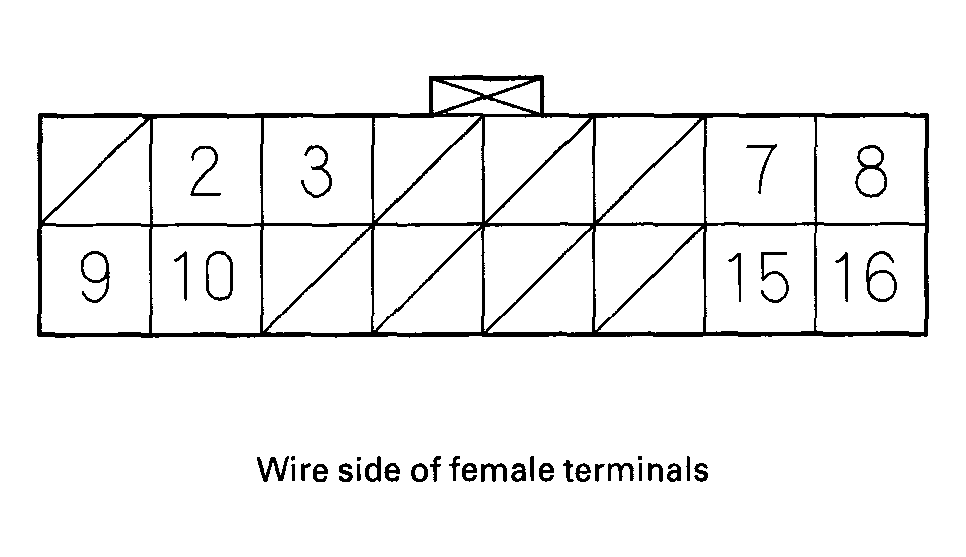

NAVIGATION UNIT CONNECTOR REFERENCE
| Terminal number | Wire color | Terminal | Terminal name | Description |
|---|---|---|---|---|
| 2 | BRN/WHT | SH AUD | Shield route guidance | Shield for terminal No. 9, 10 |
| 3 | WHT/BLK | MUTE | Mute | Audio mute signal |
| 7 | BLU/GRN | DISP BUS (+) | Display bus positive | Data bus (+) |
| 8 | RED/BLK | ILL+ | Illumination positive | Parking light ON signal |
| 9 | BLK/WHT | AUD L+ | Route guidance left positive | Left audio signal of voice guidance |
| 10 | WHT/GRN | GND AUD | Ground route guidance | Ground for voice guidance signal |
| 15 | ORN/BLU | DISP BUS (-) | Display bus negative | Data bus (-) |
| 16 | LT BLU | SH DISP BUS | Shield display bus | Shield for terminal No. 7, 15 |
