TPMS Control Unit Inputs and Outputs for Connector B (20P)

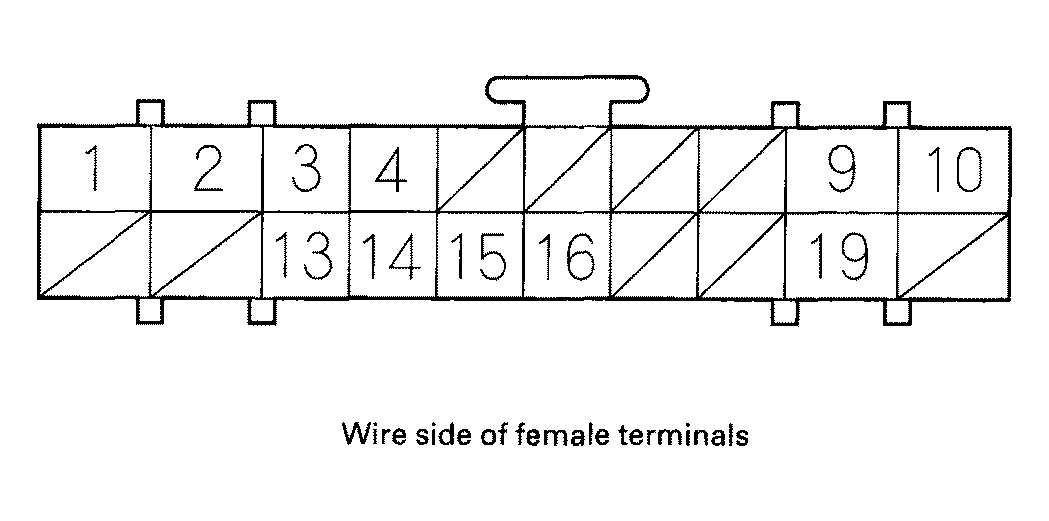

Fig 1: Identifying TPMS Control Unit Inputs And Outputs For Connector B (20P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

TERMINAL DESCRIPTION CHART FOR CONNECTOR B (20P)

Terminal number	Wire color	Terminal sign (Terminal name)	Description	Measurement
				Terminal	Conditions	Voltage
1	GRY/YEL	RF LF SIG. (RF low frequency signal)	Detects the signal from the right-front initiator	1-GND	For 5 seconds with ignition switch ON (II)	Pulses 0-2 V
					After 5 seconds with ignition switch ON (II)	0 V
2	WHT/RED	RR LF SIG. (RR low frequency signal)	Detects the signal from the right-rear initiator	2-GND	For 5 seconds with ignition switch ON (II)	Pulses 0-2 V
					After 5 seconds with ignition switch ON (II)	OV
3	ORN	LF LF SIG. (LF low frequency signal)	Detects the signal from the left-front initiator	3-GND	For 5 seconds with ignition switch ON (II)	Pulses 0-2 V
					After 5 seconds with ignition switch ON (II)	0 V
4	PNK/BLK	LR LF SIG. (LR low frequency signal)	Detects the signal from the left-rear initiator	4-GND	For 5 seconds with ignition switch ON (II)	Pulses 0-2 V
					After 5 seconds with ignition switch ON (II)	0 V
9	GRY	K-LINE (Data link connector)	Communications with HDS	-	-	-
10	RED	CAN L (CAN communication signal low)	Sends the communication signal	-	Ignition switch ON (II)	Pulses
13	GRN	LF LF GND (LF low frequency ground)	Ground for the left-front initiator	13-GND	Ignition switch ON (II)	Less than 1 V
14	RED/BLK	RF LF GND (RF low frequency ground)	Ground for the right-front initiator	14-GND	Ignition switch ON (II)	Less than 1 V
15	YEL/GRN	LR LF GND (LR low frequency ground)	Ground for the left-rear initiator	15-GND	Ignition switch ON (II)	Less than 1 V
16	RED/ORN	RR LF GND (RR low frequency ground)	Ground for the right-rear initiator	16-GND	Ignition switch ON (II)	Less than 1 V
19	WHT	CAN H (CAN communication signal high)	Sends the communication signal	-	Ignition switch ON (II)	Pulses
