With Navigation System

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or service.

1. Make sure you have the anti-theft codes for the radio and navigation system, then write down the frequencies for the radio's preset buttons.
2. Remove the center lower cover (see DASHBOARD REMOVAL/INSTALLATION ).
3. Remove the bolts (A).

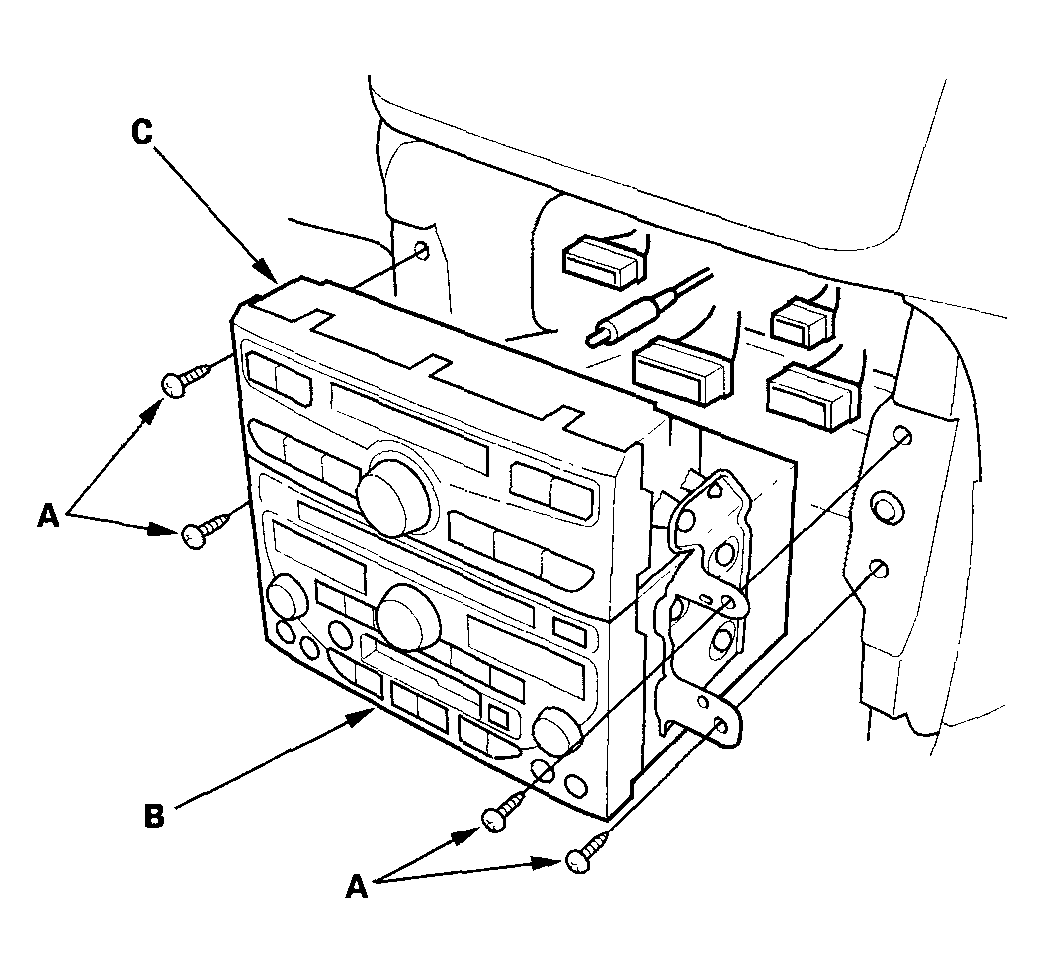

   Fig 1: Removing Bolts (A)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Disconnect the all connectors and the antenna lead from the audio unit (B) and the climate control unit (C).
5. Remove the screws (A) and the audio unit (B).

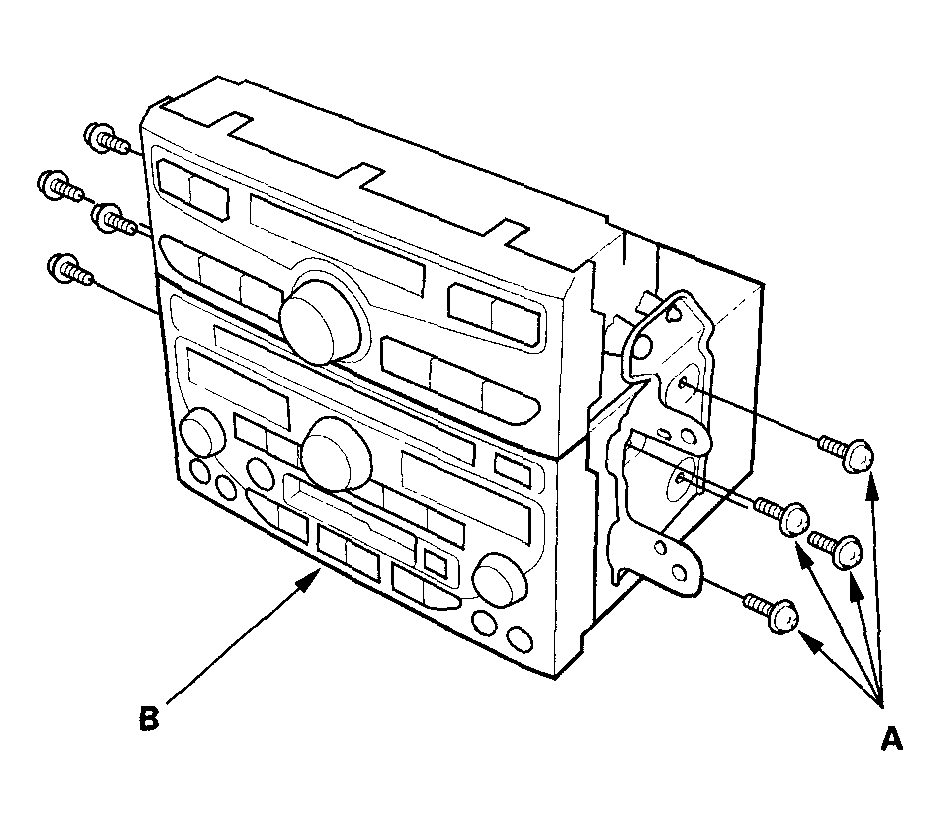

   Fig 2: Removing Screws (A) And Audio Unit (B)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Install the audio unit and the climate control unit in the reverse order of removal, and note these items:
   • Make sure the audio unit and climate control unit connectors are plugged in properly, and the antenna lead is connected properly.
   • Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
   • Enter the anti-theft codes for the radio and navigation system, then enter the customer's radio station presets and set the clock.
