Navigation Unit Removal/Installation

  1. Slide the passenger's seat (A) to the rear.
  2. Remove the navigation unit bracket (B) from the passenger's seat.

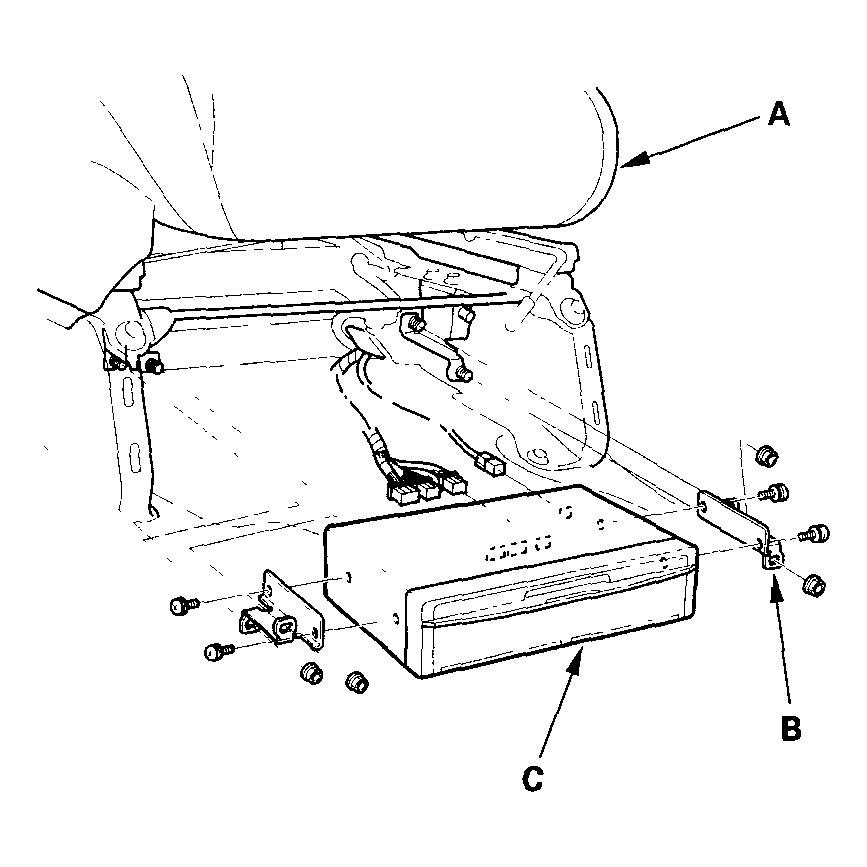

    Fig 1: Removing Navigation Unit Bracket From Passenger's Seat
    G04548591Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bracket from the navigation unit (C).
  4. Install in the reverse order of removal.
