Motor Test

Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).

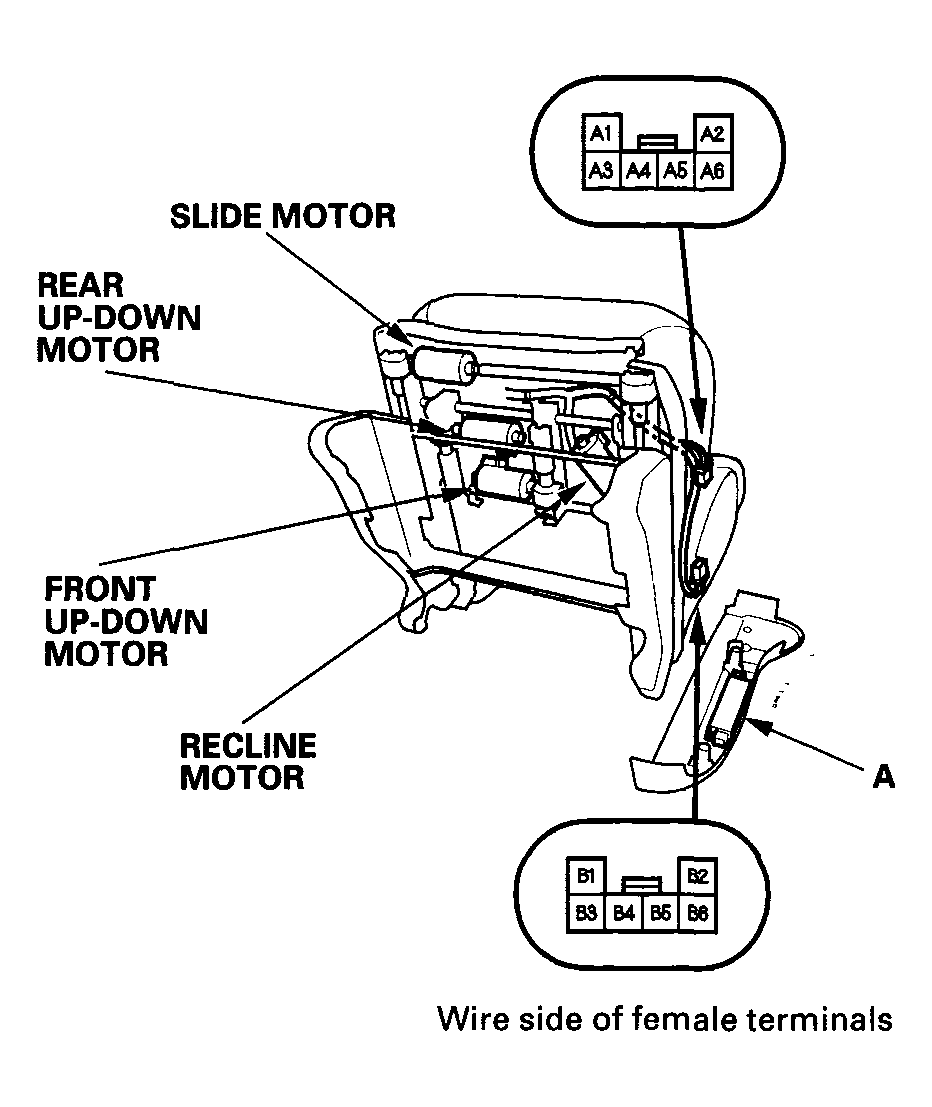

Disconnect the 6P connectors from the adjustment switch (A).
Wire side of female terminals

Fig 1: Disconnecting 6P Connectors From Adjustment Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test each motor by applying battery voltage and body ground to the terminals.
Slide motor:

Fig 2: Slide Motor Terminal Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Recline motor:

Fig 3: Recline Motor Terminal Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Front up-down motor:

Fig 4: Front Up-Down Motor Terminal Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear up-down motor:

Fig 5: Rear Up-Down Motor Terminal Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, check for an open in the driver's seat wire harness between the 6P connector and each 2P power seat motor connector. If the harness is OK, replace the motor (see FRONT SEAT DISASSEMBLY/REASSEMBLY - 8-WAY POWER ).
