Circuit Diagram

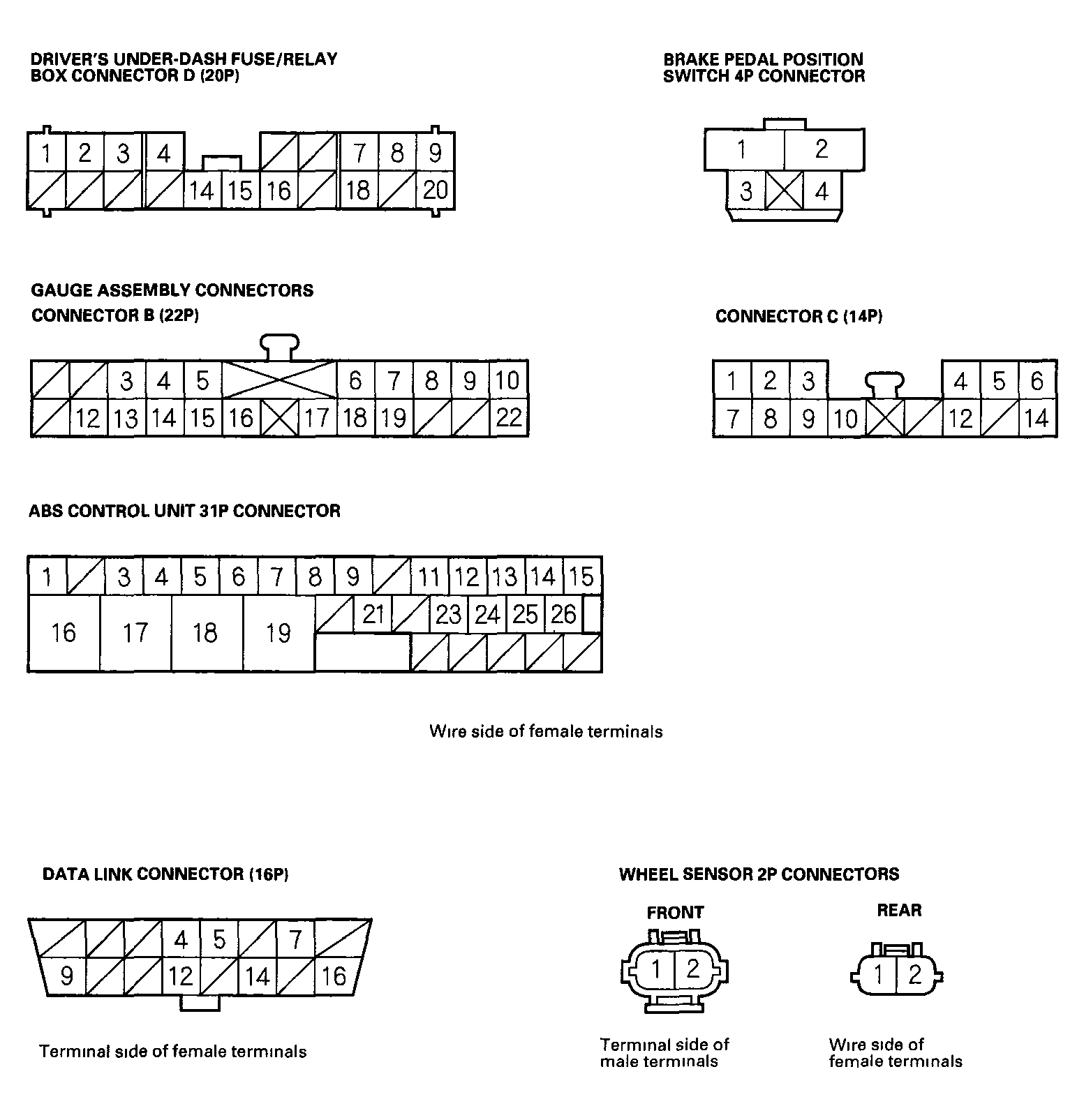

Fig 1: Identifying Circuit Diagram - ABS Components (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

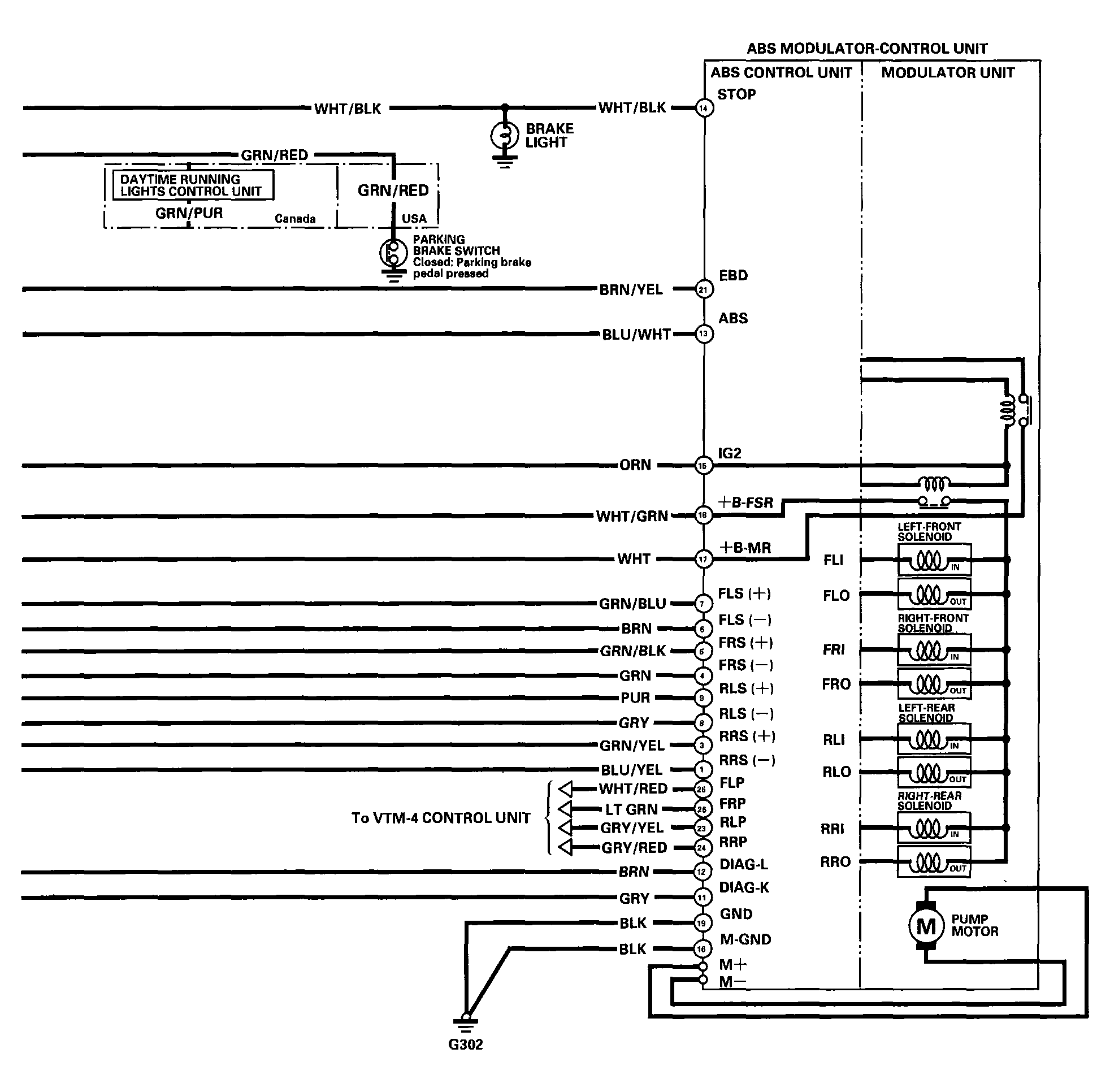

Fig 2: Identifying Circuit Diagram - ABS Components (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

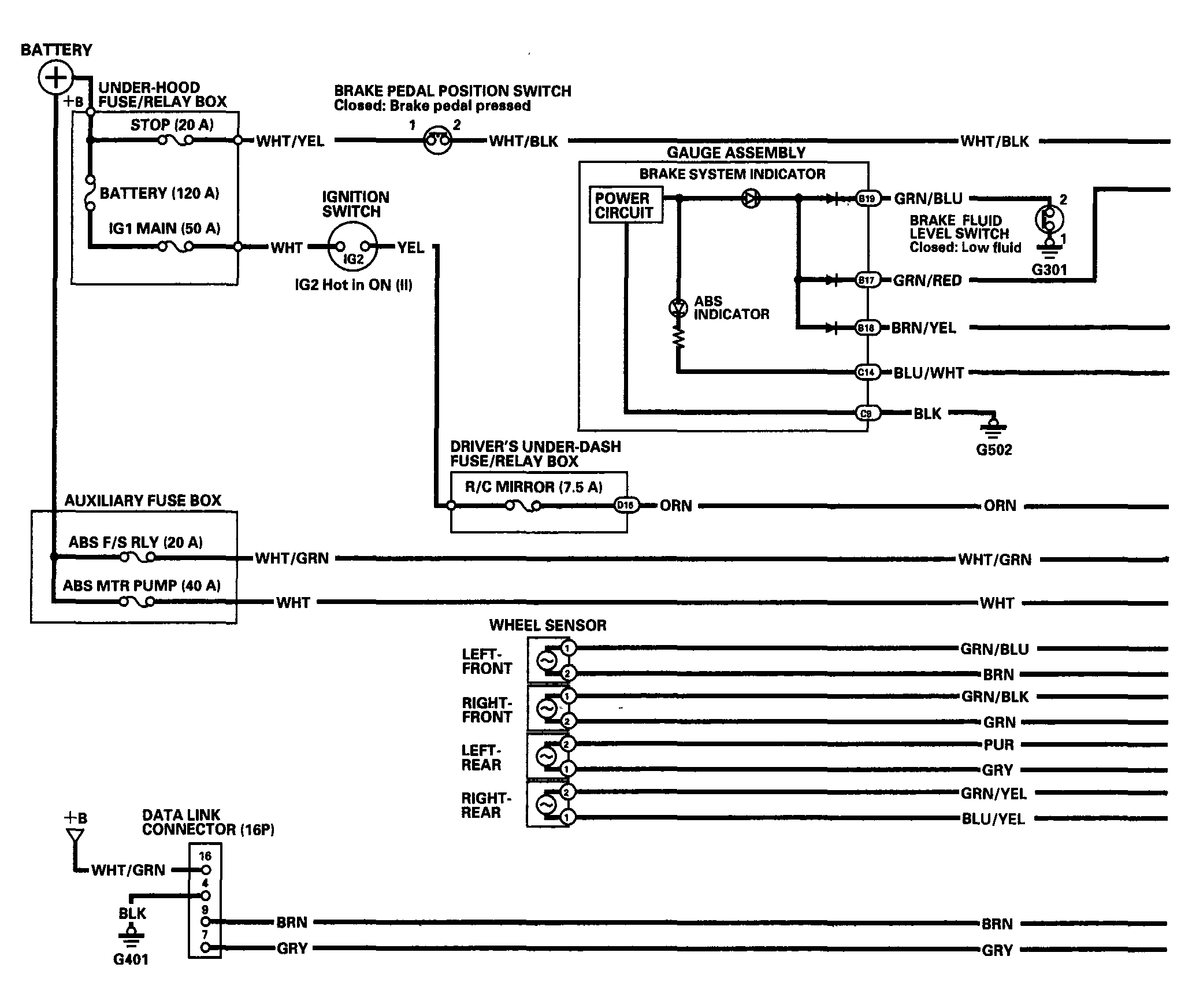

Fig 3: Identifying Circuit Diagram - ABS Components (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
