Resonator Removal/Installation

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Remove the side branch tube (A).

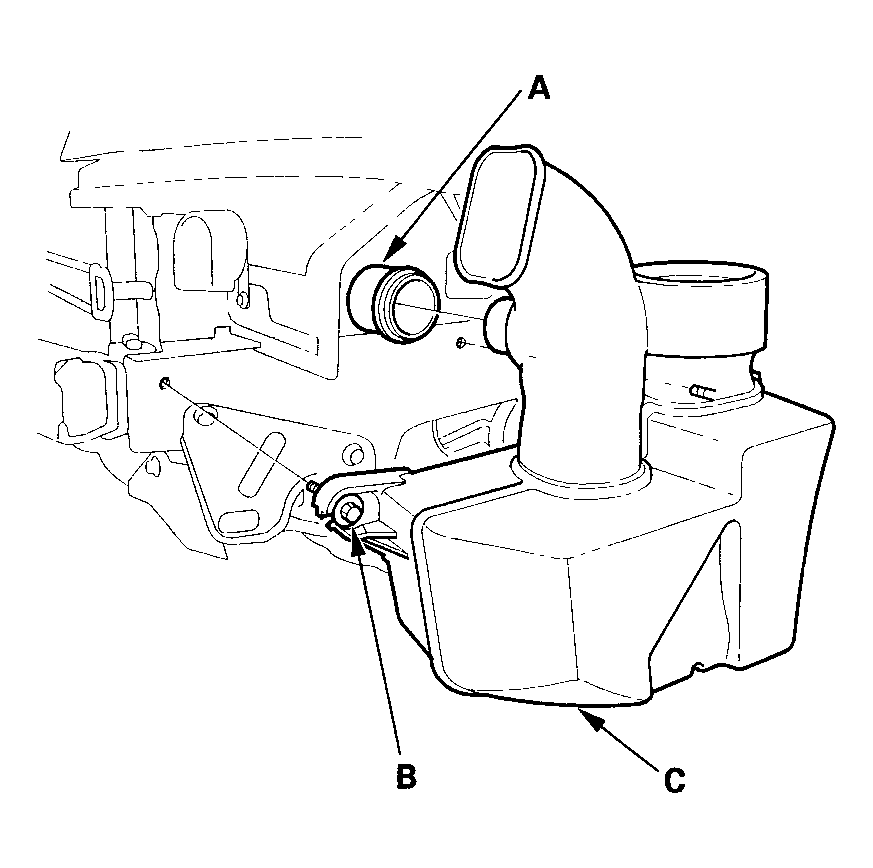

    Fig 1: Removing Side Branch Tube
    G04546203Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B).
  4. Remove the resonator (C).
  5. Install the parts in the reverse order of removal.
