Map Light

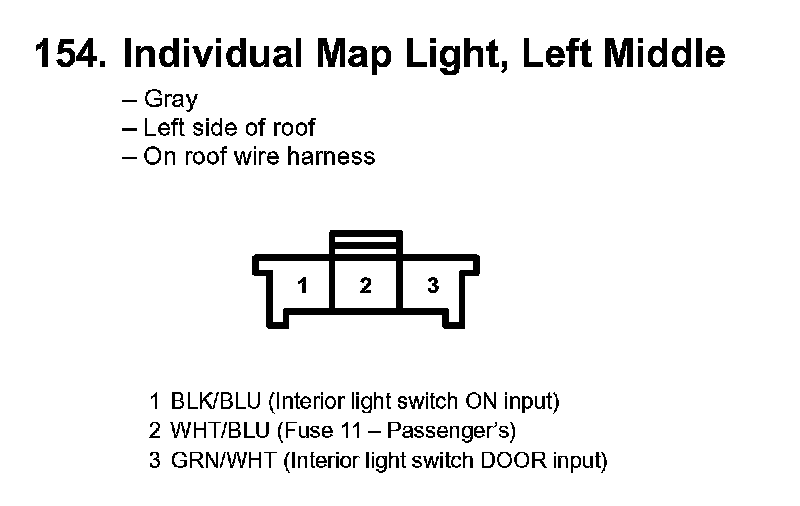

154. Individual Map Light, Left Middle:

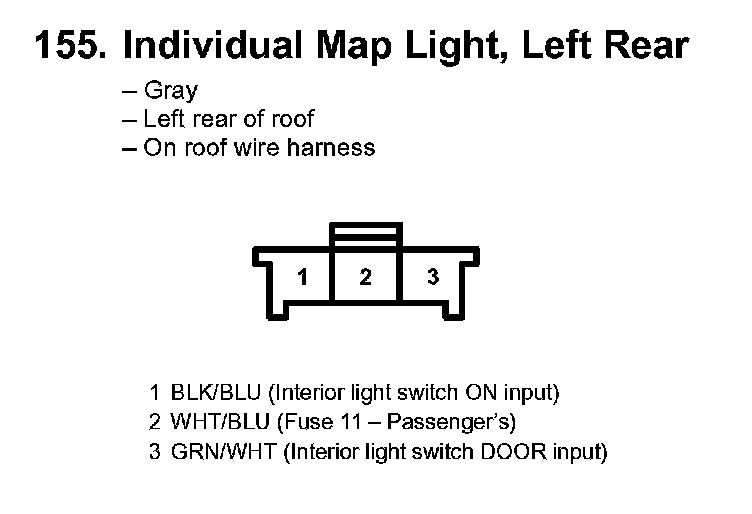

155. Individual Map Light, Left Rear:



156. Individual Map Light, Right Middle:

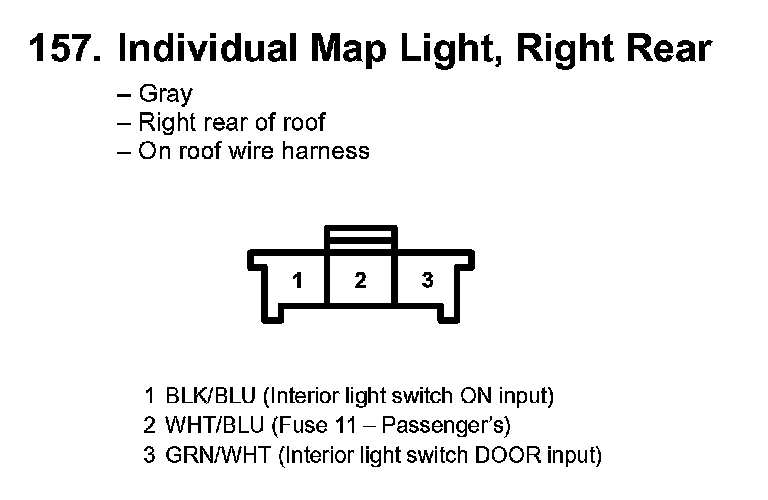

157. Individual Map Light, Right Rear:

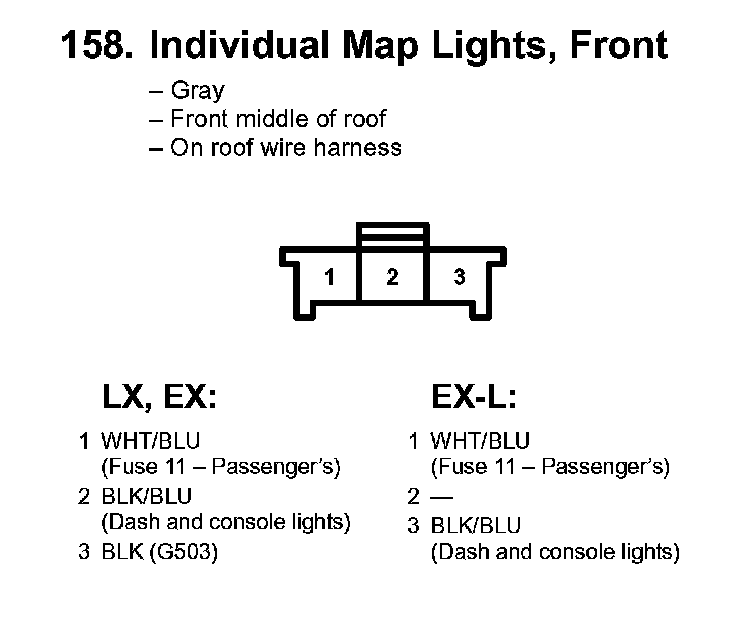

158. Individual Map Lights, Front:
