Control Module: Locations

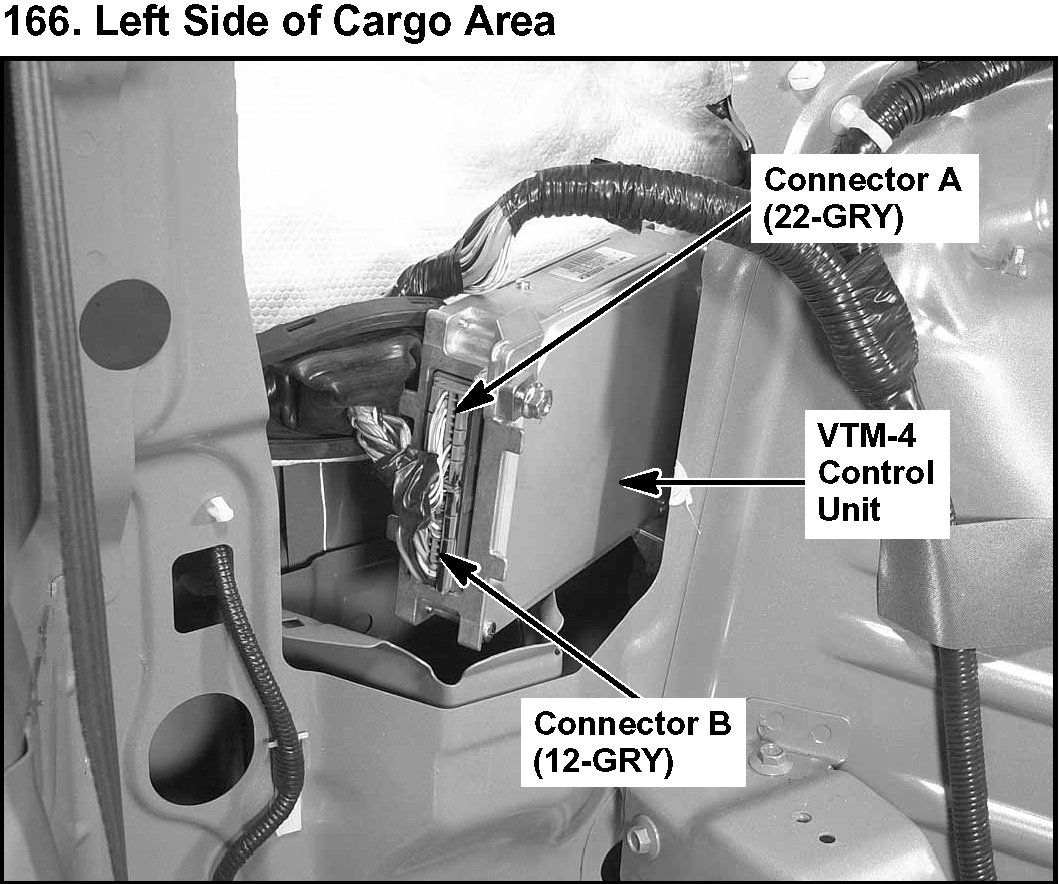

166. Left Side Of Cargo Area:

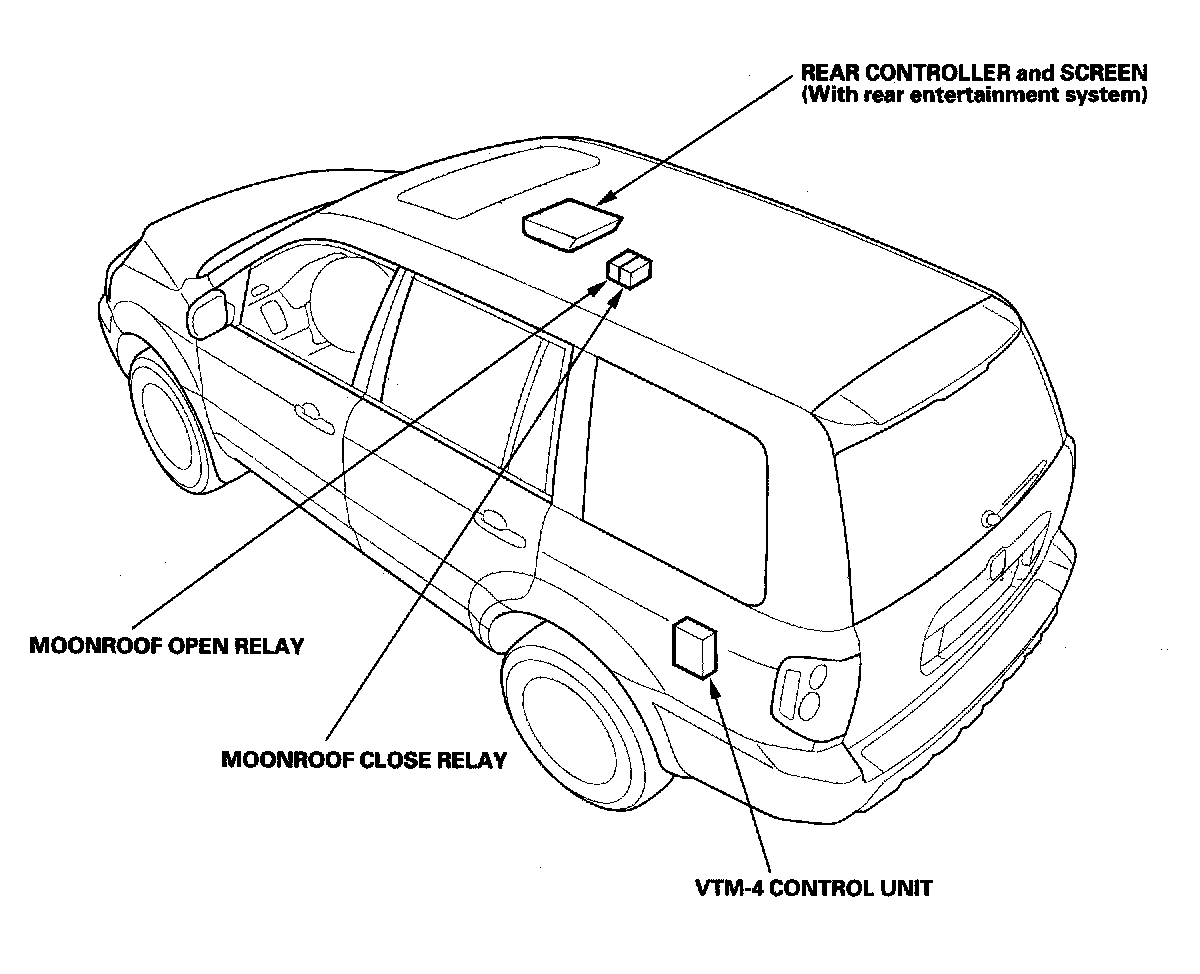

Relay And Control Unit Locations - Side Trim And Roof:
