Power Window Control Module: Locations

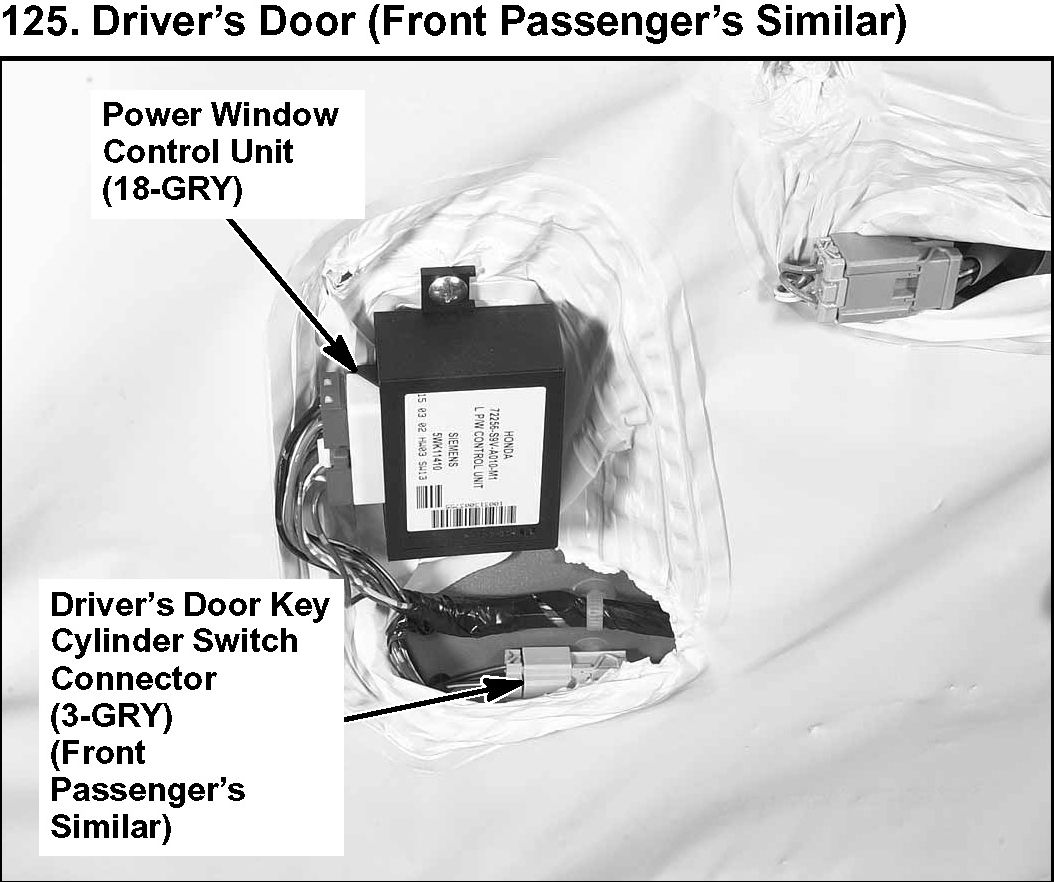

125. Driver's Door (Front Passenger's Similar):

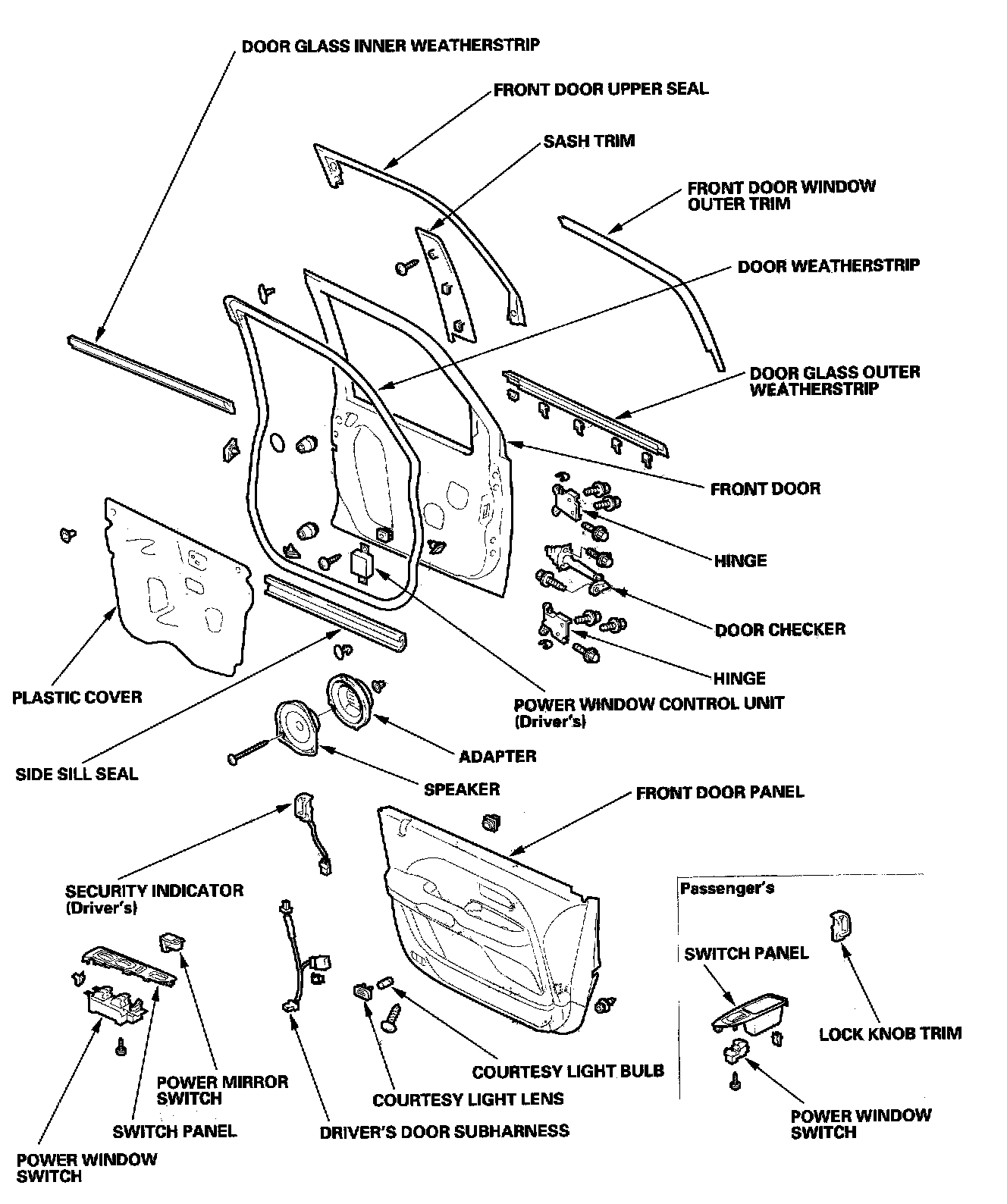

Doors - Component Location Index - Front Door:

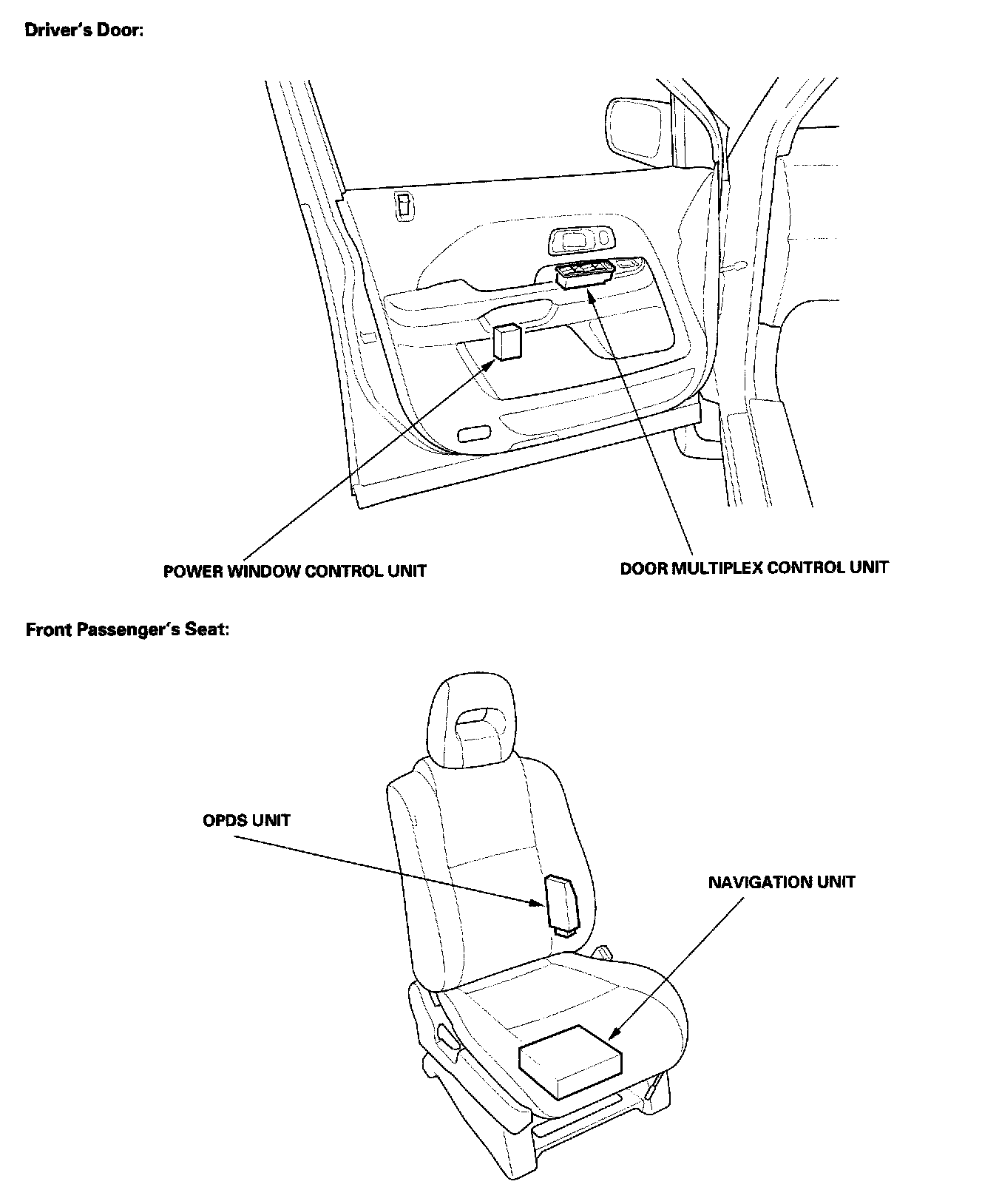

Relay And Control Unit Locations - Door And Seat:

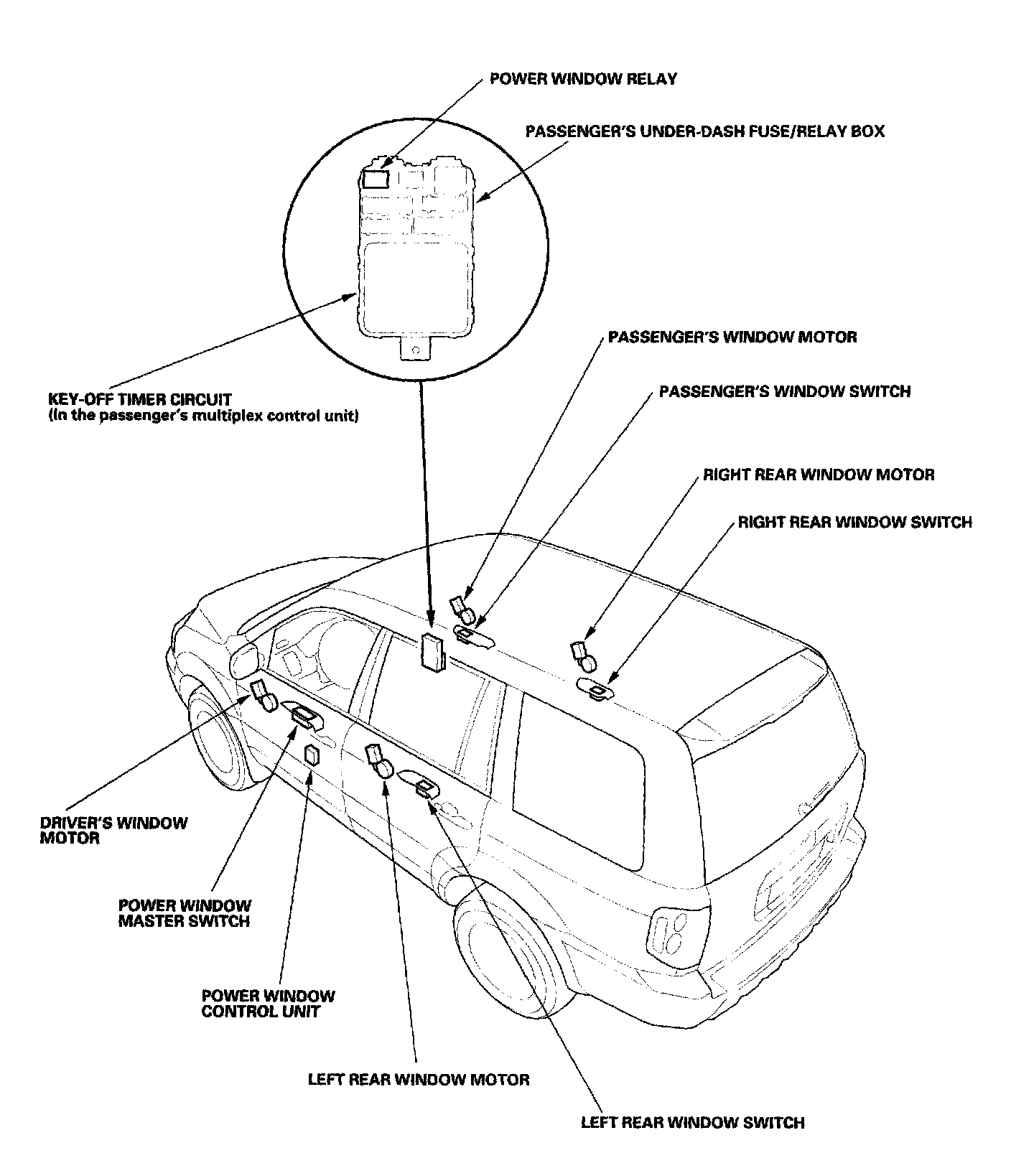

Power Windows - Component Location Index:
