Variable Valve Timing Pressure Switch: Service and Repair

Rocker Arm Oil Pressure Switch (VTEC Oil Pressure Switch) Removal/Installation

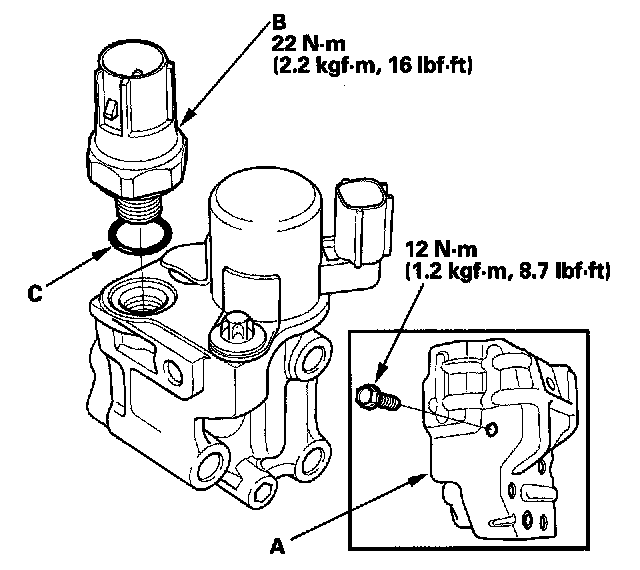

1. Remove the rocker arm oil control solenoid (VTEC solenoid valve) assembly.




2. Remove the cover (A).
3. Remove the rocker arm oil pressure switch (VTEC oil pressure switch) (B).
4. Install the switch in the reverse order of removal with a new O-ring (C).
