Cruise Control Main Switch

Cruise Control Main Switch Test/Replacement

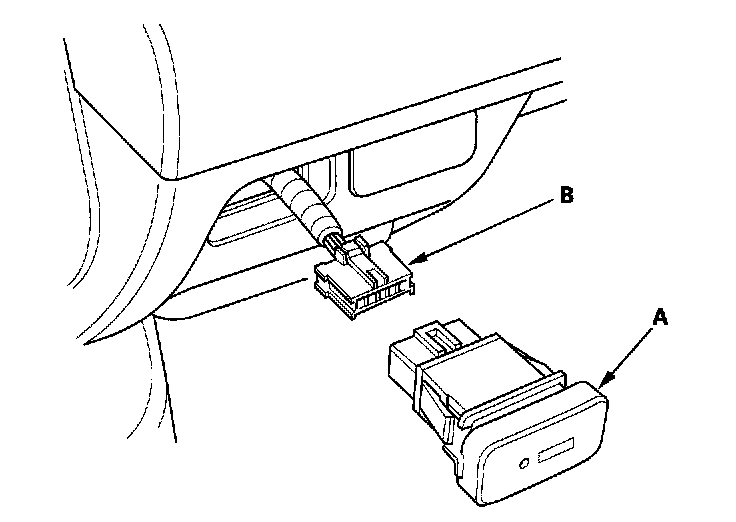

1. Release the clips of the switch and push the switch (A) out of the panel, then disconnect the 5P connector (B) from the main switch.

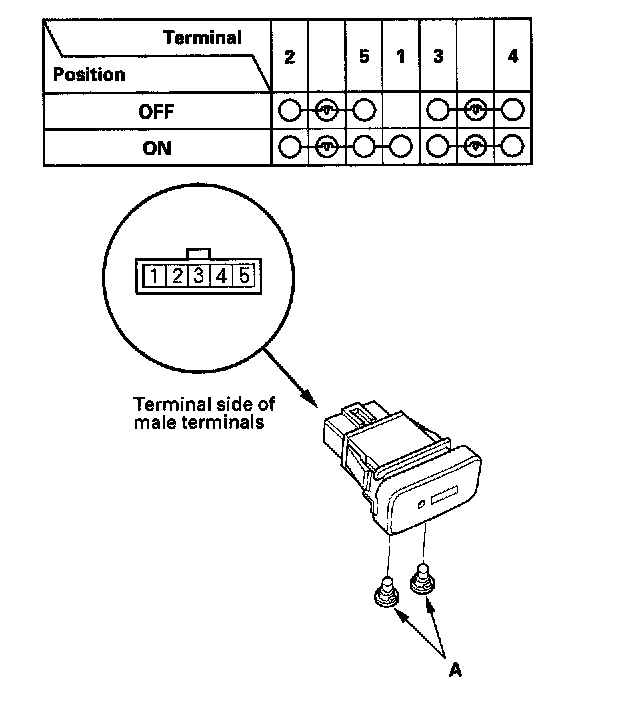

2. Check for continuity between the terminals in each switch position according to the table. If there is no continuity, replace illumination bulbs (A) or the switch.
