System Specifications

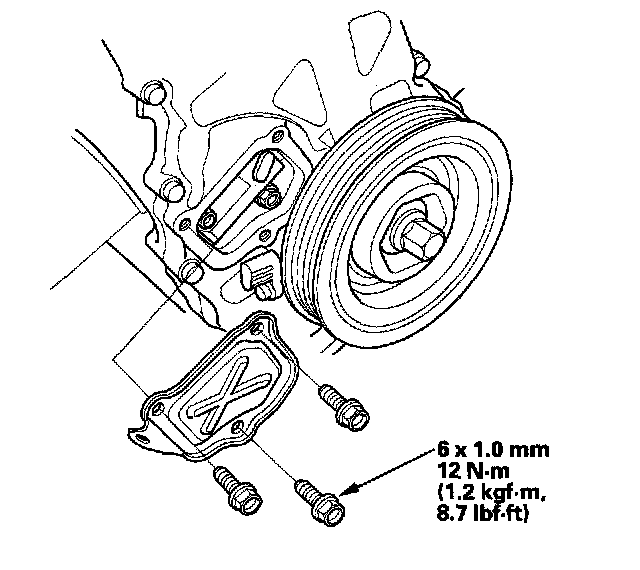

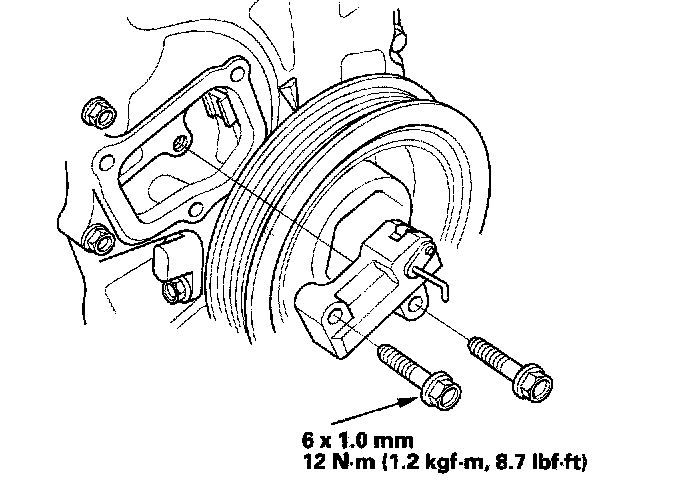

Timing Chain Tensioner and Tensioner Cover









Exhaust Camshaft Sprocket and VTC Actuator Torques






Crankshaft Pulley
For complete and accurate Crankshaft Pulley Torque data, please refer to Crankshaft Pulley Removal and Installation. Service and Repair

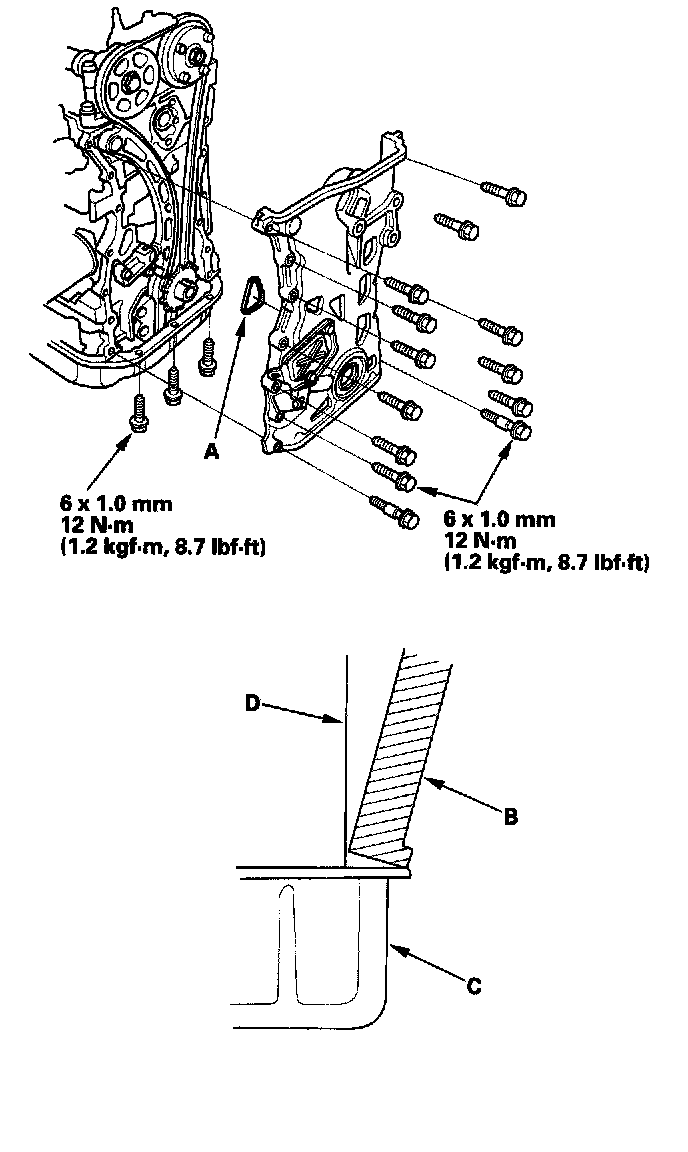

Timing Chain Case
