Output Shaft (Countershaft) Speed Sensor Replacement

  1. Disconnect the output shaft (countershaft) speed sensor connector.
  2. Remove the output shaft (countershaft) speed sensor (A).

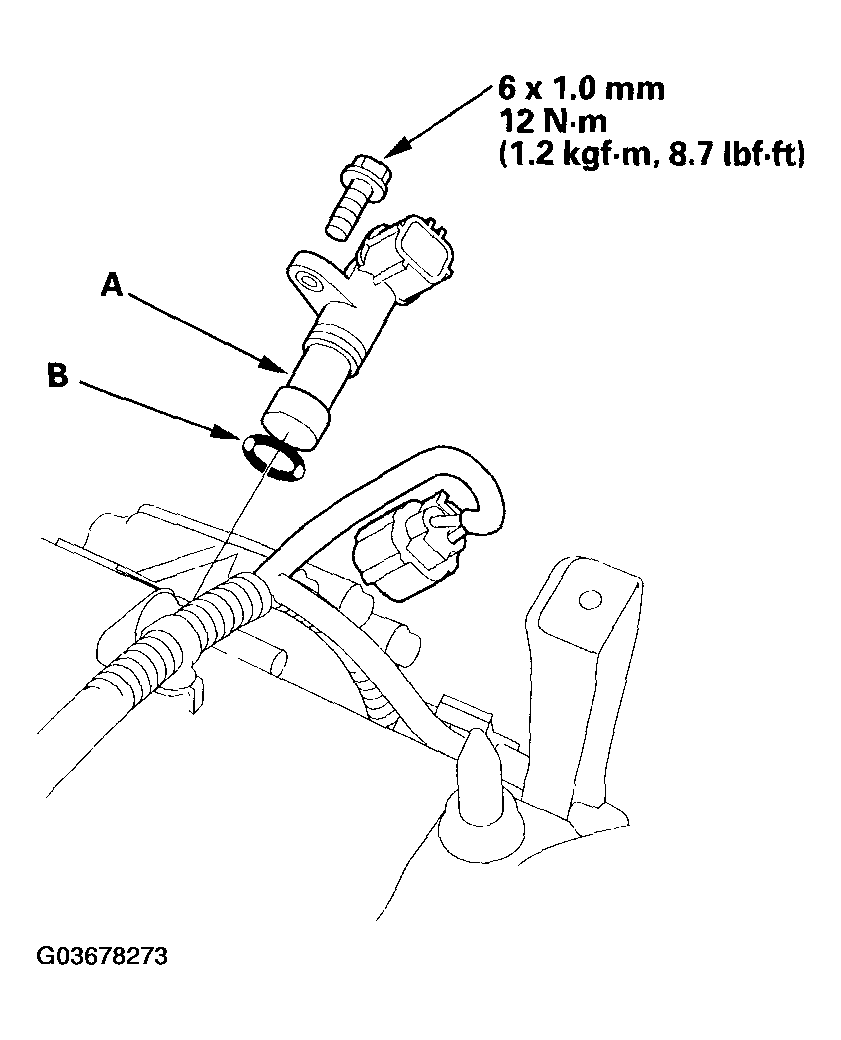

    Fig 1: Identifying Loosening Torque Of Output Shaft (Countershaft) Speed Sensor Bolt
    G03678273Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the new O-ring (B) on the output shaft (countershaft) speed sensor, and install the output shaft (countershaft) speed sensor in the transmission housing.
  4. Check the connector for rust, dirt, and oil, clean if needed, then connect the connector securely.
