Electronic Brake Control Module

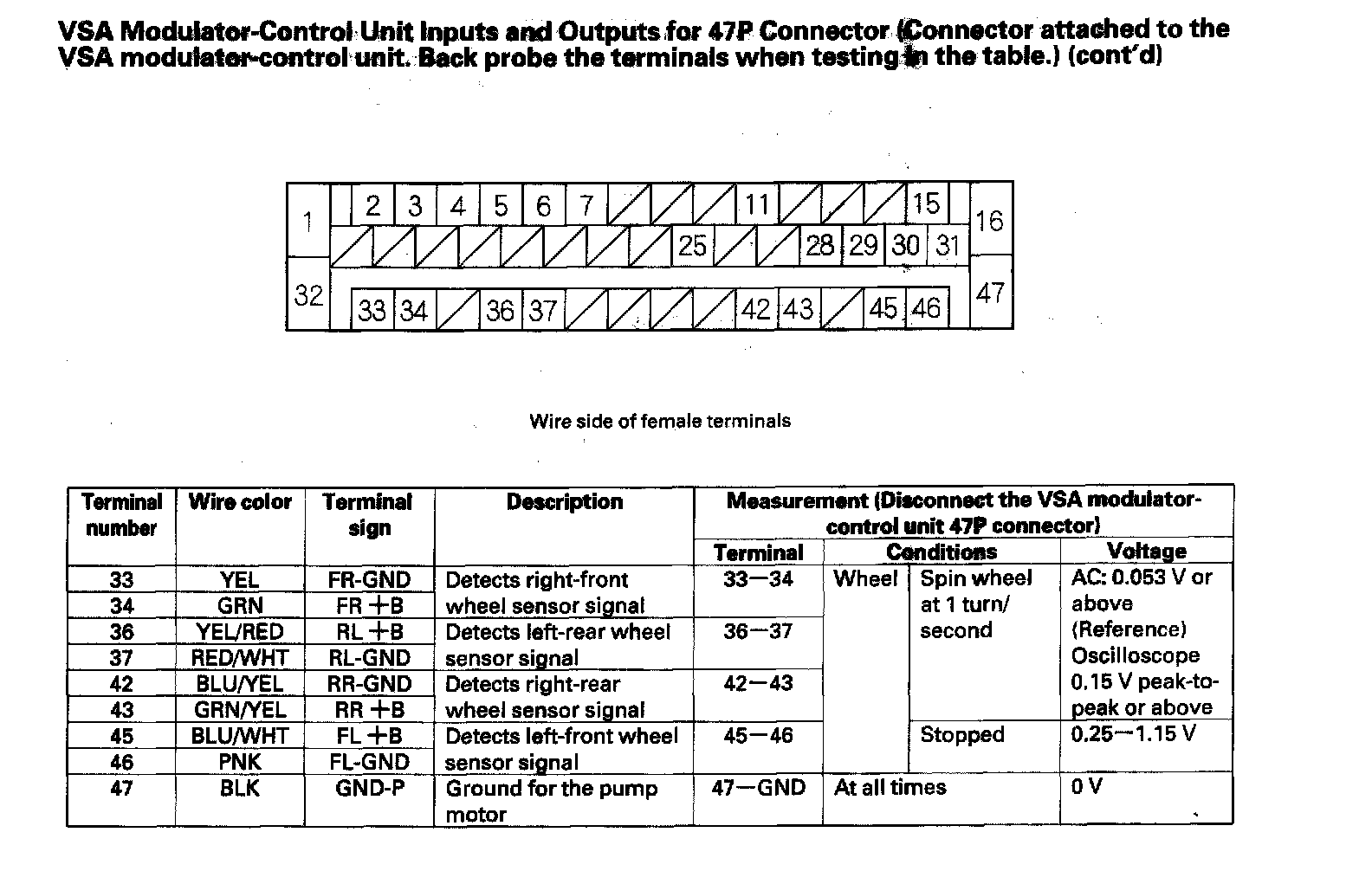

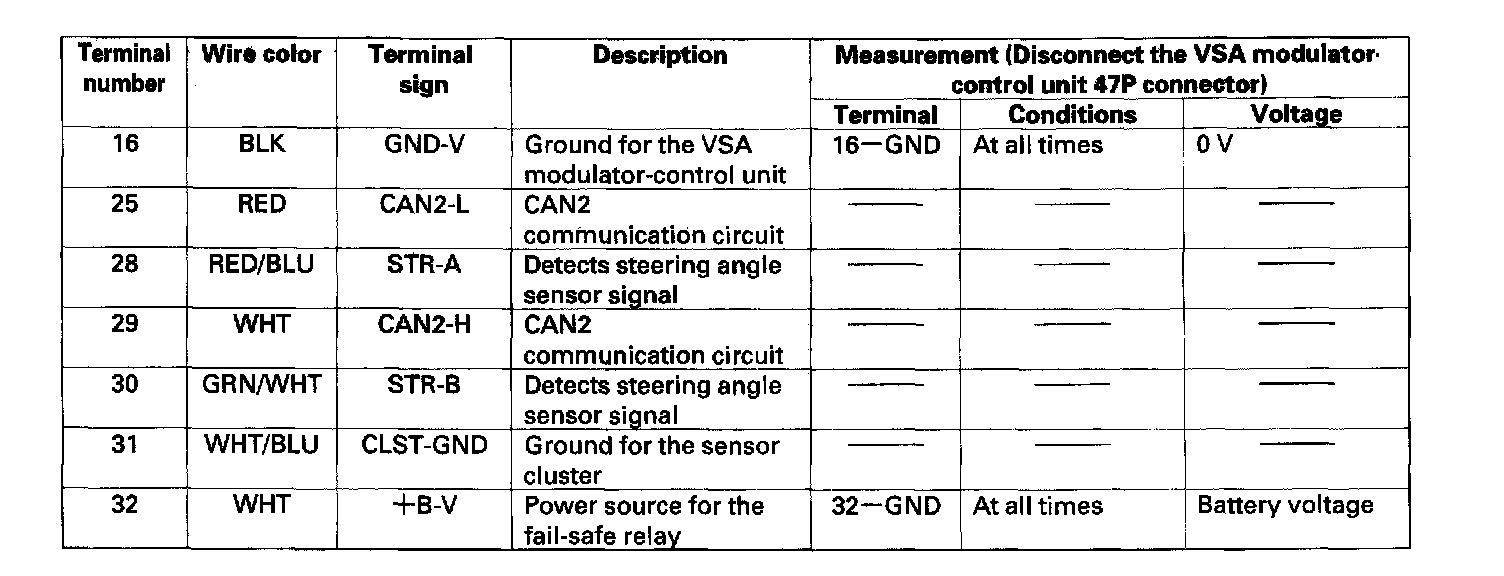

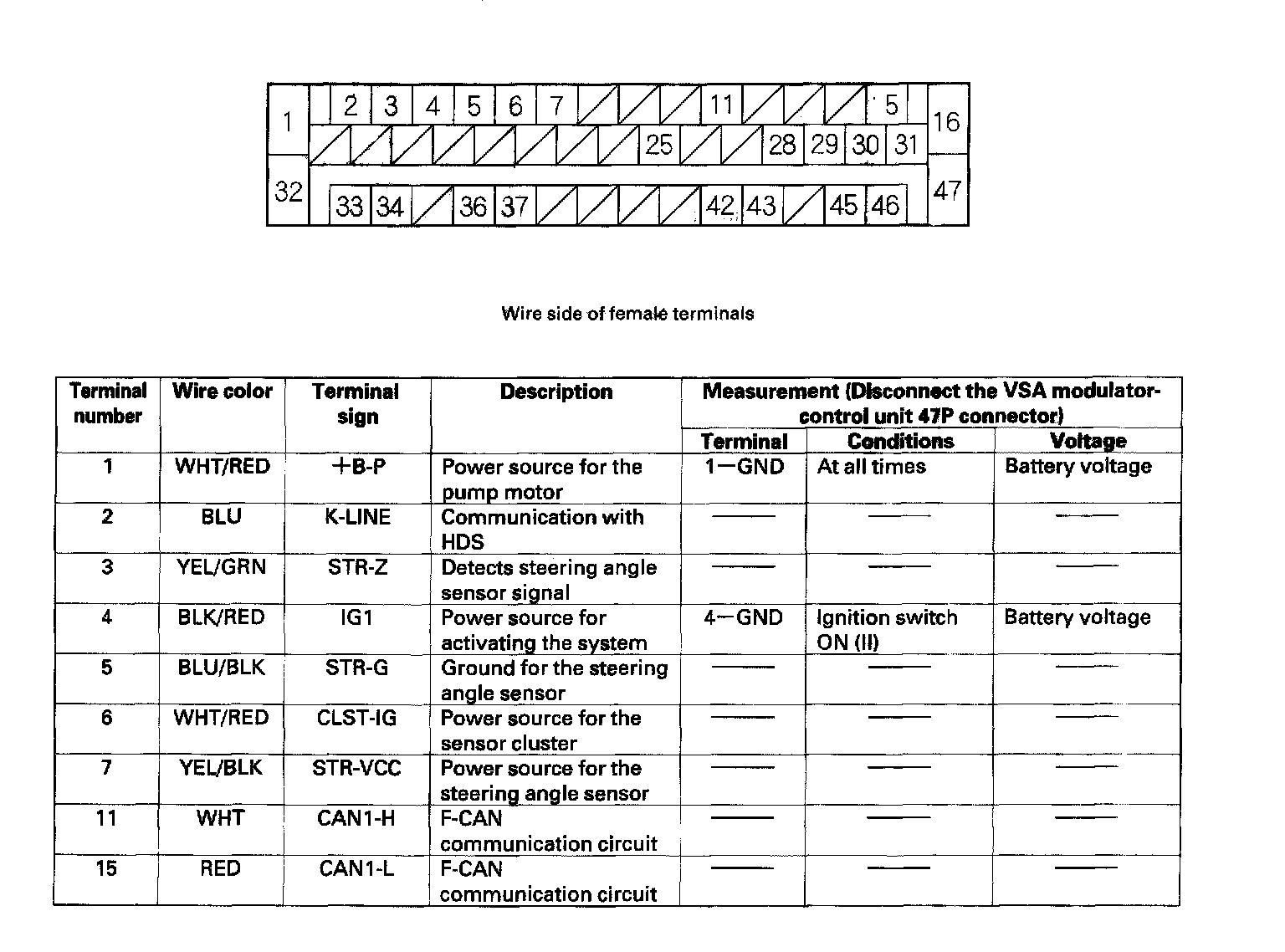

VSA Modulator-Control Unit Inputs and Outputs for 47P Connector (Connector attached to the VSA modulator control unit. Back probe the terminals when testing in the table.)
