Right Rear Power Window Switch Connector End View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Right Rear Power Window Switch Connector End View

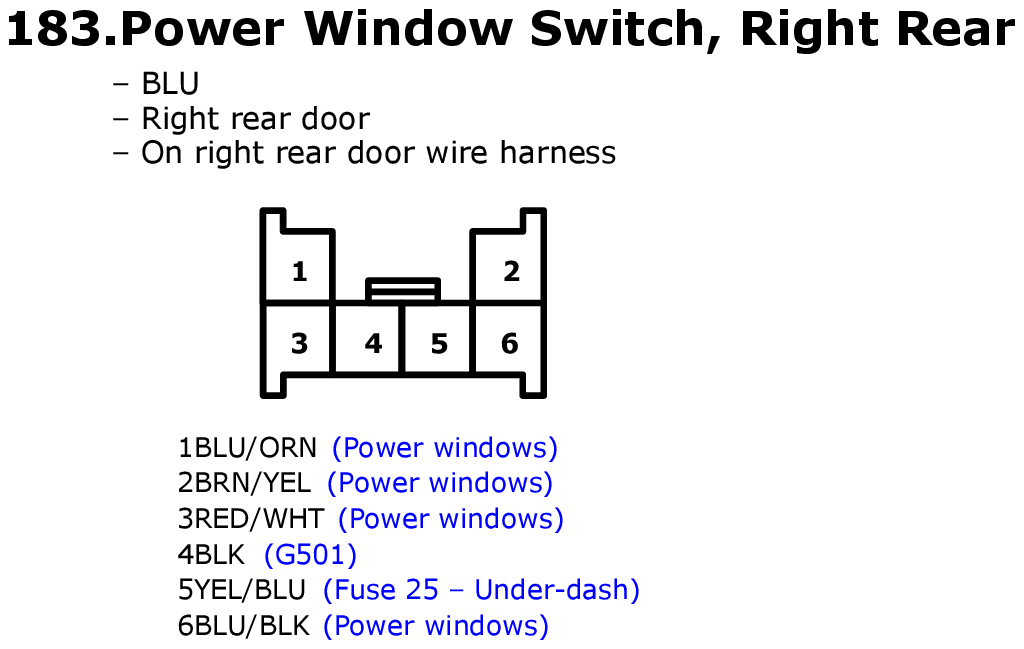

Fig 1: Right Rear Power Window Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
