Air Flow Meter/Sensor: Service and Repair

IAT Sensor Replacement

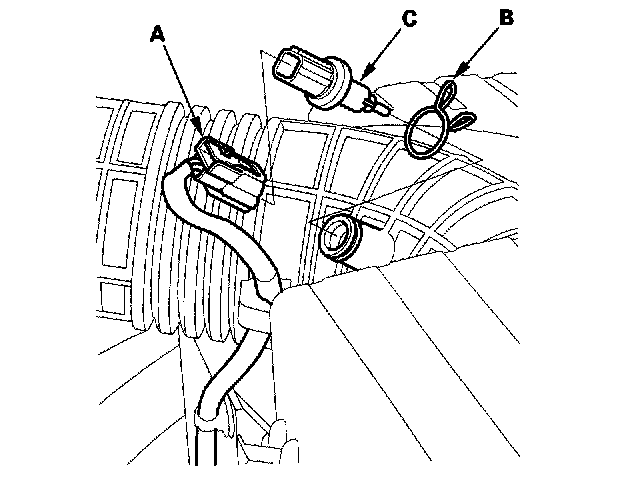

1. Disconnect the IAT sensor 2P connector (A).
2. Remove the clip (B) and the IAT sensor (C).
3. Install the sensor in the reverse order of removal.
